Self-Priming vs. Suction Lift: A Quick Guide for Pump Buyers

When selecting a centrifugal pump, two terms often create confusion: Self-Priming and Suction Lift. They sound similar, but they describe completely different things. Here’s the simplest way to understand them — and choose the right pump for your application.

1. Suction Lift: How High Can The Pump Pull Water Up?

What it means:

It's the maximum vertical distance a pump can lift water from a lower level up to the pump.

Think of it as:

How far below the pump is the water, and can the pump reach it?

Key points everyone should know:

• A pump doesn't 【pull】 water, atmospheric pressure pushes water into the pump.

• Because of natural physical limits, most centrifugal pumps can lift about 6-8 meters under normal conditions.

• If you try to lift from too deep, pressure drops and the water can form vapor bubbles.

This leads to cavitation, which can damage the pump.

What affects the real suction lift in practice:

• water temperature

• viscosity or liquid type

• suction pipe length & friction

• any air leaks in the pipeline

In short:

Suction Lift = The limit.

How high the pump can lift water from below.

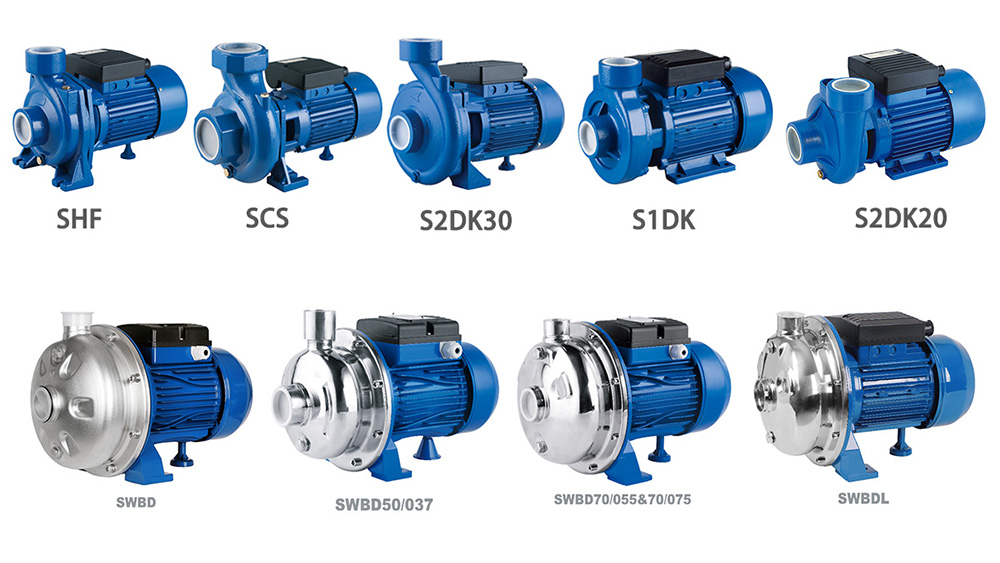

Note: Most of the centrifugal pumps offered by Stream Pumps can lift water to 8m theoretically.

2. Self-Priming: How Does a Pump Start by Itself?

What it means:

A self-priming pump can clear the air in the suction pipe by itself, so you won’t need to fill the pump with water before every start.

Think of it as:

Do I want a pump that can start instantly without manual priming?

How it works:

• The pump keeps some water inside its chamber.

• On startup, it mixes this water with air and expels the air.

• Once the air is gone, it creates the vacuum needed to lift water.

Why it matters:

It makes operation much easier, especially for systems that stop and start often.

Important:

A self-priming pump still follows the same suction lift limit (usually 6-8 meters).

Self-priming makes starting easy-not lifting deeper.

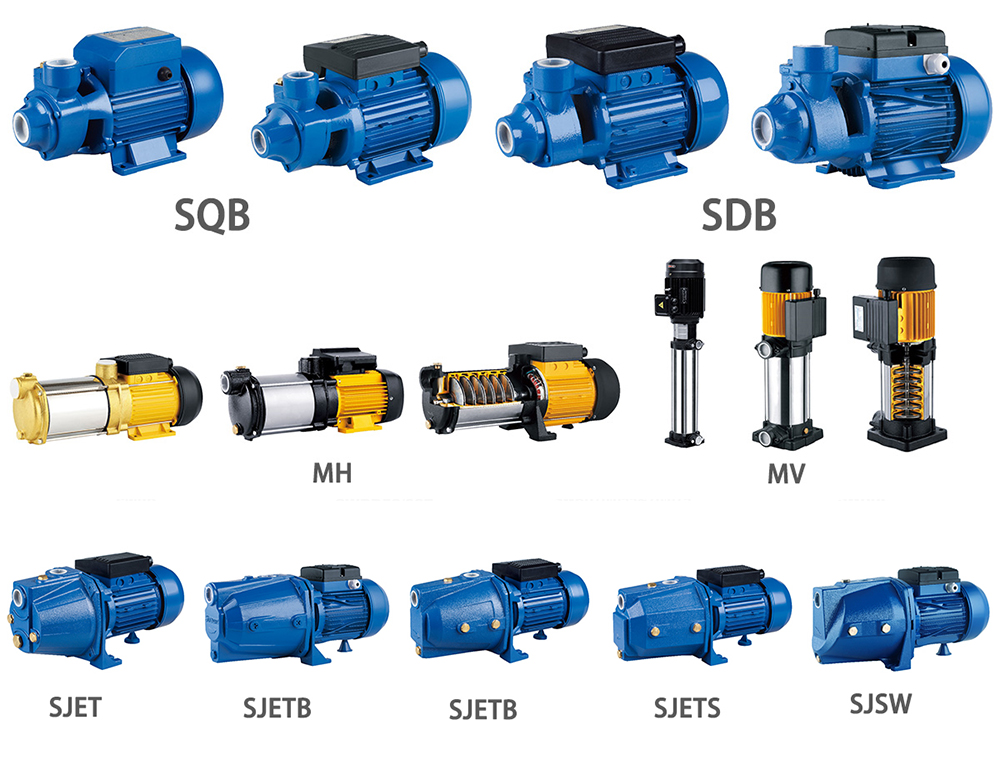

Note: Peripheral pumps, SJET pumps and MH centrifugal pumps from Stream Pumps can offer self priming ability by 8m.

3. Your Quick Pump Selection Guide

Use this checklist for fast, confident pump selection:

The Golden Rule

Self-Priming = A feature (how the pump starts).

Suction Lift = A limit (how high it can lift water).

A self-priming pump makes your work easier, but it cannot exceed the natural 6–8 m suction lift limit.

By understanding these two simple terms, you can confidently select the right pump for your job.
