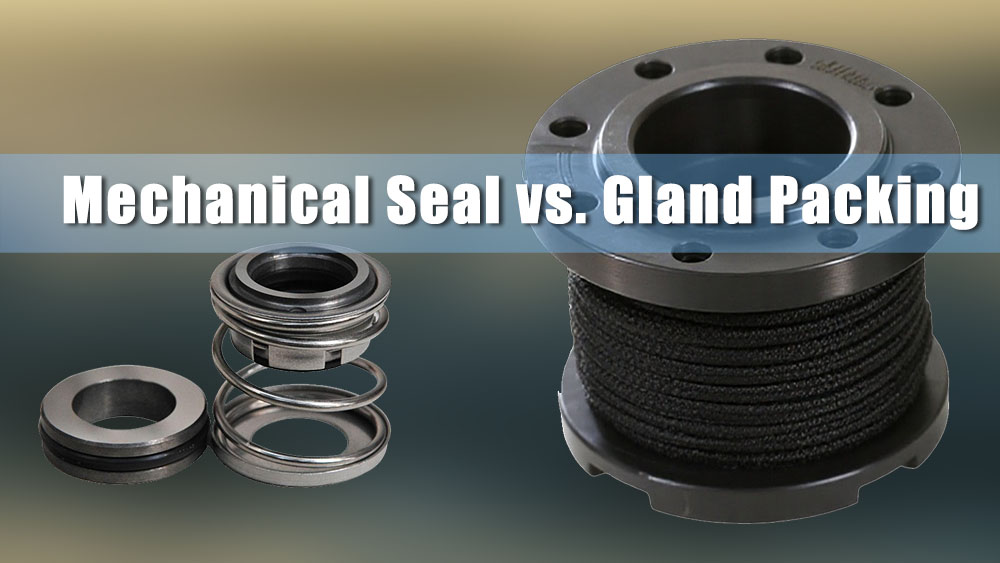

Pump Shaft Sealing Explained: Mechanical Seal vs. Gland Packing

Sealing pump shafts is more than just a technical necessity—it's critical for maintaining efficiency, controlling leakage, and protecting the entire system. Without proper sealing, pumps can fail due to fluid escape, excessive friction, and wear and tear. Two of the most commonly used methods for pump shaft sealing are mechanical seals and gland packing, but choosing the right one depends heavily on your specific application and operational needs.

This guide dives into the basics of each sealing method, their advantages, limitations, and key differences. By the end, you'll have a clear understanding of how to match the method to your pump system for optimum performance.

What Is Pump Shaft Sealing?

Pump shaft sealing is designed to prevent the leakage of liquids along the rotating shaft of a pump. Since these shafts move at high speed and interact with a wide variety of fluids—often under high pressure and temperature—effective sealing is essential to ensure reliable, efficient operation.

Challenges in Shaft Sealing

Some of the most common challenges in pump shaft sealing include:

• Pressure Variability: High-pressure environments make sealing more complex.

• Temperature Extremes: Hot or cold fluids require materials that can maintain integrity under stress.

• Abrasive Fluids: Some fluids contain solids or particles that wear out seals over time.

• Wear and Tear: Constant rotation creates friction, leading to gradual material degradation.

Two primary solutions exist to handle these challenges—mechanical seals and gland packing. Here's how they compare.

Mechanical Seal Basics

A mechanical seal forms a tight seal between a pump's stationary and rotating components by using a pair of tightly mated surfaces. One surface is stationary, and the other rotates with the shaft, creating a seal that prevents leakage even under difficult operating conditions.

Key Components

1. Seal Faces: The core sealing surfaces, usually made of materials like carbon, ceramic, or silicon carbide.

2. Secondary Seals: O-rings or gaskets that provide a barrier around various components.

3. Spring Systems: These apply force to keep the sealing faces together, ensuring consistent performance.

Common Types

• Single Mechanical Seals: Best for moderate pressures and non-hazardous fluids.

• Double Mechanical Seals: Used in applications involving toxic or high-pressure fluids.

• Cartridge Mechanical Seals: Pre-assembled units that simplify installation and reduce chances of alignment errors.

Typical Applications

Mechanical seals excel under demanding conditions:

• High-pressure systems.

• Clean liquids that require minimal contamination.

• Hazardous fluids that must not leak into the surrounding environment.

Gland Packing Basics

Gland packing uses braided, rope-like material that is compressed around the shaft to form a seal. This older method remains widely used in industries with heavy-duty or abrasive applications.

Components of Gland Packing

1. Packing Material: Common materials include PTFE (Teflon), graphite, and flax, selected based on the fluid being pumped.

2. Packing Gland and Follower Plate: These components apply compression to hold the packing material tightly in place.

Typical Applications

Gland packing works effectively in systems where:

• Operating pressures are low to moderate.

• Abrasive or slurry-type fluids are pumped.

• Budget constraints favor a lower upfront cost.

Key Differences Between Mechanical Seals and Gland Packing

Choosing between mechanical seals and gland packing requires a clear understanding of their performance attributes:

Leakage Control

• Mechanical Seal: Achieves near-zero leakage, ensuring a tight and clean operation. This is especially critical for hazardous or expensive fluids.

• Gland Packing: Allows controlled leakage to lubricate the packing material and shaft, which can lead to fluid loss and a less pristine environment.

Maintenance Needs

• Mechanical Seal: Requires less frequent maintenance, though installation and replacement are typically more complex.

• Gland Packing: Requires regular adjustments and monitoring to maintain proper compression and prevent excessive leakage.

Energy Efficiency

• Mechanical Seal: Causes minimal friction between the stationary and rotating parts, improving energy efficiency and reducing wear on the pump components.

• Gland Packing: Creates higher shaft drag due to tighter compression, resulting in greater energy losses over time.

Cost Considerations

• Mechanical Seal: Higher upfront cost but longer service life and lower operating costs.

• Gland Packing: Lower initial cost but requires more frequent replacements and adjustments.

Operating Conditions

• Mechanical Seal: Ideal for high-speed, high-pressure systems or when handling clean and hazardous liquids.

• Gland Packing: Thrives in abrasive or dirty environments where robust systems are needed, despite the potential for leakage.

Advantages of Mechanical Seals

Mechanical seals are often the preferred choice for modern operations, and for good reason:

• Minimal Leakage: Helps maintain a clean and safe workspace.

• Lower Wear on Components: Protects the shaft sleeve from significant damage.

• Hazardous Fluid Capability: Ensures airtight sealing for dangerous chemicals or volatile substances.

Advantages of Gland Packing

Gland packing remains a cost-effective, simple solution, especially in less demanding conditions:

• Ease of Installation: Can be installed and adjusted without specialized tools.

• Lower Initial Expense: Costs significantly less than mechanical seals upfront.

• Durability in Abrasive Media: Handles thick, dirty, and particle-laden liquids better than many mechanical seals.

Limitations of Each Method

No method is perfect, and understanding limitations is key to successful implementation:

• Mechanical Seal: Sensitive to incorrect installation and higher purchase costs.

• Gland Packing: Consumes more energy and requires regular maintenance to avoid inefficiencies.

How to Choose the Right Sealing Method

Selecting the right sealing method depends on your specific requirements. Consider these factors:

• Fluid Type: Clean and hazardous fluids favor mechanical seals, while dirty or abrasive fluids suit gland packing.

• Operating Conditions: High-pressure and high-temperature systems require mechanical seals for longevity and efficiency.

• Maintenance Capabilities: Facilities with limited maintenance resources may benefit from the longevity of mechanical seals.

• Budget: For budget-constrained systems, gland packing offers an economical entry point.

Industry-Specific Considerations

Certain industries, like chemical processing, require the near-zero leakage of mechanical seals, while industries handling abrasive slurries, such as mining, often rely on gland packing due to its robustness.

Conclusion

When it comes to pump shaft sealing, both mechanical seals and gland packing offer unique advantages and trade-offs. Mechanical seals are the go-to choice for high-performance, energy-efficient systems that demand minimal leakage. On the other hand, gland packing excels in rugged applications where simplicity and cost-effectiveness are top priorities.

By evaluating the factors of leakage control, maintenance requirements, operating conditions, and budget, you can confidently choose the sealing method that aligns with your needs and operational goals.
