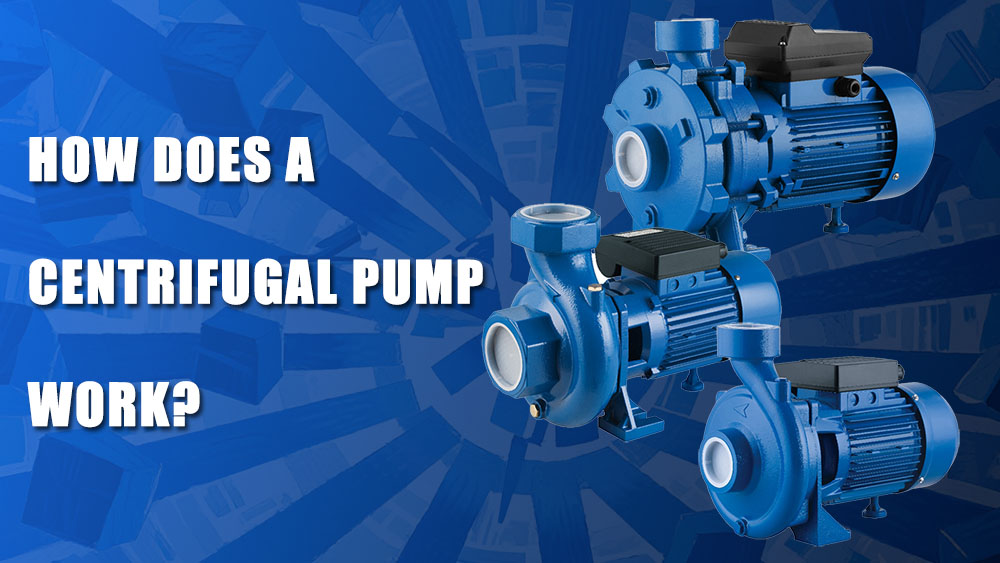

How Does a Centrifugal Pump Work? A Complete Guide for Beginners

Centrifugal pumps play a critical role in moving liquids efficiently across industries and households. Known for their reliability and simplicity, these pumps are among the most commonly used types worldwide. From supplying water to residential buildings to handling industrial processes, centrifugal pumps have widespread applications, making them essential in modern infrastructure. But how exactly do they work? Let's break it down step by step.

What Is a Centrifugal Pump?

A centrifugal pump is a type of dynamic, non-positive displacement pump that uses rotational energy to move fluids. It works by converting energy from a motor (usually electric) into the kinetic energy needed to transport liquids. This energy transition is made possible through its core components, including:

• Impeller – The rotating part that accelerates the liquid.

• Pump casing – Houses the impeller and directs fluid flow.

• Shaft – Links the impeller to the motor.

• Motor – Provides the rotational force to drive the pump.

By leveraging these components, centrifugal pumps can ensure a continuous and steady flow of liquids, making them suitable for various applications.

The Basic Working Principle

The operation of a centrifugal pump revolves around the science of centrifugal force. Here's a simple explanation of the process:

• Energy Transfer

When the pump begins operating, an electric motor rotates the impeller at high speeds. This impeller consists of curved vanes that create motion.

• Fluid Acceleration

Liquid enters the center (or eye ) of the impeller. As the impeller spins, the rotational motion accelerates the liquid outward, increasing its velocity.

• Pressure Conversion

The high-velocity liquid moves into the pump casing—often designed as a volute or diffuser—where the speed slows down. This reduction in velocity helps convert kinetic energy into pressure.

• Final Discharge

The pressurized liquid exits the pump through the discharge port, ready for its intended use.

This continuous energy conversion and movement work seamlessly to deliver liquids with increased pressure, making centrifugal pumps both effective and efficient.

Key Components and Their Functions

Understanding the critical parts of a centrifugal pump can demystify its operation. Here's a breakdown of its main components and their jobs:

• Impeller

The heart of the pump, the impeller is a rotating element that transfers energy to the liquid, converting the motor's rotational energy into kinetic energy.

• Pump Casing (Volute or Diffuser)

The casing surrounds the impeller and controls the fluid's movement. It slows down the high-velocity liquid, increasing its pressure.

• Suction and Discharge Ports

These openings allow fluid to enter and exit the pump. The suction port draws in the liquid, while the discharge port releases it under higher pressure.

• Shaft and Bearings

The shaft connects the impeller to the motor and facilitates rotation. Bearings ensure minimal friction during motion, improving efficiency.

• Mechanical Seal or Packing (Optional)

These components prevent fluid leakage from the pump casing, ensuring smooth operation over time.

Step-by-Step Pump Operation

To better understand centrifugal pump functionality, here's a step-by-step guide to its operation:

• Priming the Pump (if not self-priming)

To begin, any air within the pump must be removed so that the liquid can fill the casing. Most centrifugal pumps require priming to function correctly.

• Creating Suction

With the pump primed, the motor-driven impeller pulls liquid into the suction port.

• Accelerating the Liquid

The impeller spins the liquid outward, accelerating its movement.

• Building Pressure

The pump casing slows the velocity of the liquid, leading to a buildup of pressure.

• Discharging the Liquid

 Finally, the pressurized liquid is discharged through the pump's outlet, ready for use in the system.

Common Applications of Centrifugal Pumps

Thanks to their versatility, centrifugal pumps are used in a vast range of applications. Some of the most common include:

• Domestic Water Supply

Boosting water pressure for household fixtures.

• Agricultural Irrigation

Delivering water to fields and crops efficiently.

• Industrial Fluid Transfer

Transporting liquids in chemical, manufacturing, and oil industries.

• HVAC Systems

Circulating water in heating, ventilation, and air conditioning solutions.

• Drainage and Dewatering

Removing water from flooded areas, basements, or construction sites.

Pros and Cons of Centrifugal Pumps

Understanding the advantages and limitations of centrifugal pumps is essential for choosing the right one for your needs.

Pros

• Simple design and easy to operate.

• Cost-effective and widely available.

• Low maintenance requirements.

• Suitable for providing a continuous and steady flow.

Cons

• Most centrifugal pumps are not self-priming and need manual priming or additional equipment.

• Efficiency decreases at low flow rates.

• Sensitive to air presence in the system and cavitation (vapor bubbles forming within the pump).

Types of Centrifugal Pumps

Centrifugal pumps come in various designs, each suited for specific purposes. Here are the main types:

1. Single-Stage vs. Multistage

• Single-Stage: Features one impeller; ideal for low-pressure applications like domestic water supply.

• Multistage: Contains multiple impellers; suitable for high-pressure tasks, such as boiler feed.

2. Horizontal vs. Vertical

• Horizontal Pumps: These are placed parallel to the ground and are easier to maintain. Commonly used in industrial applications.

• Vertical Pumps: Mounted upright, they save space and are suitable for deep wells or limited installation areas.

3. Other Designs

• End Suction: Compact and easy to install.

• Inline: Perfect for HVAC systems, where space is limited.

• Split Case: Known for higher efficiency and durability in large-scale operations.

Tips for Beginners

Here's what beginners should consider when purchasing or operating a centrifugal pump:

Choose the Right Pump

Evaluate the required flow rate, head (height the pump must lift the liquid), and the type of liquid (e.g., clear water or slurry).

Pay Attention to NPSH

Ensure the pump has adequate Net Positive Suction Head (NPSH) to avoid cavitation and performance issues.

Perform Regular Maintenance

Check seals, lubricate bearings, and clean pump parts to ensure optimal efficiency and longevity.

Conclusion

Centrifugal pumps are powerful tools that utilize rotating impellers to move liquids efficiently. Their simple design, reliability, and broad range of applications make them a go-to choice for both domestic and industrial uses. Whether you need to boost water pressure in your home or handle the movement of fluids in an industrial plant, these pumps provide a versatile and cost-effective solution.
