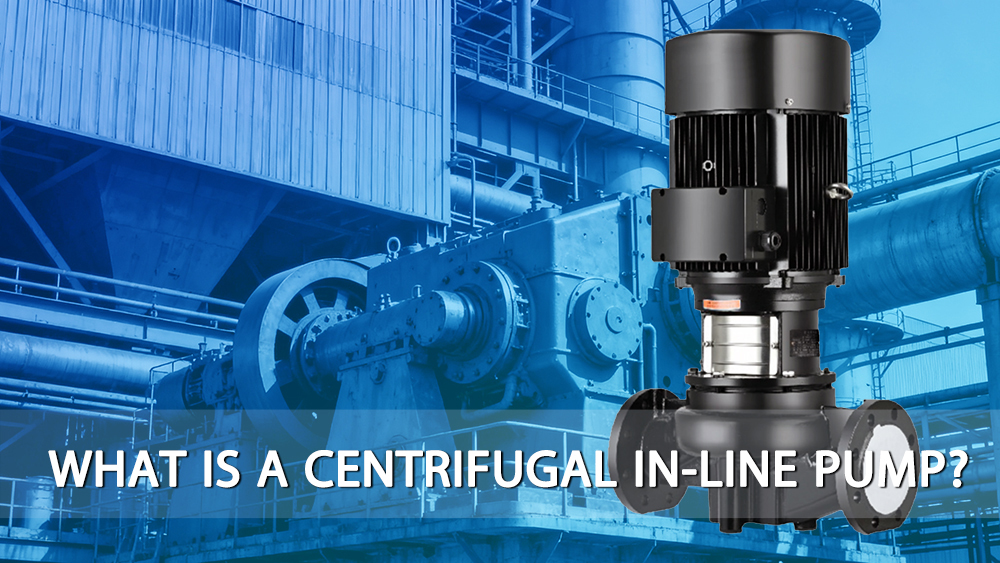

What Is a Centrifugal In-line Pump?

Working Principle, Features, and Applications Explained

In modern water systems, centrifugal in-line pumps (also known as vertical pipeline pumps) play an essential role in circulating, transferring, and boosting clean water or light liquids. Their compact design, ease of installation, and high efficiency make them a popular choice for HVAC systems, water supply networks, and industrial circulation systems.

This guide explains how in-line centrifugal pumps work, their main advantages, and the key points to consider when selecting and installing one.

1. What Is a Centrifugal In-Line Pump?

A centrifugal inline pump is a type of centrifugal pump whose inlet and outlet are positioned on the same centerline, allowing liquid to flow straight through the pump casing without a change in direction.

Most in-line pumps adopt a vertical motor and direct-coupled design, which simplifies the pipeline layout and minimizes installation space.

Main Components:

• Motor: Provides rotational power to the impeller.

• Pump casing: Contains and directs liquid under pressure.

• Impeller: Converts mechanical energy into fluid energy.

• Mechanical seal: Prevents leakage along the shaft.

• Support base or bracket: Stabilizes the entire structure.

2. Working Principle

The in-line centrifugal pump operates by converting the mechanical energy of the motor into hydraulic energy through the impeller.

When the motor drives the impeller, liquid enters the center (eye) of the impeller, is accelerated outward by centrifugal force, and exits through the discharge port at higher pressure.
Because the suction and discharge ports are aligned, the fluid path is straight and smooth, reducing energy losses and improving efficiency.

3. Key Features and Benefits

4. Common Applications

Centrifugal in-line pumps are widely used across commercial, residential, and industrial systems:

HVAC Circulation Systems
– Chilled water, hot water, and cooling tower circulation.

Building Water Supply
– Booster systems for apartments, offices, and hotels.

Firefighting Systems
– Stable pressure for fire suppression pipelines.

Agricultural Irrigation

– Water transfer and sprinkler systems.

Industrial Process Water
– Cooling, washing, and boiler feed applications.

Water Treatment Systems

– Used in filtration, reverse osmosis, and wastewater recycling.

5. Selection Guide

When choosing the right in-line centrifugal pump, consider the following parameters:

6. Installation & Maintenance Tips

To ensure reliable operation and long service life, follow these guidelines:

Installation

• Ensure the pump and pipeline are perfectly aligned to prevent stress on the casing.

• Install independent pipe supports; do not let the pump bear pipe weight.

• Fit a strainer or check valve at the suction side to prevent debris entry.

• Always fill the pump with liquid before starting to avoid dry running.

Maintenance

• Regularly check for seal leakage or abnormal noise.

• Keep the motor well-ventilated and clean.

• Inspect bolts and base supports for looseness.

• If stored long-term, drain water and apply anti-rust protection

7. Comparison with Other Centrifugal Pumps

8. Frequently Asked Questions

Q1: Can an in-line pump handle wastewater or solids?
A1: No. It is designed for clean or lightly contaminated liquids. For sewage or slurry, use a submersible or grinder pump.

Q2: Why is an in-line pump ideal for HVAC systems?
A2: Its vertical structure and in-line connection save mechanical room space and simplify piping for hot or chilled water loops.

Q3: Can it be installed horizontally?
A3: Some models allow horizontal installation, but proper bearing alignment and air venting are necessary.

Conclusion

The centrifugal in-line pump is a smart, space-saving, and efficient solution for modern water circulation and supply systems.
With features like direct pipeline connection, stable operation, and easy maintenance, it has become one of the most popular HVAC and building service pumps today.
