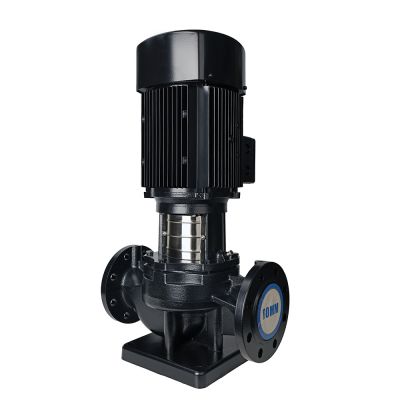

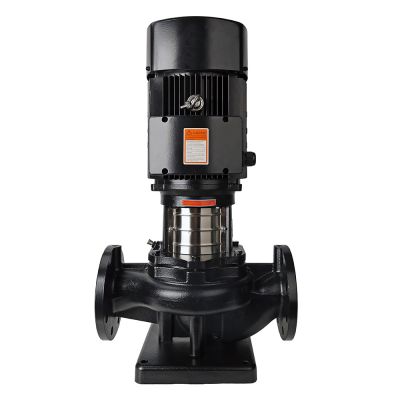

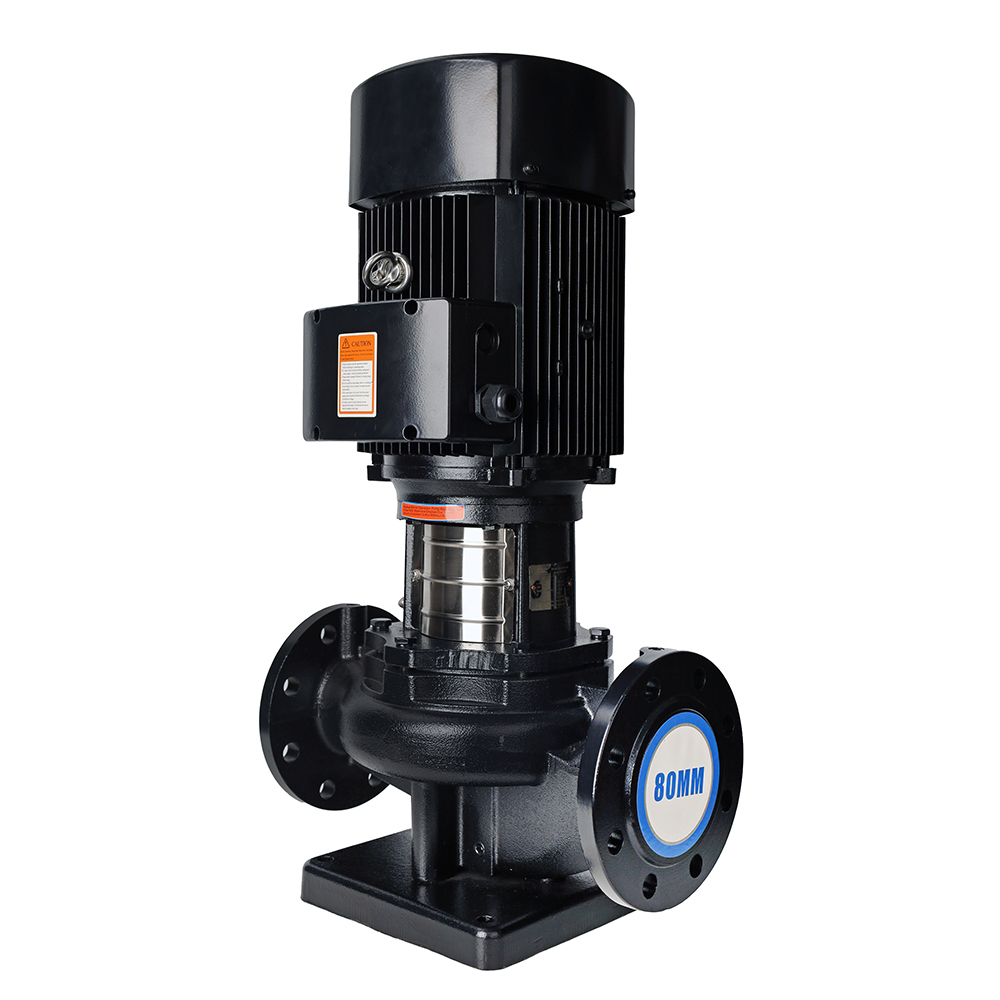

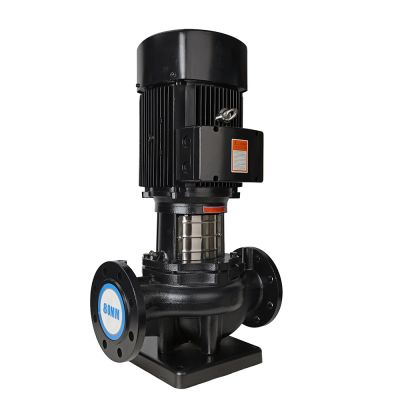

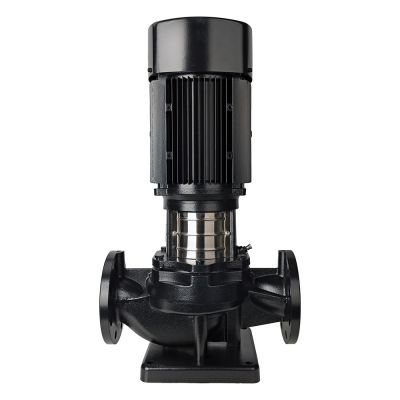

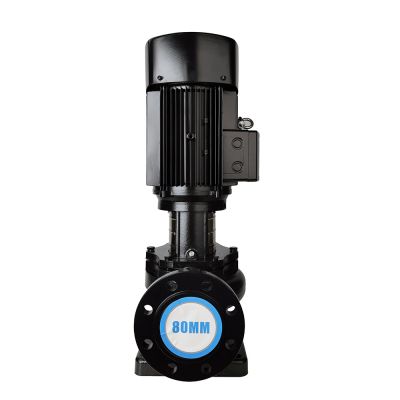

Centrifugal In Line Pump — STD

STD single-stage pipeline circulating pumpis equipped with standard motor  and mechanical seal. Compared with simlar products, the structure of such  products is ess susceptible to the impact ofimpuriies in the pump liouid, The  productis desianed to be removable from the top, which can repair the pump  without affecting the pipeline system. The removable structure adopts  container-type mechanical seal, It is not necessary to disassemble the motor  when replacing the mechanical seal.

Features

.Carbon/SlC/Viton/SUs304 mechanical seal

.Flange connection, convenient disassembly and assembly

.Electric pump has high efficiency and low temperature rise

.Large flow and high head

.Split shaft type, convenient installation and maintenance

.Insulation - F, Protection - IP55

Application

.Boiler feed water

.District regional water supply system

.District or district central heating system

.Central air conditioning system for refrigeration

.Washing system

.Domestic hot water system

.Generalindustrial water system

Working Condition

.Medium temperature: -20°C~+100°C

.Environmentaltemperature: 40°C

.Max.Working pressure: 1.2Mpa

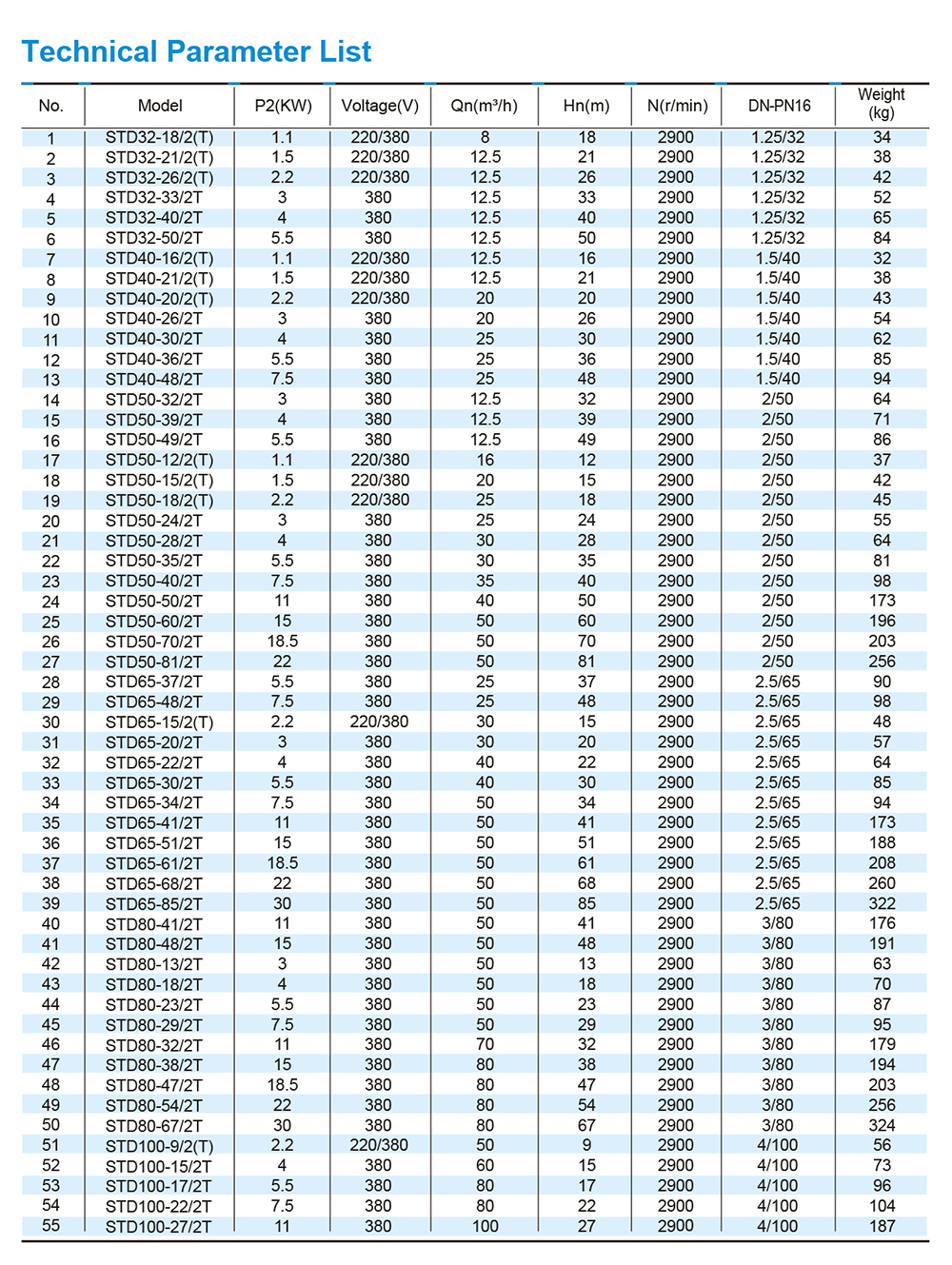

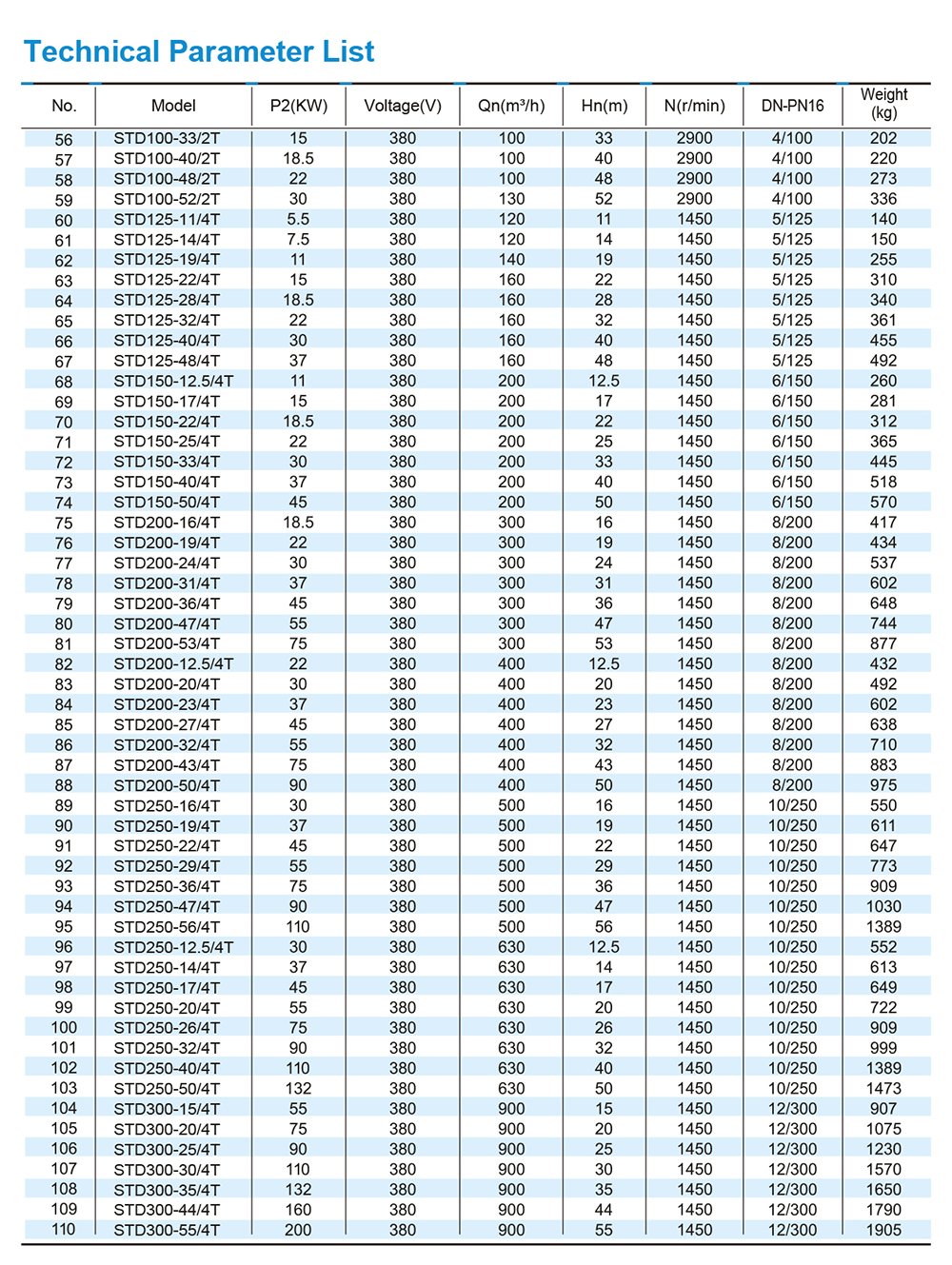

Performance Curve & Technical Data
