Removing standing water from a floor, flooded area or shallow surface can be difficult with an ordinary submersible drainage pump. Many conventional pumps stop removing water while a noticeable layer remains on the ground.

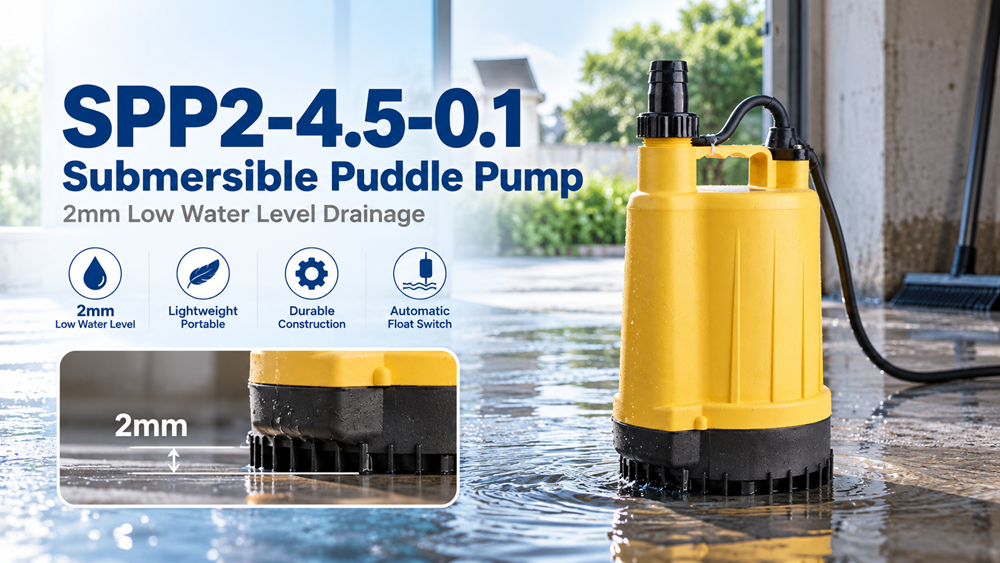

The Stream SPP2-4.5-0.1 Submersible Puddle Pump is designed for low-level water removal, with the ability to pump water down to a residual level of just 2mm under suitable operating conditions.

Its portable thermoplastic construction, stainless steel shaft, mechanical seal and automatic float switch make it a practical utility pump for domestic drainage, minor flooding, sump pits and various portable water-transfer applications.

What Is a Submersible Puddle Pump?

A submersible puddle pump is a drainage pump designed to remove shallow standing water from suitable surfaces.

Unlike a standard drainage pump that may require a deeper water level to operate effectively, a low-level puddle pump is designed to continue removing water until only a thin layer remains.

This makes it particularly useful for situations where minimizing residual water is important, such as cleaning up small floods or draining flat areas.

The Stream SPP2-4.5-0.1 offers a published minimum residual water level of 2mm.

Introducing the Stream SPP2-4.5-0.1 Puddle Pump

The Stream SPP2-4.5-0.1 is a compact, cost-effective submersible utility pump designed for clean and slightly dirty water.

It combines a corrosion-resistant thermoplastic structure with a 201 stainless steel shaft and ceramic-graphite mechanical seal.

The pump is lightweight and portable, making it convenient to move between drainage locations.

It also features a float switch for automatic operation and offers an optional prefilter base plate.

Key Features of the Stream SPP2-4.5-0.1

1. Low-Level Water Removal Down to 2mm

The most important feature of this puddle pump is its ability to remove water down to a low residual level of 2mm.

This helps minimize the amount of standing water remaining after pumping and reduces the need for additional manual water removal.

The actual residual level depends on installation conditions, surface flatness and the operating procedure.

2. Lightweight and Portable Construction

The pump is designed for flexible portable drainage applications.

Its lightweight structure makes it suitable for moving between household drainage areas, gardens and other locations where temporary water removal is needed.

3. Corrosion-Resistant Thermoplastic Housing

The thermoplastic construction provides a practical combination of low weight and corrosion resistance for compatible water applications.

It is suitable for clean and slightly dirty water within the manufacturer's specified operating conditions.

4. Stainless Steel Shaft

The SPP2-4.5-0.1 uses a 201 stainless steel shaft.

This provides a corrosion-resistant shaft material for appropriate water-pumping environments.

As with any pump, the suitability of the materials depends on the chemical characteristics of the liquid being handled.

5. Ceramic-Graphite Mechanical Seal

The pump incorporates a ceramic-graphite mechanical seal.

This sealing arrangement helps separate the pumped liquid from the motor-side components during normal operation.

Correct operation and avoiding dry running are important for maintaining mechanical seal performance.

6. Automatic Float Switch

The pump includes a float switch for automatic operation according to the surrounding water level.

This is useful for applications where water accumulates and periodic drainage is required.

However, the automatic float switch may stop the pump before the lowest residual water level is reached. The 2mm drainage capability should not be interpreted as a guaranteed automatic float-switch shutoff level.

7. Optional Prefilter Base Plate

An optional base plate for prefiltering is available.

This can be useful for appropriate installations where reducing the entry of unwanted debris is desirable.

Accessory configuration and compatibility should be confirmed before ordering.

Stream SPP2-4.5-0.1 Technical Specifications

For detailed flow, head and power information, refer to the performance curve and technical data on the official Stream SPP2-4.5-0.1 product page.

Where Can a 2mm Puddle Pump Be Used?

Small Flood Water Removal

Minor flooding can leave shallow standing water across floors and other surfaces.

The Stream puddle pump is designed for handling small floods, helping remove accumulated water and reduce the amount remaining after drainage.

Before using electrical pumping equipment in a flooded area, make sure the installation is electrically safe.

Basement and Utility Room Drainage

Where clean or slightly dirty water accumulates in a basement or utility room, a low-level submersible pump can provide a practical drainage solution.

Its portable design is useful for temporary cleanup operations.

Sump Pit Drainage

The SPP2-4.5-0.1 is suitable for appropriate sump-pit applications.

The float switch can provide automatic water-level control where the pit has enough space for the switch to move freely.

For permanent sump installations, verify pump capacity, switch operation and discharge requirements.

Garden Watering and Spraying

Stream also lists garden spraying among the pump's applications.

When using the pump for watering, the required flow and discharge pressure must be checked against its performance curve.

For high-pressure sprinkler systems, a dedicated garden pressure pump may be more suitable.

Car Washing and General Water Transfer

The pump can be used for appropriate portable water-transfer tasks, including car-washing applications.

It is not a pressure washer and should not be expected to generate the high-pressure spray associated with dedicated pressure-washing equipment.

Water Supply from Ponds and Rivers

The manufacturer lists water supply from rivers and ponds as a possible application.

When using these sources, care must be taken to avoid excessive sediment, abrasive particles and debris entering the pump.

Water quality should remain within the manufacturer's specified limits.

Why Is a 2mm Residual Water Level Important?

After ordinary pumping, remaining water often needs to be removed using a mop, sponge or wet vacuum.

A low-level puddle pump reduces the depth of the water left behind, which can make cleanup easier.

For example, reducing the remaining water layer from 10mm to 2mm represents a substantial reduction in residual water volume over a flat surface.

This does not mean the floor becomes completely dry. Final drying and cleaning may still be necessary.

Low-Level Puddle Pump vs Standard Submersible Drainage Pump

Not all standard drainage pumps have the same residual water capability, and not all puddle pumps are designed to handle solid particles.

How to Select the Right Puddle Pump

Check the Required Residual Water Level

If the goal is to remove shallow water from a floor, the minimum residual level is an important specification.

The Stream SPP2-4.5-0.1 is designed for water removal down to 2mm.

Calculate the Required Flow Rate

Estimate how much water must be removed and how quickly the drainage should be completed.

The selected pump should provide sufficient flow at the actual discharge head.

Evaluate the Discharge Head

Consider the vertical lift from the water surface to the discharge point, along with pipe and hose friction losses.

Long hoses, small pipe diameters and multiple bends can reduce actual flow.

Check Water Quality

The SPP2-4.5-0.1 is intended for clean and slightly dirty water.

It should not be selected for heavy sewage, fibrous wastewater or abrasive slurry without explicit manufacturer approval.

Consider Automatic Operation

Where water levels rise and fall, the float switch can offer convenient automatic control.

For shallow water cleanup, verify whether the float switch can operate at the required level and whether supervised operation is necessary.

Installation and Operation Tips

1. Position the Pump Correctly

Place the pump on a suitable stable surface according to the manufacturer's installation instructions.

2. Keep the Inlet Clear

Remove large debris that could obstruct the water inlet.

3. Connect the Discharge Hose

Use a compatible hose and ensure the discharge route is unobstructed.

4. Verify Electrical Safety

Use a properly grounded electrical supply and appropriate residual-current protection according to local regulations.

5. Monitor Low-Water Operation

When the water level approaches the minimum, avoid allowing the pump to continue running without sufficient water.

6. Clean After Use

Disconnect power before cleaning the pump, inlet or optional prefilter components.

Common Problems and Troubleshooting

The Pump Does Not Start

Check the power supply, electrical protection and float-switch position. Disconnect power before any physical inspection.

The Pump Runs but Water Does Not Discharge

Inspect the inlet, discharge hose and outlet for blockage. Check whether the required head exceeds the pump's available performance.

The Pump Stops Before Reaching 2mm

The float switch may stop the motor before the minimum residual water level is reached. The automatic control level and the hydraulic residual level are different specifications.

Water Flow Is Lower Than Expected

Check for restrictions in the hose, excessive vertical lift and debris around the inlet.

The Pump Makes Unusual Noise

Stop the pump and inspect for debris, unstable positioning or inadequate water supply.

Frequently Asked Questions

What is the minimum residual water level of the Stream SPP2-4.5-0.1?

The manufacturer specifies a minimum residual water level of 2mm under suitable operating conditions.

Can this pump completely dry a floor?

No. A 2mm residual water level means a thin layer may remain. Final drying may require additional cleaning equipment.

Is the SPP2-4.5-0.1 suitable for slightly dirty water?

Yes. Stream describes the pump as suitable for clean and slightly dirty water.

Does it have an automatic float switch?

Yes. The official product description lists a float switch for automatic operation.

Does the float switch automatically drain water to 2mm?

Not necessarily. The float-switch stopping level may be higher than the minimum residual water level.

What is the maximum immersion depth?

The specified maximum immersion depth is 5m.

What is the maximum water temperature?

The specified operating liquid temperature range is 0–40°C.

What material is the shaft made from?

The pump uses a 201 stainless steel shaft.

What type of mechanical seal does it use?

It uses a ceramic-graphite mechanical seal.

Can the pump be used continuously?

Stream specifies continuous service S1. This rating does not mean the pump can run dry or outside its stated operating conditions.

Is an optional prefilter available?

Yes. The product description lists an optional base plate for prefiltering.

Can it be used for sewage pumping?

It is intended for clean and slightly dirty water, not heavy sewage or wastewater containing large solids.

Can it be used for garden irrigation?

Garden spraying is listed among the manufacturer's applications. The pump's performance must match the irrigation system's flow and pressure requirements.

Is it suitable for removing water after minor flooding?

Yes. Stream specifically identifies small-flood drainage as an intended use.

Why Choose Stream for Low-Level Water Drainage?

The Stream SPP2-4.5-0.1 combines low-level water removal with portable construction and practical components for general utility pumping.

Its 2mm residual water capability, thermoplastic housing, stainless steel shaft, mechanical seal and automatic float switch make it a useful option for suitable shallow-water drainage tasks.

For customers selecting a compact pump for minor flooding, sump pits or portable water transfer, the SPP2-4.5-0.1 offers a focused solution.

Conclusion

The Stream SPP2-4.5-0.1 Submersible Puddle Pump is designed for applications where removing shallow standing water is a priority.

With a minimum residual water level of 2mm, lightweight thermoplastic construction and automatic float-switch control, it offers a practical option for domestic and light-duty drainage applications.

For the best results, select the pump according to the required flow, discharge head, water quality and operating conditions.

Explore the full product information and technical performance curve on the Stream SPP2-4.5-0.1 Submersible Puddle Pump product page.
