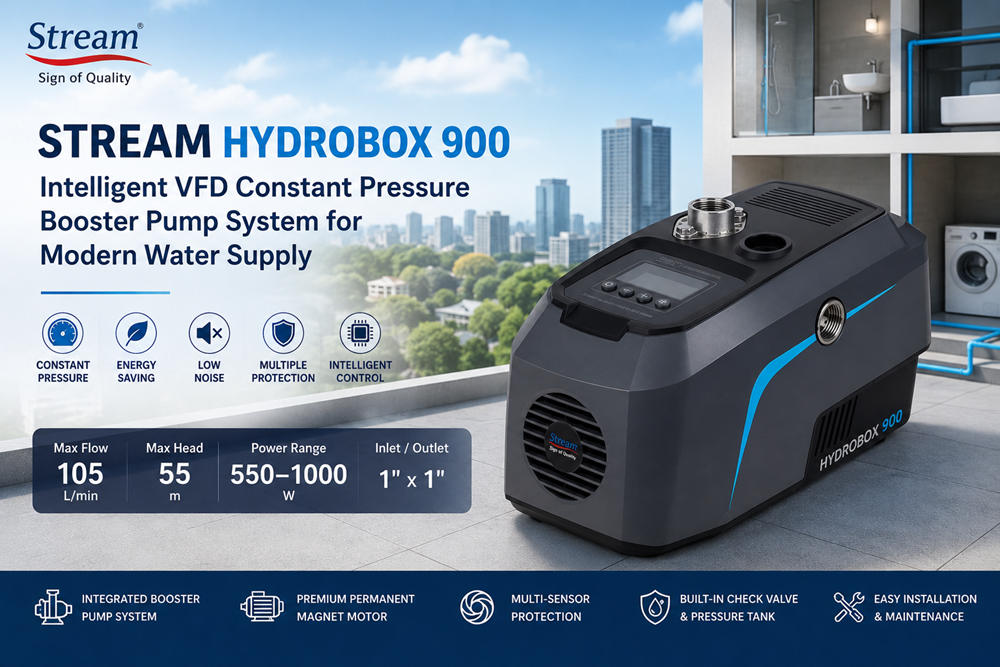

The Stream Hydrobox 900 is an intelligent variable frequency booster pump system engineered to deliver stable water pressure, energy-efficient operation, and automatic water supply management for residential buildings, villas, and small commercial applications. Combining inverter technology, permanent magnet motor efficiency, integrated pressure control, and compact all-in-one design, the Hydrobox 900 provides a smarter alternative to traditional fixed-speed booster pumps.

Unstable water pressure is one of the most common problems in modern residential water systems. Low pressure on upper floors, inconsistent shower performance, slow tank filling, and pressure fluctuations caused by simultaneous water usage can significantly affect daily comfort. Traditional booster pumps solve the problem by increasing pressure, but they often operate at fixed speed, resulting in unnecessary energy consumption, frequent starts and stops, and inconsistent pressure delivery.

The Stream Hydrobox 900 addresses these limitations through intelligent variable frequency drive (VFD) control. Instead of running at full speed continuously, the system automatically adjusts motor speed according to real-time water demand, maintaining constant pressure while reducing energy consumption.

Designed as an AIO (All-In-One) water pressure system, the Hydrobox 900 integrates the pump, inverter control, sensors, and protection functions into a compact package that simplifies installation and operation.

What Is the Stream Hydrobox 900 Intelligent Booster Pump System?

The Stream Hydrobox 900 is an intelligent constant pressure booster system designed to improve water pressure performance in residential and light commercial water supply applications.

Unlike conventional booster pumps that operate at a fixed speed, the Hydrobox 900 uses variable frequency technology to continuously adjust operating speed based on actual water demand. When water consumption increases, the pump increases speed to maintain pressure. When demand decreases, the system automatically reduces speed to avoid unnecessary power consumption.

The intelligent control system provides several practical advantages:

• Stable water pressure at different usage levels

• Reduced electricity consumption

• Lower mechanical stress caused by frequent starts and stops

• Quieter operation compared with traditional fixed-speed booster pumps

• Improved user comfort in residential water systems

The Hydrobox 900 is suitable for applications including residential buildings, villas, municipal water pressure boosting, roof tank boosting, break tank systems, ground tank supply, and shallow well water supply.

Key Features of the Stream Hydrobox 900

Intelligent VFD Constant Pressure Control

The core technology of the Hydrobox 900 is its integrated inverter control system.

Traditional fixed-speed booster pumps generally operate in only two conditions: running or stopped. This can create noticeable pressure fluctuations because the pump cannot dynamically adapt to changing water demand.

The Hydrobox 900 continuously monitors system pressure and adjusts motor speed automatically. Whether one faucet is open or multiple outlets are operating simultaneously, the system responds dynamically to maintain a more consistent pressure level.

For residential users, this means a more comfortable shower experience, stable water flow throughout the building, and reduced pressure fluctuations during periods of peak water consumption.

Energy-Saving Permanent Magnet Motor Technology

The Hydrobox 900 uses a variable-frequency permanent magnet motor designed for high efficiency and compact construction.

Compared with conventional induction motor systems, permanent magnet motor technology can provide:

• Higher motor efficiency

• Lower operating energy consumption

• Reduced heat generation

• More compact system construction

The motor efficiency reaches approximately 85%, helping reduce long-term operating costs in applications requiring frequent daily water supply operation.

For residential projects, energy efficiency is becoming an increasingly important specification factor. A booster pump that operates according to actual water demand can reduce unnecessary electricity consumption compared with a conventional pump running continuously at full speed.

All-In-One Compact Design for Easy Installation

One of the major advantages of the Hydrobox 900 is its integrated AIO structure.

Traditional booster systems may require separate installation of a pump unit, pressure controller, inverter, sensors, and additional control components. This increases installation complexity and requires more installation space.

The Hydrobox 900 combines these functions into a single intelligent system, reducing installation time and simplifying commissioning.

The compact design makes it suitable for:

• Residential utility rooms

• Villas

• Small equipment rooms

• Water supply cabinets

• Retrofit projects where installation space is limited

Real-Time LED Display and Professional Adjustment Mode

The Hydrobox 900 features an LED display system that provides real-time operating information.

Users and installers can monitor important operating parameters such as:

• System pressure

• Power information

• Operating speed

The system also includes a professional adjustment mode that allows pressure settings to be configured according to different installation requirements.

This provides additional flexibility for installers working with different building layouts, pipe networks, and household water demand conditions.

Multiple Protection Functions for Reliable Operation

Water booster systems often operate automatically for extended periods, making built-in protection functions essential for long-term reliability.

The Hydrobox 900 integrates multiple protective measures designed to improve operational safety and protect the pump under abnormal operating conditions.

These protective functions help reduce risks associated with:

• Motor overheating

• Abnormal operating conditions

• Water supply interruptions

• System faults

For distributors, contractors, and end users, these integrated protections can help reduce maintenance requirements and improve long-term operational reliability.

Applications of the Stream Hydrobox 900

Residential Buildings and Villas

The Hydrobox 900 is primarily designed for residential water pressure boosting.

Modern homes, especially multi-story houses and villas, often experience insufficient water pressure due to building height, distance from the municipal supply, pipe resistance, or simultaneous water demand.

The Hydrobox 900 improves water delivery performance by maintaining stable pressure throughout the property.

Typical applications include:

• Bathroom shower systems

• Kitchen water supply

• Whole-house pressure boosting

• Multi-floor residential buildings

Municipal Water Pressure Boosting

Urban water supply pressure can vary depending on location, building height, pipeline conditions, and peak consumption periods.

The Hydrobox 900 provides automatic pressure compensation by increasing pump output when incoming water pressure is insufficient and reducing output when water demand falls.

This makes it suitable for residential buildings connected to municipal water networks where stable downstream pressure is required.

Roof Tank and Ground Tank Water Supply

Many residential and commercial properties use storage tanks as part of their water supply systems.

The Hydrobox 900 can be integrated into systems using:

• Ground water tanks

• Break tanks

• Roof tanks

Its intelligent variable-speed control helps provide consistent water delivery while avoiding unnecessary pump operation during periods of low demand.

Shallow Well Water Supply

For properties using shallow groundwater sources, reliable pressure control is essential for maintaining comfortable and consistent water supply.

The Hydrobox 900 can be used in suitable shallow well water supply applications when the operating conditions fall within the pump system's rated parameters.

Working Conditions and Technical Specifications

Why Choose the Stream Hydrobox 900 Over Traditional Booster Pumps?

When selecting a residential booster system, buyers typically consider four main factors: water pressure stability, energy consumption, installation complexity, and long-term reliability.

The Hydrobox 900 is designed to address all four through intelligent variable-speed operation and integrated system control.

For distributors and contractors, the Hydrobox 900 represents a higher-value product category that responds to increasing demand for smart, efficient, and compact residential water pressure systems.

Frequently Asked Questions About the Stream Hydrobox 900

Is the Hydrobox 900 suitable for villas?

Yes. The Hydrobox 900 is well suited for villas and multi-story residential buildings where stable water pressure is required across multiple outlets and floors.

Does the Hydrobox 900 save electricity?

The Hydrobox 900 uses variable frequency control and a permanent magnet motor to adjust operating speed according to real-time water demand. This reduces unnecessary full-speed operation compared with traditional fixed-speed booster pumps.

Can the Hydrobox 900 replace a traditional booster pump?

In many residential and light commercial water supply applications, the Hydrobox 900 can replace conventional fixed-speed booster systems while providing more stable pressure control, integrated operation, and easier installation.

What is the maximum flow rate of the Hydrobox 900?

The Hydrobox 900 provides a maximum flow rate of 5.2 m³/h.

What is the maximum head of the Hydrobox 900?

The maximum head is 50 meters, making it suitable for a range of residential pressure boosting and water transfer applications.

What is the maximum liquid temperature?

The Hydrobox 900 is designed for liquids with temperatures from 0°C to 55°C.

Conclusion

The Stream Hydrobox 900 represents a modern approach to residential water pressure boosting. By combining intelligent VFD constant pressure control, permanent magnet motor technology, integrated system management, and compact All-In-One construction, it provides a more efficient and user-friendly alternative to conventional fixed-speed booster pumps.

For homeowners, the Hydrobox 900 delivers more stable water pressure and improved daily comfort. For contractors, distributors, and procurement professionals, it provides a compact and technically advanced solution for modern residential and light commercial water supply systems.

For more information about Stream intelligent water pressure solutions, visit the HydroSmart Series or contact Stream Pumps for product selection and technical support.
