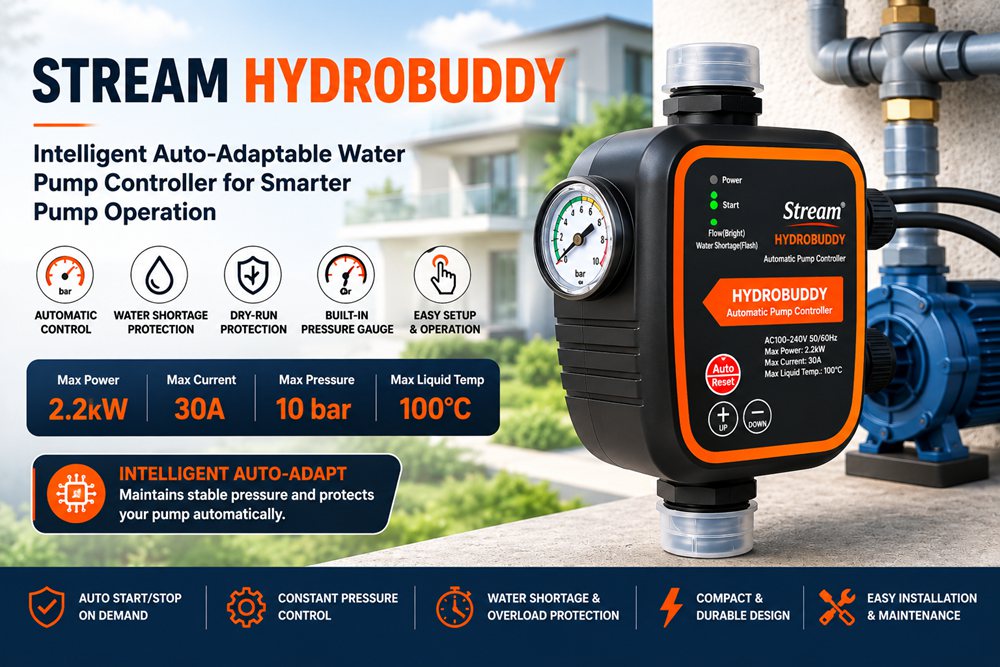

The Stream Hydrobuddy is an intelligent auto-adaptable water pump controller designed to simplify automatic pump operation across different piping systems. By detecting real-time water pressure and automatically generating an appropriate starting pressure, Hydrobuddy eliminates much of the manual adjustment traditionally required when installing an automatic pump controller.

Automatic water pump systems are widely used in residential water supply, irrigation, tank transfer, and well pumping applications. However, conventional pressure controllers often require installers to manually configure starting pressure according to the characteristics of each piping system. Incorrect settings can result in unstable pump operation, frequent starting and stopping, dry-running, or unnecessary service calls.

The Stream Hydrobuddy takes a different approach. Instead of relying entirely on predefined manual settings, it monitors the actual pressure conditions inside the pipeline and automatically generates a suitable starting pressure for the system.

Combined with water shortage protection, incoming water detection, automatic restart, anti-cycle protection, a waterproof circuit board, and compatibility with single-phase pumps up to 2.2 kW, Hydrobuddy provides a compact intelligent control solution for installers, distributors, and end users looking to automate conventional water pumps.

What Is the Stream Hydrobuddy Auto-Adaptable Pump Controller?

The Stream Hydrobuddy is a smart electronic pump controller designed to convert a compatible conventional single-phase water pump into a more intelligent automatic water supply system.

Its defining capability is automatic starting pressure generation. Hydrobuddy detects real-time water pressure inside the piping system and determines the appropriate pump starting pressure automatically, reducing the need for manual pressure configuration during installation.

This makes the controller particularly useful across installations where pipe length, elevation, water source conditions, and system pressure vary from project to project.

Hydrobuddy supports single-phase pumps from 0.1 kW to 2.2 kW and operates across a wide 100–240V power supply range. With a maximum current rating of 30A and maximum working pressure of 10 bar, it can be integrated into a broad range of domestic, agricultural, and light-duty water supply systems.

Key Features of the Stream Hydrobuddy Smart Pump Controller

Auto-Generated Starting Pressure for Different Piping Systems

One of the most important features of the Hydrobuddy is its ability to automatically generate starting pressure according to the actual piping system.

Traditional automatic pump controllers commonly rely on a preset starting pressure. While this approach can work in simple installations, real-world water systems vary significantly in elevation, pipe resistance, pump performance, and outlet configuration.

A setting that works correctly in one installation may not provide optimal operation in another.

Hydrobuddy detects the real-time pressure within the system and automatically adapts the starting pressure without requiring the installer to manually calculate and configure it.

This adaptive approach can simplify commissioning and make one controller suitable for a wider range of installations.

Compatible With Single-Phase Pumps Up to 2.2 kW

Hydrobuddy supports single-phase water pumps across a power range of 0.1–2.2 kW.

This broad compatibility allows the controller to work with many commonly used domestic and light commercial pumps instead of requiring a dedicated controller for every individual pump size.

For distributors, this can simplify inventory management. For installers, it provides greater flexibility when selecting a controller for different projects.

Typical compatible pump applications may include:

• Domestic surface pumps

• Self-priming water pumps

• Centrifugal pumps

• Garden and irrigation pumps

• Submersible well pumps

• Tank transfer pumps

Pump electrical characteristics should always be checked against the controller's rated voltage, current, and power range before installation.

Wide 100–240V Working Voltage Range

Hydrobuddy operates with a power supply of 100–240V at 50Hz or 60Hz.

The wide operating voltage range improves compatibility across different markets and electrical environments. This is particularly useful for international distributors supplying pump control equipment into regions where nominal mains voltage differs.

For project installers, wider voltage compatibility can also reduce the number of controller variants required across different installations.

30A Maximum Current for Enhanced Electrical Reliability

The controller has a maximum current rating of 30A.

Adequate current capacity is important in pump control applications because electric motors can draw significantly higher current during startup than during normal operation.

Hydrobuddy's 30A maximum current specification is designed to reduce the risk of electrical overload affecting the controller circuit board when used with compatible pumps within the rated operating range.

Water Shortage and Dry-Run Protection

Running a water pump without sufficient water is one of the most common causes of premature pump failure.

Without adequate liquid, the pump can lose the cooling and lubrication normally provided by the pumped water. Continued operation may result in excessive heat, mechanical seal damage, or motor failure.

Hydrobuddy incorporates water shortage protection to detect abnormal water supply conditions and protect the connected pump from prolonged dry-running.

This protection is especially important in applications involving wells, storage tanks, or water supplies where the incoming water level can fluctuate.

Incoming Water Self-Detection and Automatic Restart

Protecting a pump during water shortage is only one part of an intelligent control system. The system must also determine when the water supply becomes available again.

Hydrobuddy includes incoming water self-detection and automatic restart functionality.

After the controller has stopped the pump because of insufficient water, it can detect when the water supply returns and automatically resume operation.

This reduces the need for users to manually reset the pump every time the upstream water source is temporarily interrupted.

For unattended installations, this function can significantly improve convenience and continuity of water supply.

Anti-Cycle Protection Against Excessive Pump Starts

Frequent starting and stopping places unnecessary stress on pump motors, electrical components, and hydraulic systems.

This condition, often referred to as short cycling, may occur because of small leaks, pressure instability, system configuration issues, or other abnormal operating conditions.

Hydrobuddy incorporates anti-cycle protection designed to protect the connected pump against excessive starting frequency.

Reducing unnecessary pump starts can help decrease mechanical and electrical stress and support longer equipment service life.

IP65 Waterproof Circuit Board

Pump controllers are frequently installed in humid environments such as pump rooms, gardens, irrigation systems, wells, and water tank areas.

Hydrobuddy incorporates an IP65 waterproof circuit board to improve resistance against dust and water exposure under appropriate installation conditions.

This added environmental protection helps improve controller reliability in locations where moisture exposure is difficult to avoid.

Compact Design for Easy Installation and Maintenance

Hydrobuddy is designed as a compact pump control solution that simplifies installation and maintenance.

Rather than requiring a complicated control cabinet or multiple separate components for basic automatic pump operation, the controller provides key control and protection functions in a compact unit.

This makes it particularly attractive for retrofit projects where an existing conventional pump needs to be upgraded with automatic control.

Manual RESET Function After Mal-Operation

Hydrobuddy also provides a manual RESET function following abnormal or incorrect operation.

This gives installers and users a straightforward way to restore controller operation after the cause of a fault has been inspected and corrected.

How Does the Hydrobuddy Auto-Adaptable Control Work?

The principle behind Hydrobuddy is straightforward: the controller monitors pressure conditions inside the water supply system and uses this information to manage pump operation.

When water demand causes system pressure to change, the controller determines when the connected pump should start. Instead of depending entirely on a manually configured fixed starting pressure, Hydrobuddy automatically generates a starting pressure suited to the piping system.

Once water demand stops and operating conditions indicate that pumping is no longer required, the controller manages pump shutdown.

At the same time, the protection system monitors conditions that could damage the pump, including water shortage and excessive cycling.

This combination of automatic pressure adaptation and integrated protection makes Hydrobuddy more than a simple on/off switch. It functions as an intelligent interface between the pump and the water distribution system.

Ideal Applications for the Stream Hydrobuddy

High-Head Water Supply Applications

High-head installations can be more difficult to configure because the elevation difference between the pump and the point of use affects system pressure.

Hydrobuddy's automatic starting pressure generation makes it particularly useful for these applications because the controller adapts to the pressure characteristics of the installation rather than relying only on a generic preset value.

Potential applications include multi-level residential water supply and other systems where water must be delivered to elevated outlets.

Garden and Light Irrigation

Garden irrigation systems frequently operate intermittently as users open and close hoses, sprinklers, or irrigation zones.

When paired with a compatible pump, Hydrobuddy can automate pump operation according to water demand while providing protection against dry-running and excessive cycling.

This makes it suitable for residential gardens, small landscaping projects, and light irrigation systems.

Tank-to-Tank Water Transfer

Water transfer between storage tanks is common in domestic, agricultural, and small commercial water systems.

Hydrobuddy can be used with a compatible transfer pump to provide automatic pump control while protecting the pump when the source tank experiences insufficient water supply.

Its incoming water detection and automatic restart capability is particularly useful where source water availability can fluctuate.

Submersible Well Pump Systems

Hydrobuddy can also be used with compatible single-phase submersible well pumps within its rated electrical range.

Well applications benefit significantly from dry-run protection because groundwater levels may fluctuate and the pump can become temporarily starved of water.

By monitoring operating conditions and automatically responding to water shortage and water recovery, Hydrobuddy can provide an additional layer of protection and automation for suitable well pumping systems.

Hydrobuddy Technical Specifications

Parameter

Specification

Hydrobuddy vs. Conventional Automatic Pump Controllers

The main difference between Hydrobuddy and a conventional automatic pump controller lies in how starting pressure is managed.

Conventional Pump Controller

Stream Hydrobuddy

Why Hydrobuddy Is Useful for Pump Distributors and Installers

For distributors, one of the practical challenges of pump accessories is the number of different configurations required to cover different pump sizes, electrical systems, and installations.

Hydrobuddy addresses part of this challenge through its wide voltage range and compatibility with single-phase pumps from 0.1 to 2.2 kW.

A single intelligent controller can therefore serve a broad selection of common pump applications, helping simplify product selection and potentially reducing accessory inventory complexity.

For installers, the auto-adaptable starting pressure function reduces the need to manually configure starting pressure for every piping system.

Integrated pump protections can also help reduce common installation-related service problems associated with dry-running, temporary water shortages, and excessive pump cycling.

Frequently Asked Questions About the Stream Hydrobuddy

What does the Stream Hydrobuddy do?

Hydrobuddy is an intelligent water pump controller that monitors real-time pressure in the piping system and automatically generates an appropriate starting pressure for the connected pump.

Is Hydrobuddy a water pump?

No. Hydrobuddy is a pump controller rather than a pump. It is installed together with a compatible water pump to provide automatic operation and protection functions.

What pump sizes can Hydrobuddy control?

Hydrobuddy supports compatible single-phase pumps with power ratings from 0.1 kW to 2.2 kW, provided the electrical specifications remain within the controller's rated limits.

What voltage does Hydrobuddy support?

The controller operates across a wide 100–240V power supply range at 50Hz or 60Hz.

Does Hydrobuddy require manual starting pressure adjustment?

Its key feature is automatic starting pressure generation. The controller detects actual pressure conditions within the piping system and automatically determines the starting pressure without requiring normal manual configuration.

Does Hydrobuddy protect against dry-running?

Yes. Hydrobuddy incorporates water shortage protection designed to protect the connected pump when sufficient water is unavailable.

Will the pump restart automatically when water returns?

Hydrobuddy includes incoming water self-detection and automatic restart functionality, allowing the system to resume operation when water supply conditions recover.

Does Hydrobuddy prevent frequent pump starts?

Yes. The controller incorporates anti-cycle protection designed to protect the pump against excessive starting frequency.

Can Hydrobuddy be used with submersible well pumps?

Yes. Submersible well pump systems are one of the applications listed for Hydrobuddy, provided the connected pump is compatible with the controller's electrical and operating specifications.

What is the maximum working pressure?

The maximum working pressure of the Stream Hydrobuddy is 10 bar.

What is the maximum liquid temperature?

Hydrobuddy is rated for a maximum liquid temperature of 100°C.

Conclusion

The Stream Hydrobuddy provides a smarter approach to automatic water pump control by combining adaptive starting pressure generation with essential pump protection functions in one compact controller.

Its ability to detect system pressure and automatically determine the appropriate starting pressure can simplify installation across different piping configurations, while water shortage protection, incoming water detection, automatic restart, and anti-cycle protection help safeguard the connected pump during everyday operation.

With compatibility for single-phase pumps from 0.1 to 2.2 kW, a wide 100–240V operating voltage range, maximum current of 30A, and maximum working pressure of 10 bar, Hydrobuddy provides a versatile control solution for high-head water supply, garden irrigation, tank transfer, and submersible well pump applications.

For pump distributors, contractors, and installers looking for a flexible automatic pump controller that can adapt to different water systems, the Stream Hydrobuddy offers a practical combination of intelligent control, broad compatibility, and integrated pump protection.
