Why Installing a Check Valve Near the Pump Discharge Matters

A check valve is a simple device with a critical job: it allows fluid to flow in only one direction. In any pump system, its primary function is to prevent backflow, the unwanted reversal of flow when the pump shuts off. While its purpose seems straightforward, its placement is a detail that can make or break your system's health. The question isn't just if you should use a check valve, but where you should install it. Placing it near the pump discharge is crucial for protecting your equipment and ensuring efficient operation.

This guide explores the essential role of check valves in pump systems. We will cover why correct placement is so important, what happens when things go wrong, and how to get your check valve installation right the first time. Understanding these principles helps protect your investment, reduce maintenance costs, and improve overall pump system efficiency.

Understanding How Backflow Affects Pump Performance

When a pump stops, the fluid in the discharge line is still under pressure. Gravity and residual system pressure will try to force this fluid back toward the pump. Without a barrier, this reverse flow can have immediate and damaging consequences.

Backflow forces the pump’s impeller to spin in the opposite direction. This reverse rotation puts immense stress on the motor, bearings, and seals—components that were never designed for such forces. Over time, this can lead to premature wear and catastrophic failure. The seals may leak, and the bearings can be damaged, resulting in costly repairs and significant downtime.

Another serious risk is water hammer. This phenomenon occurs when the returning column of water slams into a closed valve or the stationary impeller, creating a violent hydraulic shockwave that reverberates through the pipes. This shock can damage the pump, the piping, and any connected instruments. For non-submersible pumps that require priming, uncontrolled backflow means the pump casing will empty, forcing you to re-prime the system before every startup. This is inefficient and time-consuming.

Why Placement Near the Pump Discharge Is Ideal

Proper check valve installation is about more than just preventing backflow; it's about doing so effectively and immediately. Placing the valve as close as possible to the pump discharge outlet provides the best protection.

The hydraulic reasoning is simple. A check valve installed right at the discharge point closes the moment the pump stops, holding the entire column of water in the discharge line. This action provides immediate protection against reverse flow and the associated reverse rotation of the impeller. It also minimizes the volume of water that can flow backward, which significantly reduces the potential for water hammer.

When a check valve is installed far down the discharge line, a large volume of water can rush back toward the pump before the valve closes. This can still cause the impeller to spin backward briefly and create a damaging hydraulic shock. By positioning the valve near the pump, you ensure the system remains full and pressurized, allowing for faster, smoother restarts and more reliable priming.

Common Mistakes in Check Valve Installation

Even with the best intentions, mistakes in check valve installation can compromise an entire system. Avoiding these common errors is key to maximizing pump system efficiency and longevity.

• Installing Too Far from the Pump Outlet: As discussed, this is the most common and critical mistake. It leaves the pump vulnerable to backflow and water hammer between the pump and the valve.

• Using an Undersized or Oversized Valve: An undersized valve will restrict flow, increasing pressure drop and energy consumption. An oversized valve may not open or close properly under normal flow conditions, leading to 【chattering】 and premature wear.

• Choosing the Wrong Type: Not all check valves are created equal. A swing check valve might be unsuitable for a vertical pipe run, while a spring-loaded valve might create too much pressure drop in a low-head system. The choice must match the application.

• Ignoring Flow Direction Markings: Every check valve has an arrow indicating the correct direction of flow. Installing it backward will completely block flow when the pump is running, potentially damaging the pump and the system.

• Skipping Routine Inspection: Check valves have moving parts that can wear out, stick, or get clogged with debris. Regular maintenance ensures they continue to function as intended.

Types of Check Valves and Their Suitable Applications

Choosing the right type of check valve is just as important as its placement. Each design has specific characteristics that make it suitable for different scenarios.

• Swing Check Valve: This common type features a disc (flapper) that swings open with forward flow and closes with backflow. It offers low resistance and is ideal for horizontal installations with clean water and low to moderate head pressures.

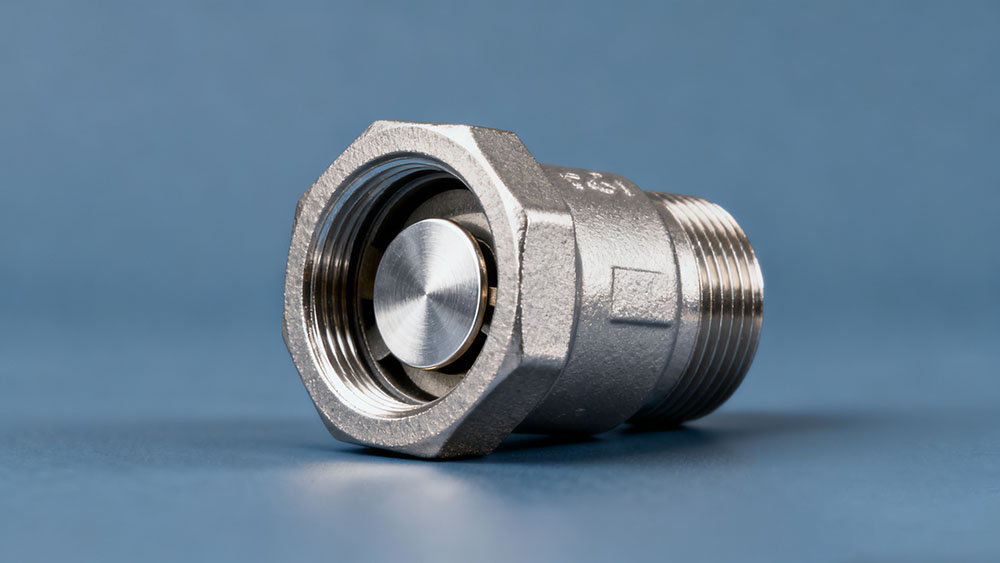

• Spring-Loaded (Non-Return) Valve: A spring holds a disc or piston against a seat. Forward flow pressure overcomes the spring tension to open the valve. Because it doesn't rely on gravity, it works well in any orientation (horizontal or vertical) and is excellent for high-head systems where quick closure is needed to prevent water hammer.

• Foot Valve: This is a special type of check valve combined with a strainer, installed at the end of the suction line (the inlet). Its job is to keep the pump primed by preventing water from draining out of the suction pipe when the pump is off. It is essential for self-priming pump setups.

• Dual Plate or Silent Check Valve: These are compact, spring-assisted valves designed for fast, quiet closing. Their primary advantage is superior water hammer control, making them a top choice for critical systems and high-rise buildings where noise and vibration are concerns.

Best Practices for Check Valve Installation

To ensure your check valve performs optimally, follow these professional installation best practices.

1. Place as Close to the Pump Discharge as Possible: This is the golden rule. It offers the most immediate protection against backflow and its negative effects.

2. Ensure Arrow Matches Flow Direction: Double-check that the flow arrow on the valve body points away from the pump and into the discharge line.

3. Minimize Fittings Before the Valve: To ensure smooth, non-turbulent flow through the valve, install it after a straight run of pipe that is at least 5-10 pipe diameters long. Avoid placing it immediately after an elbow or other fitting.

4. Consider Accessibility for Maintenance: Install the valve in a location where it can be easily accessed for inspection, cleaning, or replacement without dismantling large sections of pipe.

5. Combine with Isolation Valves: Placing isolation valves (like ball or gate valves) on either side of the check valve allows you to de-pressurize and service the check valve without draining the entire system.

Case Example: The Impact on a Centrifugal Pump System

Consider a water transfer system using a centrifugal pump without a check valve on the discharge line. When the pump shuts down, the water from the elevated storage tank rushes back down the pipe, spinning the impeller backward at high speed. Upon the next startup command, the motor tries to force the impeller to rotate in the correct direction while it's still spinning backward. This creates immense mechanical and electrical stress, eventually leading to a burned-out motor and damaged bearings. The result is costly downtime and an expensive pump replacement.

Now, imagine the same system with a spring-loaded check valve properly installed near the pump discharge. When the pump stops, the valve closes instantly. The water column is held in place, and there is no reverse flow. The pump remains primed and ready. On restart, the system operates smoothly without any damaging stress. This simple addition drastically improves reliability, extends the pump's lifespan, and enhances overall pump system efficiency.

A Small Component with a Big Impact
