Stop Cavitation with Proper Pump Installation

Inside many underperforming pump systems, a hidden enemy is at work. It sounds like gravel rattling through the pipes, and its effects are just as destructive. This phenomenon is cavitation—the formation and rapid collapse of vapor bubbles inside a pump. This process unleashes intense shockwaves that erode impellers, destroy mechanical seals, and cause severe vibration, leading to a dramatic loss in performance.

While cavitation can seem like a complex hydraulic problem, its root cause often lies in something much more controllable: the initial installation. Many cavitation issues can be completely avoided with a focus on correct setup and smart piping design. This article will explain how proper pump installation is your number one defense for preventing pump cavitation, ensuring your equipment runs efficiently for years to come.

What Causes Pump Cavitation?

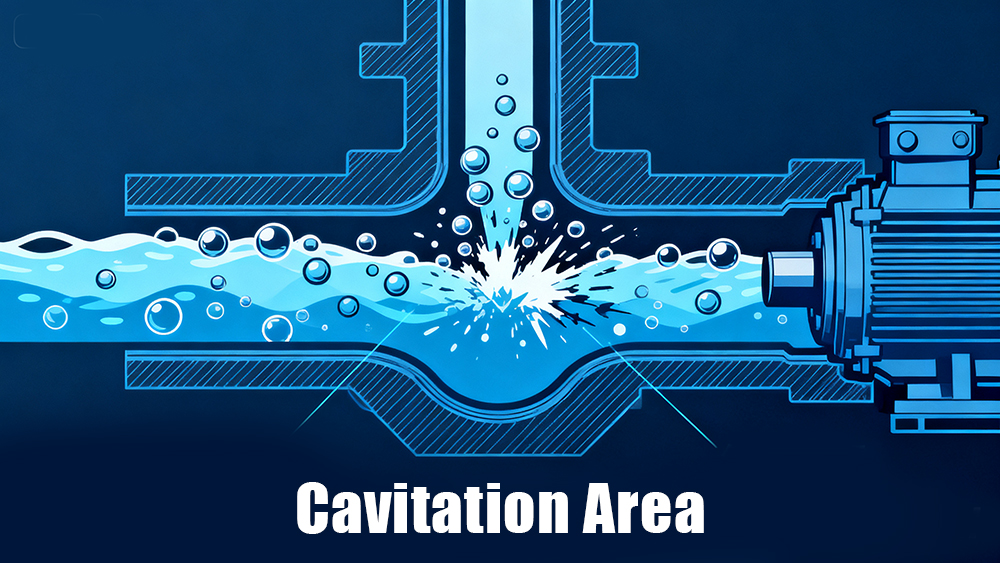

Cavitation occurs when the pressure of the liquid at the pump's inlet drops below its vapor pressure. At this low pressure, the liquid essentially boils at a low temperature, creating vapor bubbles. As these bubbles travel into the higher-pressure zones within the pump, they violently collapse, or implode. This implosion is what causes the characteristic noise and damage.

Several factors contribute to this pressure drop:

• Low Suction Pressure: The most common cause is insufficient Net Positive Suction Head available (NPSHa). If the available head is not greater than the head required by the pump (NPSHr), cavitation is almost certain.

• High Fluid Temperature: Warmer liquids have a higher vapor pressure, making them more prone to boiling and forming bubbles.

• Poor Piping Layout: Long, undersized suction lines or too many bends and fittings increase friction loss, reducing the pressure at the pump inlet.

• Excessive Pump Speed: Running a pump too fast can create significant pressure drops within the impeller eye.

It's helpful to distinguish between suction cavitation (caused by low inlet pressure) and discharge cavitation (caused by excessively high discharge pressure), but suction-side issues are far more common and are the primary focus of proper installation practices.

Recognizing the Warning Signs of Cavitation

Cavitation isn't subtle. If you know what to look for, the signs are clear. Ignoring them will lead to expensive repairs and unscheduled downtime.

• Noise: The most classic symptom is a loud rattling, grinding, or crackling sound, often described as pumping rocks or gravel.

• Vibration: The violent collapse of vapor bubbles creates significant vibration, which can be felt on the pump casing and surrounding pipes.

• Performance Drop: You may notice a fluctuating discharge pressure, a lower-than-expected flow rate, or an increase in motor power consumption.

• Impeller Damage: During maintenance, you will see pitting and erosion on the impeller vanes, looking as if they have been eaten away.

• Seal Failure: The intense vibration caused by cavitation puts immense stress on mechanical seals, leading to frequent leaks.

How Proper Pump Installation Prevents Cavitation

Preventing pump cavitation is not about finding a magic fix after the fact; it’s about designing and installing the system correctly from the start. A proper pump installation ensures a smooth, unrestricted flow of liquid to the pump's suction nozzle. This maintains a sufficient pressure margin above the fluid's vapor pressure, creating a healthy NPSH margin and starving cavitation before it can begin.

Following established best practices during the mechanical setup and piping layout is the most effective strategy for achieving a long, trouble-free service life for your pump.

Suction Piping Best Practices

The suction side is where the battle against cavitation is won or lost. More than 80% of pump issues originate here. Adhering to these suction piping best practices is non-negotiable.

Use the Right Pipe Diameter

The suction pipe should always be the same size as, or preferably one size larger than, the pump's suction inlet. Using a larger pipe reduces fluid velocity and minimizes friction loss, which directly increases the NPSHa.

Keep Suction Lines Short and Straight

Minimize the length of the suction line and the number of fittings like elbows and valves. Every component adds friction and contributes to pressure drop. A short, direct path is always best.

Maintain a Flooded Suction

Whenever possible, install the pump below the liquid level of the supply tank. This "flooded suction" provides a positive static head that helps push the liquid into the pump, significantly improving the NPSH margin.

Use Eccentric Reducers Correctly

If you need to reduce the pipe size to match the pump inlet, use an eccentric reducer with the flat side on top. This prevents air from getting trapped at the high point of the pipe, which can cause vapor lock and cavitation.

Provide an Adequate Straight Run

Install a straight section of pipe, at least 5 to 10 times the pipe diameter in length, directly before the pump's suction flange. This allows the flow to stabilize and enter the impeller eye without turbulence. Never install an elbow directly on the pump’s suction nozzle.

Key System and Installation Checks

Beyond piping layout, other system factors play a crucial role.

Pump Elevation and Operating Point

Carefully consider the pump's elevation relative to the fluid source to ensure there is enough static head. Also, operate the pump near its Best Efficiency Point (BEP) on the pump curve. Running it too far to the right (high flow) or left (low flow) can induce cavitation.

Pre-Startup Verification

Before commissioning, verify these critical items:

• Alignment: Recheck pump-motor alignment after all piping is connected to correct any pipe strain.

• NPSH Margin: Calculate the NPSHa of your system and confirm it exceeds the pump's NPSHr with a safe margin.

• Priming: Ensure the pump and suction line are completely filled with liquid and all air has been vented.

• Valves: Confirm the suction valve is fully open and the discharge valve is partially open to prevent the pump from running against a dead head at startup.

Throttle on the Discharge Side Only

Never use a valve on the suction side to control flow. Throttling the suction line creates a massive pressure drop and is a guaranteed way to cause cavitation. Always perform flow control using the discharge valve.

Long-Term Maintenance and Monitoring

Your work isn't done after startup. Regular monitoring helps detect developing issues.

• Listen for unusual noises and monitor vibration levels.

• During scheduled maintenance, inspect the impeller for any signs of pitting or erosion.

• Keep suction strainers and filters clean to prevent blockage that could restrict flow.

• If system conditions change (e.g., higher temperatures or different fluids), re-evaluate your NPSH margin.

Conclusion: Good Installation is Your Best Defense

Cavitation is a destructive force, but it is not inevitable. While it can be a complex hydraulic issue, its prevention often comes down to fundamental installation practices. By focusing on proper suction piping design, ensuring an adequate NPSH margin, and performing careful pre-startup checks, you can create a system that is inherently resistant to cavitation.

A well-installed pump is your best protection against the noise, vibration, and damage that cavitation brings. Treat your installation process with the precision it deserves, and your pump will reward you with smooth, efficient, and long-lasting operation.
