How Pipe Strain Wrecks Pump Alignment and Seal Life

In the world of centrifugal pumps, precision alignment is a top priority. Teams spend hours with lasers and dial indicators to ensure motor and pump shafts are perfectly aligned. Yet, a hidden threat often undoes all that hard work: pipe strain. This external force, transferred from the piping system directly to the pump, is a leading cause of premature equipment failure.

Even a small amount of pipe strain can distort the pump casing, misalign shafts, and destroy mechanical seals. The result is costly downtime, increased maintenance, and a significantly shorter pump lifespan. This article will explain the common causes of pipe strain effects, how to identify them, and the best practices for preventing pipe stress in your system.

What Exactly Is Pipe Strain?

Pipe strain is the mechanical stress exerted on a pump's nozzles or casing when the connected piping is not properly aligned or supported. Instead of the piping system supporting its own weight and accommodating movement, it pulls, pushes, or twists the pump, forcing it out of its natural position.

This stress often originates from a few common sources:

• Thermal Expansion: Pipes expand and contract with temperature changes. Without proper accommodation, this movement transfers directly to the pump flanges.

• Poor Installation: During construction, pipes may be forced to fit the pump nozzles, creating residual stress from day one.

• Inadequate Support: Long pipe runs without sufficient hangers, anchors, or guides will sag, transferring their weight onto the pump.

• Incorrect Bolting: Using flange bolts to pull misaligned pipes together is a guaranteed way to introduce significant strain.

Imagine trying to connect two pipe flanges that are an inch apart. If a technician uses the bolts to wrench them together, the piping and the pump are now under constant stress, pulling them out of alignment.

How Pipe Strain Affects Pump Alignment

A perfectly aligned pump can become severely misaligned the moment strained piping is connected. The pipe strain effects are immediate and damaging, creating a cascade of pump alignment issues.

Direct Shaft Misalignment

When a pipe pulls on a pump nozzle, it physically distorts the casing. This 【soft foot】 condition warps the pump's frame, causing the shaft's centerline to shift. The result is both angular and parallel misalignment between the pump and motor shafts, even if they were perfectly aligned moments before. This misalignment overloads the coupling and puts immense stress on the bearings.

Baseplate Distortion

In severe cases, pipe strain can be strong enough to twist or bend the entire pump baseplate. Once the foundation is compromised, maintaining alignment becomes impossible. No amount of shimming or adjusting the motor can correct a problem rooted in a warped base.

The Impact of Thermal Growth

Pipe strain is not always a static problem. In systems handling hot fluids, thermal expansion causes pipes to grow in length. This growth pushes and pulls on the pump with incredible force, constantly shifting its position. An alignment that was perfect when the system was cold can be completely off once it reaches operating temperature.

The Destructive Impact on Mechanical Seal Life

The mechanical seal is one of the most precise and delicate components in a pump. It is also one of the first victims of pipe strain. Most early mechanical seal failures can be traced back to poor alignment and piping stress.

Seal Face Misalignment

A mechanical seal relies on two perfectly flat, lapped faces running against each other with a microscopic fluid film between them. Pipe strain causes the shaft to deflect, tilting the seal faces. This creates uneven pressure, causing one side to wear down rapidly while the other allows the product to leak.

Increased Vibration

Misalignment from pipe strain is a major source of vibration. This vibration is transmitted down the shaft to the seal, where it can cause the O-rings to fret and lose their sealing ability. It can also lead to fatigue and cracking of the delicate seal faces, resulting in catastrophic failure.

This chain reaction is all too common:

1. Pipe strain causes shaft misalignment.

2. Misalignment generates excessive vibration and heat.

3. Vibration and heat cause the seal faces to wear unevenly and leak.

4. The leak worsens, potentially damaging the shaft and bearings.

Symptoms of Pipe Strain in Your System

Pipe strain is not always obvious, but it leaves clues. Learning to spot these symptoms can help you diagnose problems before they lead to major failures.

• Difficult Bolting: Coupling bolts are hard to insert or remove by hand.

• Visible Flange Gaps: There is a noticeable gap or angular misalignment between pipe and pump flanges before they are bolted together.

• High Vibration Levels: The pump exhibits excessive vibration, especially right after startup.

• Recurring Seal and Bearing Failures: The same pump repeatedly suffers from premature bearing or mechanical seal failure.

• Shifting Alignment Readings: Alignment measurements change significantly after the piping is connected.

Best Practices for Preventing Pipe Stress

Preventing pipe strain is far more effective than trying to correct its consequences. The goal is to install the piping system so that it is self-supporting and mates to the pump without any external force.

1. Align the Pump First, Then Fit the Pipes: Never use the pump as an anchor point to pull piping into place. The final pipe sections should be measured and fabricated to fit the pump’s nozzles perfectly.

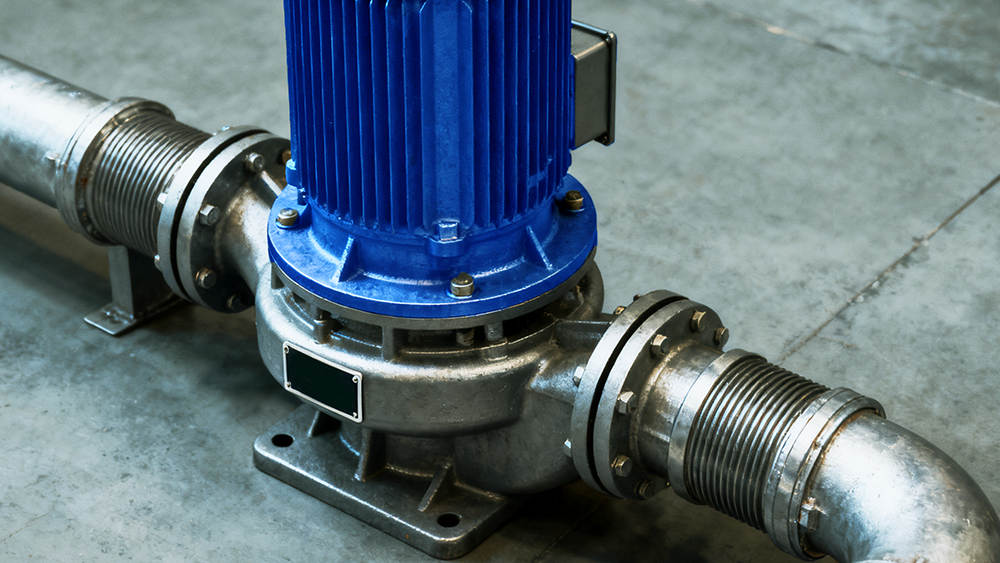

2. Use Flexible Connectors and Expansion Joints: These components are designed to absorb thermal movement and mechanical vibration, isolating the pump from pipe-induced stress.

3. Install Proper Pipe Supports: Use a system of hangers, anchors, and guides to ensure the piping supports its own weight. Supports should be placed close to the pump nozzles on both the suction and discharge sides.

4. Recheck Alignment After Connecting Piping: This is a critical step. Always verify your shaft alignment after the flange bolts are tightened. If the alignment changes, you have a pipe strain problem.

5. Perform a Flange-Bolt Check: A simple way to verify strain is to perform an alignment check, then loosen the pipe flange bolts. If the alignment readings change as the bolts are loosened, strain is present.

Field Verification and Maintenance

Integrating pipe strain checks into your regular pump maintenance routines is essential for long-term reliability.

• Use Precision Tools: Employ dial indicators or laser alignment systems to measure shaft alignment before and after piping is connected.

• Document Everything: Keep detailed records of your alignment readings. This data helps identify gradual changes caused by foundation settling or thermal cycling.

• Train Your Team: Teach operators and technicians to recognize the sounds and vibrations associated with pump alignment issues.

• Inspect After Shutdowns: Always re-inspect alignment after major piping repairs, system modifications, or extended shutdowns, as these events can introduce new stresses.

Conclusion: A Small Strain Leads to Big Consequences

Pipe strain may seem like a minor installation detail, but its effects on pump performance and reliability are enormous. It is a silent killer that undermines even the most robust equipment, leading to a frustrating cycle of repairs and downtime.

By treating pipe installation with the same precision as shaft alignment, you can eliminate this destructive force. Remember the golden rule: pipes should connect to the pump effortlessly. Make preventing pipe stress a core part of your alignment process, not an afterthought. This approach ensures longer seal life, smoother operation, and a more reliable system overall.
