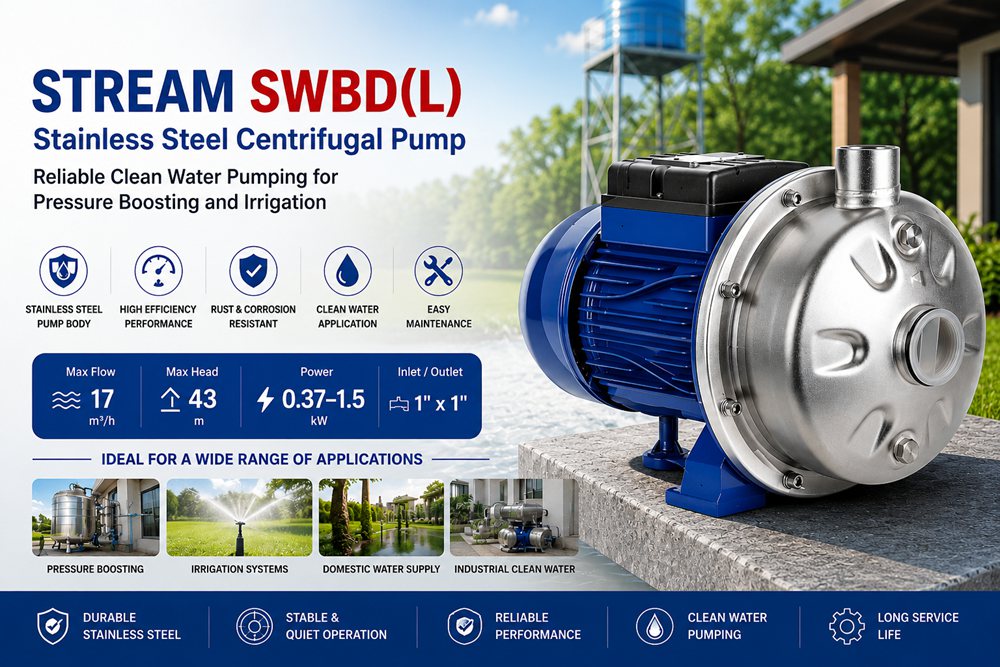

The Stream SWBD(L) is a stainless steel centrifugal pump designed for clean water applications in both household and commercial environments. With all liquid-contacting parts made from stainless steel, the pump provides a combination of corrosion resistance, hygienic water handling, durable construction, and reliable hydraulic performance.
Centrifugal pumps are widely used for water transfer, pressure boosting, irrigation, and general water supply. However, pump material selection becomes increasingly important when long service life, clean water quality, and resistance to corrosion are priorities.
Traditional pumps may use cast iron or mixed-material hydraulic components. While these materials are suitable for many applications, prolonged exposure to water, humidity, and changing operating conditions can eventually lead to corrosion or surface degradation.
The Stream SWBD(L) Stainless Steel Centrifugal Pump addresses this challenge with stainless steel liquid-contacting components and an integrated stainless steel welded hydraulic structure. Designed for civil and industrial pressure boosting, pressure systems, and irrigation, the SWBD(L) offers a practical solution for users who require reliable clean water pumping with enhanced corrosion resistance.
The series covers maximum flow rates from 90 to 250 L/min, maximum heads from 13 to 38 meters, and motor power ratings from 370 to 2200 W, giving installers, distributors, and project buyers multiple options for different water supply requirements.
The Stream SWBD(L) is a surface-mounted centrifugal water pump developed for clean water applications in residential, commercial, agricultural, and light industrial systems.
Its defining feature is the use of stainless steel throughout the main hydraulic components that come into contact with the pumped liquid.
Both the pump channel and impeller are manufactured from stainless steel, helping provide clean and hygienic water handling while improving resistance to corrosion compared with conventional materials used in many general-purpose centrifugal pumps.
The pump is designed for continuous rated duty and can be integrated into water pressure boosting systems, irrigation installations, and other clean water transfer applications requiring dependable operation.
The most important feature of the SWBD(L) is its stainless steel hydraulic construction.
All parts that come into contact with the pumped liquid are made from stainless steel. This reduces the amount of conventional ferrous material exposed directly to the water and provides improved resistance to corrosion.
For clean water applications, stainless steel also offers an important hygiene advantage because the material is resistant to rust and surface deterioration under appropriate operating conditions.
This makes the SWBD(L) particularly suitable for applications where water quality, equipment cleanliness, and long service life are important considerations.
The SWBD(L) uses a stainless steel pump body rather than a conventional cast iron hydraulic housing.
The pump body is continuously exposed to the pumped liquid during operation, making material selection particularly important for long-term reliability.
Stainless steel provides strong resistance to oxidation and corrosion in appropriate clean-water environments, helping maintain the structural condition of the hydraulic casing over extended periods of service.
For distributors and project buyers, greater corrosion resistance can also translate into fewer corrosion-related replacements and lower maintenance requirements over the lifetime of the installation.
The SWBD(L) is equipped with a stainless steel impeller.
The impeller is the primary rotating hydraulic component responsible for transferring mechanical energy from the motor into the pumped water. Its condition therefore directly affects flow, pressure, efficiency, and overall pump performance.
Using stainless steel helps the impeller maintain structural integrity and resist corrosion during prolonged operation in clean water systems.
This contributes to stable hydraulic performance and supports the pump's suitability for regular pressure boosting and irrigation duty.
The SWBD(L) uses an integrated stainless steel welding process in its hydraulic construction.
The purpose of this design is to provide a reliable structural assembly while maintaining consistent performance across the stainless steel hydraulic section.
A stable welded structure helps reduce unnecessary joints and supports mechanical integrity during repeated operating cycles.
For installations requiring frequent or continuous pump operation, construction reliability is an important part of long-term performance.
The SWBD(L) is designed for both household and commercial clean water applications.
Its broad performance range allows the series to cover installations ranging from relatively modest water transfer requirements to higher-volume pressure boosting and irrigation systems.
This versatility makes the SWBD(L) relevant to homeowners, building contractors, irrigation installers, commercial property operators, and distributors serving multiple water pump market segments.
The SWBD(L) is specified for continuous rated duty.
This is an important feature for applications where the pump may need to operate for extended periods, such as irrigation systems, water transfer installations, and pressure boosting networks with sustained demand.
When correctly selected, installed, and operated within its rated conditions, continuous-duty capability provides greater flexibility than pumps intended only for short intermittent operation.
The SWBD(L) uses a closed, externally ventilated motor design.
Effective motor cooling is important because electrical and mechanical components generate heat during pump operation. External ventilation helps remove this heat and supports stable motor temperature during extended operating periods.
Combined with Class B/F insulation and continuous rated duty, the motor configuration supports reliable operation in the pump's intended residential, commercial, and irrigation applications.
The mechanical seal separates the hydraulic section of the pump from the motor assembly and is one of the most important components affecting pump reliability.
The SWBD(L) uses a steatite ceramic and metalized carbon mechanical seal.
This sealing combination is designed to provide a reliable interface during normal operation and help prevent water leakage toward the motor.
Operating the pump within the recommended working conditions and avoiding dry-running are important for maximizing mechanical seal service life.
Water pressure boosting is one of the primary applications of the SWBD(L).
Residential and civil water systems may experience insufficient pressure because of building layout, pipe resistance, distance from the water source, or simultaneous water consumption.
A correctly selected centrifugal pump can increase pressure and improve water delivery throughout the distribution system.
The SWBD(L) combines stainless steel construction with multiple flow and head options, making it suitable for a range of civil pressure boosting installations.
Light industrial and commercial water systems frequently require reliable clean water pressure for process support, washing, equipment supply, or general building services.
The SWBD(L)'s stainless steel hydraulic components make it particularly attractive where corrosion resistance and clean water handling are important.
With models extending up to 2200 W and maximum flow ratings up to 250 L/min, the series can accommodate higher water demand than many small domestic centrifugal pumps.
The SWBD(L) can be integrated into pressure systems where a centrifugal pump is used together with suitable control and pressure management equipment.
Depending on the system design, this may include pressure vessels, switches, electronic controllers, or other components used to maintain the required water pressure.
Its stainless steel hydraulic construction makes the SWBD(L) a practical pump option for systems where clean water quality and corrosion resistance are priorities.
Irrigation systems require both sufficient water volume and adequate pressure to distribute water efficiently across sprinklers, hoses, or irrigation networks.
The SWBD(L) series provides maximum flow rates from 90 to 250 L/min and maximum heads from 13 to 38 meters, giving installers several options for different irrigation requirements.
Its corrosion-resistant stainless steel water-contacting components are also beneficial in agricultural environments where pumping equipment may operate regularly in humid outdoor conditions.
Commercial buildings and facilities regularly require water transfer between tanks, supply networks, equipment systems, and other clean water installations.
The SWBD(L) provides a simple centrifugal pumping solution for these duties while offering the added durability and hygienic advantages of stainless steel hydraulic components.
The Stream SWBD(L) is available in multiple models covering different flow, head, and motor power requirements.
| Parameter | SWBD(L) Series Range |
|---|---|
| Maximum Flow Range | 90–250 L/min |
| Maximum Head Range | 13–38 m |
| Power Range | 370–2200 W |
The exact hydraulic performance varies by model. Pump selection should therefore be based on the required operating duty point rather than only the maximum flow or maximum head value.
The SWBD(L) should be operated within its specified working conditions to maintain reliable performance and expected service life.
| Working Condition | Specification |
|---|---|
| Maximum Ambient Temperature | Up to +40°C |
| Maximum Fluid Temperature | Up to 80°C |
| Maximum Pressure | Up to 10 bar |
| Duty | Continuous Rated |
| Component | Material / Specification |
|---|---|
| Pump Body | Stainless Steel |
| Liquid-Contacting Parts | Stainless Steel |
| Motor Housing | Aluminum |
| Impeller | Stainless Steel |
| Motor | Closed, Externally Ventilated |
| Insulation | Class B/F |
| Mechanical Seal | Steatite Ceramic / Metalized Carbon |
Pump material is one of the major differences between centrifugal pump designs.
Cast iron centrifugal pumps remain suitable for many general water applications, but stainless steel offers several additional advantages where corrosion resistance, cleanliness, and long-term appearance are important.
Improved corrosion resistance in appropriate clean-water environments
Reduced risk of rust affecting liquid-contacting surfaces
Clean and hygienic hydraulic components
Good durability for frequent water pumping
Suitable for residential, commercial, and irrigation installations
For projects where water quality and long service life are important procurement considerations, the additional material advantages of stainless steel can justify choosing a stainless steel centrifugal pump over a conventional mixed-material alternative.
| Cast Iron Centrifugal Pump | Stream SWBD(L) |
|---|---|
| Good mechanical strength | Stainless steel hydraulic construction |
| May develop surface corrosion over time | Higher corrosion resistance |
| Suitable for general water transfer | Designed for clean and hygienic water handling |
| Iron hydraulic surfaces contact water | Liquid-contacting parts are stainless steel |
| Often selected primarily for cost and durability | Adds corrosion resistance and hygiene benefits |
Correct centrifugal pump selection begins with the required operating point.
Flow rate indicates how much water the system needs to deliver over a given period. A small pressure boosting system may require substantially less flow than a commercial irrigation installation.
Head represents the energy the pump must provide to overcome elevation, required outlet pressure, and friction losses through the piping system.
The total required head should therefore include more than vertical lifting height. Pipe length, internal pipe diameter, valves, elbows, fittings, filters, and other hydraulic components all contribute to pressure loss.
Because the SWBD(L) series covers flow ratings from 90 to 250 L/min and head ratings from 13 to 38 meters, different models are intended for different duty requirements.
Selecting the largest motor or highest maximum flow model is not automatically the best solution. A correctly sized centrifugal pump should operate close to the appropriate region of its performance curve for the intended system.
The SWBD(L) is designed for clean water applications including civil and industrial pressure boosting, pressure systems, and irrigation.
Yes. The SWBD(L) is designed for both household and commercial clean-water applications.
Its main distinction is its stainless steel hydraulic construction. The liquid-contacting components, including the pump body and impeller, are made from stainless steel for enhanced corrosion resistance, cleanliness, and service life.
Maximum flow ratings across the SWBD(L) series range from 90 to 250 L/min depending on the selected model.
Maximum head ratings across the series range from 13 to 38 meters depending on model.
The SWBD(L) series covers motor power ratings from 370 to 2200 W.
The SWBD(L) pump body is made from stainless steel.
The impeller is also manufactured from stainless steel.
The pump is rated for fluid temperatures up to 80°C when operating within its specified working conditions.
The maximum pressure specified for the SWBD(L) is 10 bar.
Yes. Irrigation is one of the primary applications specified for the SWBD(L) series.
Yes. The SWBD(L) is specified for continuous rated duty when correctly selected, installed, and operated within its rated conditions.
No. The SWBD(L) is designed for clean water applications. Sewage, wastewater containing solids, slurry, and heavily contaminated liquids require pumps specifically designed for solids handling or wastewater service.
The Stream SWBD(L) Stainless Steel Centrifugal Pump combines reliable centrifugal pumping performance with the corrosion resistance and hygienic advantages of stainless steel hydraulic components.
With all liquid-contacting parts manufactured from stainless steel, an integrated stainless steel welded structure, and a stainless steel impeller, the SWBD(L) is designed for clean water systems where durability, cleanliness, and long service life are important.
The series covers maximum flow rates from 90 to 250 L/min, maximum heads from 13 to 38 meters, and power ratings from 370 to 2200 W, allowing different models to serve civil pressure boosting, industrial pressure systems, irrigation, and commercial water transfer requirements.
For distributors, contractors, irrigation specialists, and project buyers looking for a corrosion-resistant centrifugal pump for clean water service, the Stream SWBD(L) provides a practical combination of stainless steel construction, broad hydraulic performance, and continuous-duty operation.
