The Stream SPSN is a full stainless steel submersible pump engineered for non-aggressive, corrosive water environments including mine dewatering, aquariums, construction sites, and seawater transport. Its full stainless steel construction, vertical discharge design, and float switch deliver reliable, corrosion-resistant performance within a pH range of 4–10 and a maximum immersion depth of 5 meters.

Corrosion is the leading cause of premature submersible pump failure in demanding water environments. For procurement officers and engineering contractors sourcing drainage equipment for mine enterprises, aquariums, construction sites, or seawater transport operations, specifying the wrong pump material does not just shorten equipment lifespan—it generates unplanned downtime, replacement costs, and supply chain disruptions that compound across high-volume deployments.

Standard submersible pumps with cast iron or aluminum housings degrade rapidly when exposed to water with elevated mineral content, salinity, or pH levels outside the neutral range. The corrosion process begins at first contact. Once it takes hold, seal integrity deteriorates, motor performance drops, and full unit replacement becomes inevitable—often far sooner than projected service intervals suggest.

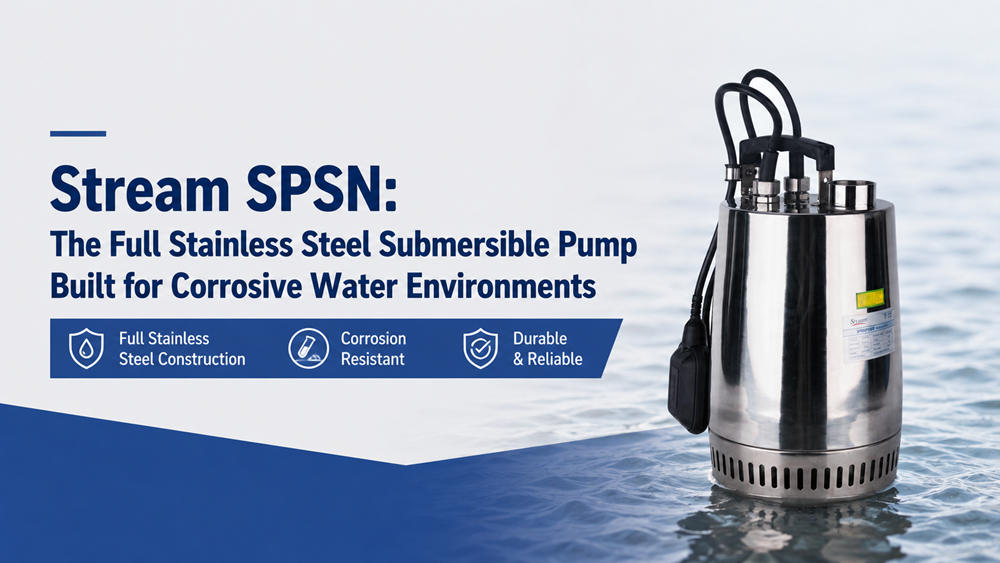

What Is the Stream SPSN Full Stainless Steel Submersible Pump?

The Stream SPSN is a compact, full stainless steel submersible drainage pump designed for the efficient handling of non-aggressive water in corrosive or saline environments. Classified as a drainage pump within Stream Pumps' submersible pump range, the SPSN serves both portable and stationary installation configurations—indoors and outdoors—across a broad range of building and industrial environments.

The pump's defining engineering characteristic is its full stainless steel construction. Every wetted surface component is manufactured from stainless steel, not just the shaft or selected hardware. This material specification distinguishes the SPSN from partial-stainless or standard submersible pumps, which use stainless steel selectively while retaining iron or aluminum components that remain vulnerable to corrosion in saline, mineral-rich, or mildly acidic water.

For distributors and procurement officers evaluating submersible drainage pumps for corrosive clean water applications, the SPSN addresses a specific market gap: a purpose-built, fully corrosion-resistant drainage pump rated for a pH range of 4–10, without the cost and footprint of industrial-grade chemical pumps.

Key Features of the Stream SPSN

Full Stainless Steel Construction for Corrosion Resistance

The SPSN's full stainless steel build covers all components in contact with the pumped liquid. This approach eliminates the partial-corrosion failure modes common in mixed-material pump constructions, where iron or aluminum components degrade while stainless elements remain intact—creating mechanical stress and eventual seal compromise.

In practical deployment terms, full stainless steel construction means the SPSN maintains structural integrity across repeated exposure cycles to saline water, mildly acidic mine drainage, and mineral-rich aquarium water. For procurement officers managing distributed pump fleets across multiple sites, this translates directly to extended service intervals, fewer replacement orders, and lower total cost of ownership compared to standard drainage pumps deployed in equivalent conditions.

The SPSN's pH tolerance of 4–10 is notably broader than the 6.5–8.5 range typical of clean water pumps designed for freshwater applications. This wider operational envelope reflects the full stainless steel specification's capacity to resist corrosion across a greater range of liquid chemistry conditions—making the SPSN suitable for environments where water quality is variable or moderately acidic.

Vertical Discharge for Better Water Cooling and Low Motor Temperature Rise

The SPSN uses a vertical discharge configuration. This design routes discharged water in a manner that improves cooling flow across the motor housing, reducing heat accumulation during operation.

Motor temperature rise is a key reliability factor in submersible pump performance. Excessive heat accelerates winding insulation degradation, shortens bearing life, and increases the probability of thermal shutdown in continuous-duty applications. The SPSN's vertical discharge geometry addresses this by optimizing the thermal environment around the motor, supporting stable performance across extended operating periods.

For applications requiring sustained drainage operation—mine dewatering, construction site water management, or aquarium system pumping—the thermal efficiency of the vertical discharge design contributes directly to operational reliability and reduced maintenance frequency.

Float Switch for Automatic Operation

The SPSN is equipped with a float switch, enabling automatic start and stop operation based on water level. When liquid rises to the activation threshold, the pump starts. When the level drops to the lower threshold, the pump stops automatically.

Automatic operation reduces the need for continuous manual supervision, a practical advantage in mine enterprise dewatering, construction site drainage, and any application where pump deployment locations are not under constant human observation. The float switch also prevents dry-run conditions by stopping the pump before the liquid level drops below safe operating depth—protecting the motor and mechanical seals from dry-running damage.

For distributors supplying to contractors and site managers, the float switch capability simplifies installation and reduces ongoing labor costs associated with manual pump monitoring.

What the Stream SPSN Is NOT Designed For

Accurate product specification requires as much clarity on exclusions as on capabilities. The Stream SPSN is engineered for non-aggressive clean water environments. It is not a sewage pump and is not suitable for aggressive chemical liquids.

The SPSN should not be specified for:

• Sewage or wastewater containing solids above 2mm — The SPSN is rated for suspended solids passage of less than 2mm. Sewage applications involving organic solids, fibrous material, or larger debris require a dedicated sewage pump or grinder pump with appropriate impeller and casing geometry.

• Aggressive chemical liquids — The SPSN is rated for a pH range of 4–10, which accommodates a broad range of non-aggressive water conditions. Strongly acidic liquids (pH below 4) or strongly alkaline liquids (pH above 10) fall outside the pump's material compatibility and will cause accelerated corrosion and mechanical failure.

• Oils, fuels, or flammable liquids — The SPSN is a clean water drainage pump. It is not rated for hydrocarbon or flammable liquid applications.

Specifying the SPSN within its rated parameters ensures full performance delivery and protects against premature failure. For sewage applications, Stream Pumps offers dedicated sewage pumps and grinder pumps. For aggressive chemical media, contact Stream Pumps' technical team to confirm appropriate product selection.

Ideal Applications for the Stream SPSN

Mine Enterprise Dewatering

Mining operations consistently generate water accumulation in underground and open-pit environments. Mine water typically carries dissolved minerals and may present pH values below the neutral range—conditions that rapidly degrade standard drainage pumps. The SPSN's full stainless steel construction and pH tolerance of 4–10 make it a durable and reliable specification for mine dewatering applications where water chemistry is variable and corrosion exposure is continuous.

Aquarium Systems

Commercial and large-scale aquarium operations require drainage and water management equipment that can withstand sustained exposure to saline water and the biological compounds present in marine environments. Standard pump materials corrode in these conditions, introducing contamination risk and requiring frequent replacement. The SPSN's full stainless steel wetted surfaces resist salt-induced degradation while maintaining the material integrity required for aquatic life environments.

Construction Site Drainage

Construction sites generate groundwater infiltration, rainwater accumulation, and process water that must be continuously managed to maintain safe working conditions and schedule compliance. Water quality on construction sites is often variable, containing dissolved minerals and suspended fine particles. The SPSN's full stainless steel construction and automatic float switch operation support reliable, low-supervision drainage across the variable conditions typical of active construction environments.

Seawater Transport

Marine and coastal infrastructure operations, aquaculture facilities, and industrial seawater intake systems require pumping equipment rated for continuous saline contact. Seawater pH typically falls between 7.8 and 8.3—well within the SPSN's rated pH range of 4–10. Full stainless steel construction ensures the pump maintains performance integrity across extended seawater exposure cycles without the corrosion-related degradation that shortens the service life of standard drainage pumps in marine applications.

Working Conditions and Technical Specifications

The SPSN's rated operating parameters define the conditions within which the pump delivers reliable performance. Operating the pump outside these parameters will compromise seal integrity, motor performance, and service life.

The 5-meter maximum immersion depth covers the majority of mine sump, construction pit, aquarium system, and seawater intake applications without requiring specialized deployment rigging. The 0–40°C liquid temperature range accommodates both cold-climate and tropical operating environments.

The pH scope of 4–10 is the SPSN's most differentiating technical specification relative to standard clean water submersible pumps. Most freshwater drainage pumps are rated for pH ranges of 6.5–8.5. The SPSN's extended lower pH tolerance—down to 4—reflects the full stainless steel construction's resistance to mildly acidic water chemistry, making it suitable for mine drainage and industrial water environments where standard pumps would not maintain long-term material integrity.

The suspended solids limit of less than 2mm confirms the SPSN is designed for clean water drainage, not sewage or slurry applications. Water containing particles larger than 2mm will cause impeller and casing wear that degrades pump performance and voids the product warranty.

Why Choose Full Stainless Steel Over Standard Submersible Pumps?

The case for full stainless steel construction rests on the compounding cost of corrosion over a pump's operational lifecycle. Standard submersible drainage pumps use cast iron, aluminum, or mixed-material constructions that perform adequately in freshwater at neutral pH. Deploy those same pumps in mine water, seawater, or mineral-rich aquarium systems, and material degradation begins at first contact.

The progression is predictable. Corrosion compromises the impeller surface, reducing hydraulic efficiency. It weakens the casing structure, creating stress points that accelerate mechanical fatigue. It attacks shaft integrity, generating vibration that wears bearings and mechanical seals prematurely. Once the seal fails in a corrosive liquid environment, motor damage follows rapidly.

Full stainless steel construction interrupts this progression at every stage. By specifying a material that resists electrochemical degradation across the SPSN's rated pH and salinity range, the pump maintains hydraulic performance, structural integrity, and seal protection over a service life substantially longer than standard drainage pumps in equivalent conditions.

For procurement officers evaluating total cost of ownership across high-volume deployments or distributed pump fleets, the comparison is straightforward. A standard pump at lower unit cost that requires replacement every 12–18 months in a corrosive application delivers a higher total fleet cost than a full stainless steel unit with a longer service interval. The SPSN's full stainless steel specification reduces replacement frequency, lowers maintenance labor costs, and minimizes supply chain disruptions from unexpected pump failures.

Frequently Asked Questions About the Stream SPSN Full Stainless Steel Submersible Pump

What makes the Stream SPSN different from a standard submersible drainage pump?

The SPSN uses full stainless steel construction across all wetted components, not just selected hardware or the shaft. This material specification provides corrosion resistance across a pH range of 4–10—significantly broader than the 6.5–8.5 range typical of standard clean water submersible pumps. The result is a drainage pump rated for mine water, seawater, aquarium systems, and other mildly acidic or saline environments where standard pumps deteriorate rapidly.

Can the Stream SPSN be used for seawater pumping?

Yes. Seawater pH typically falls between 7.8 and 8.3, which is well within the SPSN's rated pH scope of 4–10. The full stainless steel construction resists salt-induced corrosion across sustained seawater exposure cycles. The SPSN is suitable for seawater transport and marine drainage applications where water does not contain aggressive chemical media or suspended solids larger than 2mm.

Is the Stream SPSN suitable for sewage applications?

No. The SPSN is engineered for non-aggressive clean water only. It is rated for suspended solids passage of less than 2mm and is not designed to handle sewage, organic solids, fibrous material, or wastewater containing larger particles. For sewage applications, Stream Pumps offers dedicated sewage pumps and grinder pumps designed for those specific conditions.

What pH range of water can the Stream SPSN handle?

The SPSN is rated for a liquid pH scope of 4–10. This range accommodates mildly acidic mine drainage, neutral freshwater, and saline seawater. The pump is not suitable for strongly acidic liquids (pH below 4) or strongly alkaline liquids (pH above 10), which fall outside the material compatibility of even full stainless steel construction.

How does the float switch work on the Stream SPSN?

The float switch automatically starts the pump when liquid rises to the activation water level and stops it when the level drops to the lower threshold. This enables unattended automatic operation without continuous manual supervision—a practical advantage for mine enterprise dewatering, construction site drainage, and other applications where pump installation points are not under constant observation. The float switch also protects the motor from dry-run conditions by stopping the pump before the liquid drops below safe operating depth.
