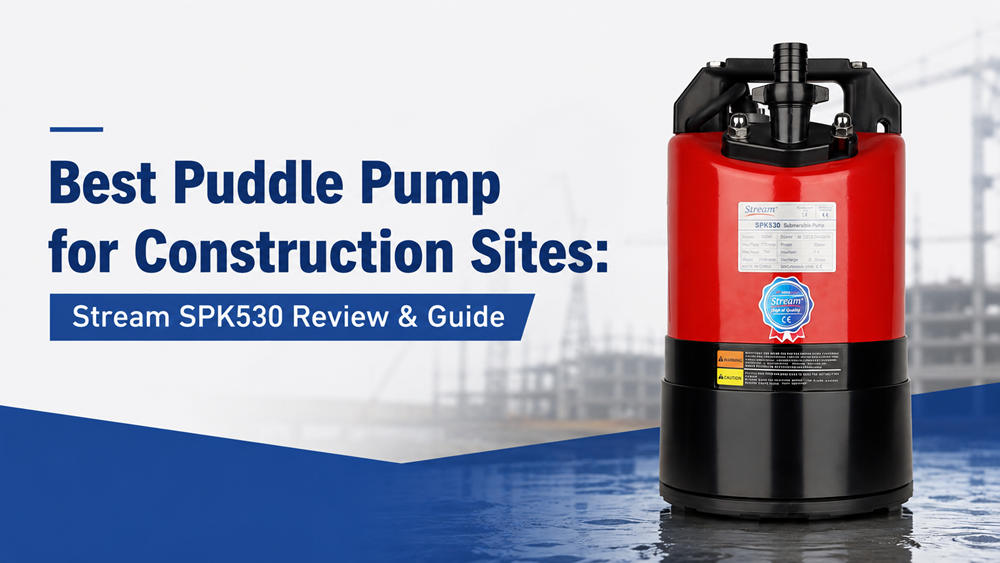

Best Puddle Pump for Construction Sites: Stream SPK530 Review & Guide

The Stream SPK530 is a portable submersible puddle pump engineered for emergency drainage on flat construction surfaces where no sump is available. Its defining capability is draining water to a residual depth of less than 1mm. Key features include an exclusive one-way valve, adjustable discharge direction, motor overheating protection, and an automatic float switch variant (SPK530A).

Flat surfaces don't drain themselves. On construction sites, rooftops, car parks, and basement floors, water has nowhere to go—no sump, no slope, no gradient to work with. After heavy rainfall or an emergency flooding event, even a thin layer of standing water delays work, creates slip hazards, and risks structural damage if left unaddressed.

Standard dewatering pumps solve part of the problem. They remove the bulk of the water efficiently. But most cannot handle the final stage: the residual puddle that sits flat against the surface after the main volume has been pumped out. That last layer—often just a few millimeters deep—is where productivity stalls. Workers are left waiting, or worse, pressing on with unsafe conditions underfoot.

The Stream SPK530 Submersible Residue Dewatering Puddle Pump is purpose-built for exactly this scenario. It drains water to a residual depth of less than 1mm, handles emergency drainage across a wide range of construction and civil applications, and includes features specifically designed for field-use practicality: adjustable discharge direction, a built-in one-way valve, motor overheating protection, and an optional automatic float switch.

This guide covers everything procurement officers, contractors, builders, and rental companies need to evaluate the SPK530—features, applications, technical specifications, model comparison, and how it performs against standard dewatering alternatives.

Key Features of the Stream SPK530 Puddle Pump

1mm Low Water Level Suction Capability

The SPK530's primary technical distinction is its ability to draw water down to a residual depth of less than 1mm. This is not a marginal improvement over standard dewatering pumps—it represents a fundamentally different suction design. Where conventional submersible pumps lose prime and cease pumping at water depths of 20–50mm or more, the SPK530 continues operating until the surface is effectively dry.

For contractors and concrete workers operating on flat slabs, this means no manual squeegee work, no waiting periods, and no compromised surface conditions before the next phase of work begins.

Exclusive One-Way Valve — No Backflow

The SPK530 is equipped with an exclusive one-way valve that prevents water from surging back through the pump once it has been discharged. On sites where the pump is repositioned or powered down before the hose is disconnected, backflow can return significant volumes of water to the work area. The one-way valve eliminates this risk entirely, ensuring that water pumped out stays out.

Adjustable Discharge Direction — Vertical to Horizontal

Using a standard socket wrench, the SPK530's discharge outlet can be repositioned from vertical to horizontal. This is a practical field feature. Hose routing on construction sites is rarely straightforward—walls, equipment, and confined access points frequently make a fixed vertical outlet impractical. The ability to redirect the discharge without additional fittings or adapters reduces setup time and eliminates the hose kinking that reduces pump efficiency.

Durable and Wear-Resistant Construction

The SPK530 is built for repeated deployment across demanding site conditions. Its construction prioritizes wear resistance and stable performance under the physical stresses of construction environments—abrasive water, irregular surfaces, and frequent handling. For rental companies and contractors who cycle equipment across multiple sites, durability directly affects total cost of ownership.

Auto Float Switch — SPK530A Model

The SPK530A variant incorporates an automatic float switch that starts and stops the pump in response to water level changes. When water rises to the activation level, the pump starts automatically. As the level drops, it stops. This removes the need for manual supervision and protects the motor from dry-running—a common cause of premature pump failure in unattended drainage operations.

Motor Overheating Protection

All SPK530 models include built-in motor overheating protection. If operating temperature exceeds safe limits during extended pumping operations, the protection system activates to prevent motor burnout. Once the motor cools, it can resume operation. This feature is particularly relevant in high-ambient-temperature environments and for applications involving continuous or extended pumping cycles.

What Are the Ideal Applications for the Stream SPK530?

The SPK530 is designed for situations where water sits on flat surfaces with no sump available and must be removed completely. Its low water level suction capability makes it the correct tool for final-stage drainage—after a standard dewatering pump has removed the main volume.

Construction sites: Flat slab drainage after rain events, water removal from formed concrete areas, and site preparation for subsequent trades. The SPK530 is suited for contractors, builders, and concrete workers operating across all construction phases.

Basements and cellars: Residual water in below-grade spaces—whether from groundwater ingress, pipe failure, or surface flooding—can be fully removed without the manual effort that standard pumps leave behind. The associated YouTube video, "Quickly Drain Your Basement: The Ultimate Puddle Pump Solution!" (available on the Stream Pumps YouTube channel), demonstrates this application directly.

Car parks and rooftops: Large, flat surfaces with minimal drainage gradient accumulate standing water that standard pumps cannot fully clear. The SPK530 handles both the volume and the residual layer.

Garages and roadways: Water on traffic surfaces creates slip and safety hazards. Complete drainage—not just partial—is the operational requirement, and the SPK530's sub-1mm suction delivers it.

Rental companies: The SPK530's durability, simple discharge adjustment, and practical portability make it well-suited to rental fleet applications where equipment is deployed repeatedly across varied sites by different operators.

Working Conditions & Technical Specifications

Maximum immersion depth of 5m confirms the SPK530 is suitable for use in below-grade applications, including deep basements and underground construction areas.

Liquid temperature range of 0–40°C covers the full spectrum of ambient groundwater and surface water conditions encountered on construction sites in most climates. The SPK530 is not designed for elevated-temperature industrial liquids.

pH scope of 6.5–8.5 positions the SPK530 for standard water drainage. Highly acidic or alkaline liquids fall outside this range and require a different pump specification.

Suspended solids passage of less than 6mm allows the SPK530 to handle mildly contaminated water carrying fine particles—common on construction sites where surface water picks up concrete dust, sediment, and grit. It is not designed for water with large debris or solid waste; for those applications, Stream Pumps offers the SPT Submersible Trash Pump and the KBZ Heavy-Duty Manual Submersible Effluent Pump.

SPK530 vs SPK530A — Which Model Should You Choose?

The SPK530 and SPK530A are mechanically identical in their core pump design. The differentiating factor is the automatic float switch included in the SPK530A.

Choose the SPK530 (manual) when:

• An operator is present and actively managing the drainage operation

• The pumping scenario requires continuous operation regardless of water level fluctuations

• The application involves draining to a specific point under direct supervision

Choose the SPK530A (automatic) when:

• The pump will operate unattended for extended periods

• Water levels fluctuate and require a responsive start/stop cycle

• Motor protection from dry-running is a priority

• The site requires overnight or off-shift drainage without staffing

For rental companies supplying equipment to varied customer types, the SPK530A offers broader applicability. Customers who do not require automation can simply override the float switch if needed, whereas customers who need automatic operation cannot retrofit it to a manual model.

Why Choose the Stream SPK530 Over Standard Dewatering Pumps?

Standard submersible dewatering pumps are designed to move large volumes of water efficiently. They excel in that function. The limitation is residual depth: most standard pumps lose effective suction at water levels well above 1mm, leaving a layer of standing water that requires manual removal or simply gets left behind.

The SPK530 addresses the complete drainage requirement—not just the bulk volume, but the final layer. This distinction matters in several operational contexts:

Concrete and finishing work: Surface water left on a slab before finishing trades arrive delays work, affects material adhesion, and requires additional surface preparation. The SPK530 removes the condition entirely.

Safety compliance: Standing water on construction sites is a slip hazard. Health and safety requirements on managed sites increasingly mandate complete water removal, not just partial drainage.

Enclosed spaces: In cellars, basements, and car parks, residual water promotes mold growth, accelerates surface degradation, and creates ongoing maintenance costs. Thorough drainage at the point of the flooding event reduces downstream remediation expense.

Discharge flexibility: The adjustable outlet direction is a feature standard puddle pumps frequently omit. On constrained sites, the ability to redirect discharge horizontally—using only a socket wrench—prevents hose kinking and maintains pump efficiency without additional equipment.

The one-way valve is another differentiator. Backflow is an underappreciated problem in field dewatering. When a pump is repositioned or powered down mid-operation, backflow through the hose returns water to the work area. The SPK530's exclusive one-way valve prevents this, protecting the work already done.

For procurement officers evaluating the SPK530 against alternative models, the relevant comparison is not flow rate in optimal conditions—it is effective residual depth under real site conditions. On that measure, the SPK530 operates in a category that most standard dewatering pumps do not reach.

For applications requiring a different capacity profile, Stream Pumps' Construction Pump range also includes the SPK450 Submersible Residue Dewatering Pump. For higher-solid-content water, the SPT Submersible Trash Pump and KBZ Heavy-Duty Manual Submersible Effluent Pump are available as complementary options.

Frequently Asked Questions

What makes the Stream SPK530 different from a standard submersible dewatering pump?

The Stream SPK530 is specifically engineered to drain water to a residual depth of less than 1mm on flat surfaces where no sump is available. Standard submersible dewatering pumps lose effective suction well above this depth, leaving residual water that must be manually removed. The SPK530 also includes an exclusive one-way valve to prevent backflow and an adjustable discharge direction—features not commonly found on standard dewatering pumps.

Can the SPK530 handle water with sediment or fine particles?

Yes. The SPK530 is rated for water containing suspended solids with a passage size of less than 6mm. This covers fine sediment, concrete dust, and grit commonly encountered in construction site water. For water carrying larger debris or solid waste, Stream Pumps recommends the SPT Submersible Trash Pump or the KBZ Heavy-Duty Manual Submersible Effluent Pump.

What is the difference between the SPK530 and the SPK530A?

The SPK530A includes an automatic float switch that starts and stops the pump based on water level. The SPK530 is a manual model without this feature. Choose the SPK530A for unattended or extended pumping operations. Choose the SPK530 for supervised applications or when continuous operation is required regardless of water level.

How do you adjust the discharge direction on the SPK530?

The discharge outlet can be repositioned from vertical to horizontal using a standard small socket wrench. No additional fittings or adapters are required. This adjustment reduces hose kinking in constrained site configurations and is reversible in the field.

What is the maximum immersion depth for the SPK530?

The Stream SPK530 has a maximum immersion depth of 5 meters, making it suitable for below-grade applications including deep basements and underground construction areas.

Is the SPK530 suitable for use in acidic or alkaline water conditions?

The SPK530 is rated for liquids with a pH scope of 6.5–8.5. It is appropriate for standard groundwater, rainwater, and typical surface water drainage. Highly acidic or alkaline liquids outside this range require a different pump specification.

Is the SPK530 suitable for rental fleet use?

Yes. The SPK530's durable, wear-resistant construction, portable design, and field-practical features—including the adjustable discharge direction—make it well-suited to rental fleet applications. The SPK530A variant is particularly appropriate for rental customers who require automatic operation across varied site conditions.
