Stream SGW Stainless Steel Dirty Water Submersible Pump for Home & Garden

Dirty-water drainage around the home and garden does not always require a heavy industrial sewage pump.

Many everyday applications involve water containing leaves, small plant material, light organic debris and other suspended solids rather than sewage or highly abrasive slurry.

Typical examples include garden ponds, flooded yards, building pits, neglected swimming pools and outdoor drainage areas.

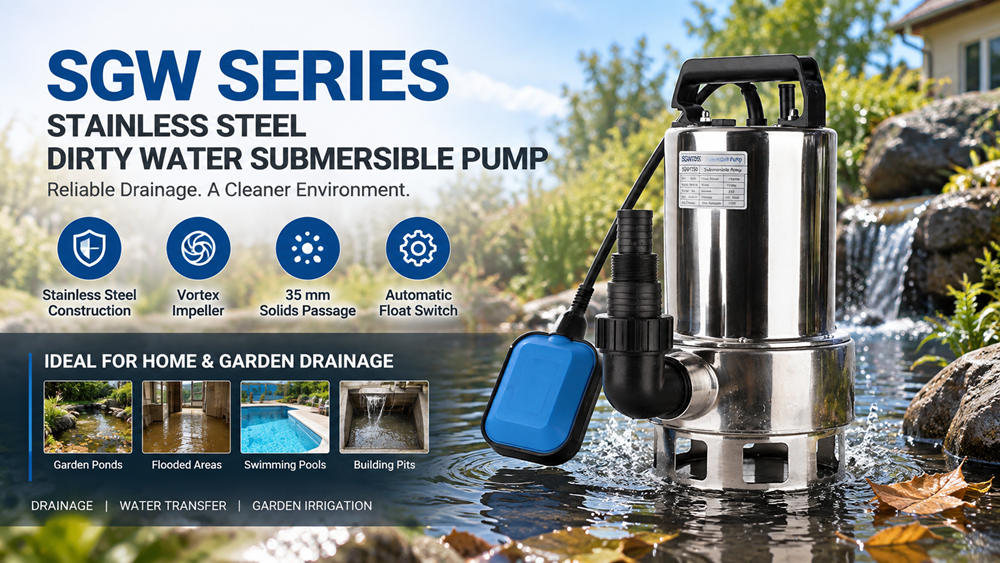

The Stream SGW Stainless Steel Dirty Water Submersible Pump is designed for these jobs.

It combines the familiar portability and automatic operation of a household drainage pump with an all-stainless steel body for improved durability, corrosion resistance and structural strength.

Equipped with a vortex impeller, automatic float switch and solids passage up to 35 mm, the SGW provides a practical upgrade for homeowners and garden users who want a more robust alternative to a conventional plastic dirty-water pump.

What Is the Stream SGW?

The Stream SGW is a portable stainless steel submersible pump designed primarily for dirty-water drainage around homes, gardens and light-duty outdoor applications.

Because the pump operates fully submerged, it can be placed directly into the water without requiring suction priming.

The SGW is suitable for applications including:

• Garden pond drainage

• Flooded basements

• Flooded yards and outdoor areas

• Building pits

• Swimming pools containing leaves or debris

• Water tank drainage

• Garden irrigation

• Plant watering

Why Choose Stainless Steel for a Dirty Water Pump?

Many entry-level dirty-water submersible pumps use thermoplastic housings.

Plastic pumps are lightweight and economical, which makes them very suitable for occasional household drainage.

The SGW uses an all-stainless steel pump body instead.

This gives the pump several practical advantages:

• Improved corrosion resistance

• Greater structural rigidity

• More robust external protection

• Better resistance to everyday knocks and handling

• Premium appearance

• Good suitability for repeated household and garden use

For users who expect to use a drainage pump regularly, stainless steel can provide an attractive balance between portability and durability.

SGW vs SPB: What Is the Difference?

The SGW and Stream SPB belong to the same general household dirty-water pump category.

Both are designed for water containing leaves, small debris and compatible suspended solids, and both use a vortex impeller with solids passage up to approximately 35 mm.

The main difference is construction material.

How Does a Vortex Impeller Handle Dirty Water?

The vortex impeller is one of the most important components of the SGW.

Instead of forcing every solid particle directly through narrow impeller passages, a vortex impeller creates a rotating mass of water inside the pump casing.

This swirling flow carries compatible solids toward the discharge.

Because fewer contaminants need to pass directly through narrow hydraulic passages, the risk of blockage is reduced.

This makes vortex pumps particularly useful for water containing:

• Leaves

• Small plant fragments

• Organic debris

• Small suspended solids

• Contaminated rainwater

35 mm Solids Passage

The SGW is specified for solid particles up to approximately 35 mm under suitable operating conditions.

This is significantly larger than the particle passage of a typical clean-water pump.

The larger free passage makes the SGW suitable for garden ponds and outdoor drainage areas where leaves and small debris may enter the water.

However, 35 mm solids handling does not mean the pump can process every type of debris.

Large stones, metal objects, heavy gravel and highly abrasive slurry should not be intentionally pumped.

Dirty Water Pump Is Not the Same as a Sewage Pump

The SGW is a dirty-water drainage pump, not a sewage grinder pump.

This distinction is important.

Dirty-water pumps are designed to pass compatible solids through relatively large hydraulic passages.

Sewage grinder pumps are designed to actively cut or grind fibrous waste such as cloth, wipes and other sewage contaminants.

For septic tanks, toilet wastewater and heavily fibrous sewage, a dedicated sewage or grinder pump should be used instead.

Garden Pond Drainage

Garden ponds are one of the most natural applications for the SGW.

Even a well-maintained pond can contain leaves, algae, small branches and plant fragments.

These materials can quickly block a clean-water pump.

The SGW's vortex impeller and 35 mm solids passage provide better tolerance to this type of contamination.

The pump can therefore be used when a pond needs to be emptied for cleaning, maintenance or landscaping.

Flooded Basement Drainage

Basements can flood because of heavy rain, groundwater ingress, broken pipes or drainage-system problems.

If the water contains small debris, a dirty-water pump can be more suitable than a clean-water drainage pump.

The SGW can be positioned directly in the flooded area and connected to a suitable discharge hose.

Electrical safety must always be checked before entering any flooded space.

Flooded Garden and Yard Drainage

Outdoor flooding frequently contains leaves, soil fragments and other debris.

This makes dirty-water pumping capability particularly useful.

The SGW can help remove standing rainwater from:

• Low garden areas

• Patios

• Yards

• Drainage pits

• Other suitable flooded areas

Swimming Pool Drainage

A normal swimming pool with clear treated water can be drained using a clean-water pump.

However, pools that have been left uncovered may accumulate leaves and other debris.

In these conditions, the SGW dirty-water pump provides greater solids tolerance.

Pump selection should therefore be based on the actual condition of the water rather than simply whether the application is called a swimming pool.

Building Pit Drainage

Stream also lists building pits as an application for the SGW.

Temporary pits can collect rainwater and small amounts of debris during light construction work.

The SGW can be used where the water remains within its solids-handling and operating limits.

For heavy sand, gravel or abrasive construction slurry, a dedicated construction dewatering pump is more appropriate.

Garden Irrigation and Plant Watering

The SGW is not limited to removing unwanted water.

It can also transfer suitable water for garden irrigation and plant watering.

For example, water collected in a pond or outdoor tank can be pumped through a hose to garden areas provided the water condition and pump performance are suitable.

Automatic Float Switch

The SGW includes an automatic float switch.

The float rises and falls with the surrounding water level.

When the water reaches the required level, the float can start the pump automatically.

As the water level falls, the float eventually switches the pump off.

This makes the SGW useful in locations where water may accumulate gradually rather than all at once.

Why Automatic Operation Matters

A household drainage pump may be used in a basement, drainage pit or other location where water level changes over time.

Without automatic control, the homeowner needs to repeatedly monitor the pump.

A float switch allows the pump to respond automatically to rising and falling water levels.

It also helps reduce the risk of unnecessary dry running when installed correctly.

Multiple Hose Adapters

The SGW is supplied with a connection arrangement suitable for multiple common hose sizes.

This improves versatility because household drainage hoses can vary considerably in diameter.

Using an appropriately sized discharge hose can also improve actual pump performance.

Why Hose Diameter Matters

A small discharge hose creates more hydraulic resistance than a large hose.

As hose length increases, friction losses also increase.

This can significantly reduce the flow reaching the final discharge point.

For faster drainage, use the largest practical hose diameter compatible with the pump connection and application.

Thermal Motor Protection

The SGW includes a thermal protector to provide additional motor protection.

If abnormal operating conditions cause excessive motor temperature, the thermal protector can help prevent permanent motor damage.

This should still be considered a backup protection feature.

Blocked hydraulic passages, inappropriate solids and dry running should always be avoided.

SGW Working Conditions

Stainless Steel vs Plastic Dirty Water Pumps

Both stainless steel and plastic pumps can perform household drainage effectively.

The best choice depends on the user's priorities.

SGW vs SGP: Dirty Water or Clean Water?

The stainless steel bodies of the SGW and SGP can make the two pumps appear similar, but they are designed for different water conditions.

The SGP is a clean-water pump with particle passage up to approximately 5 mm.

The SGW is a dirty-water pump with a vortex impeller and solids passage up to approximately 35 mm.

Which Stream Household Submersible Pump Should You Choose?

Stream offers several household drainage pumps with different material and solids-handling characteristics.

Can the SGW Pump Clean Water?

Yes.

A dirty-water pump can normally transfer clean water as well.

However, if the application always involves clean water, a dedicated clean-water model such as the SGP may be the more appropriate choice.

Can the SGW Handle Leaves?

Yes, compatible leaves and small organic debris are typical examples of the type of contamination a dirty-water vortex pump is designed to handle.

The actual debris should still remain within the pump's hydraulic passage and operating limits.

Can the SGW Pump Mud?

Lightly contaminated water may be acceptable, but the SGW should not be treated as a heavy slurry pump.

Large quantities of abrasive sand or mud can accelerate wear on the impeller, casing and mechanical seal.

Can the SGW Be Used as a Sewage Pump?

No.

For domestic sewage containing toilet waste, cloth, wipes and fibrous contaminants, use a dedicated sewage or grinder pump.

Is Stainless Steel Always Better Than Plastic?

Not necessarily.

Plastic pumps are lighter and often more economical.

Stainless steel becomes attractive when the user values increased rigidity, a more durable outer body and a premium corrosion-resistant construction.

Installation Tips

Use the Correct Discharge Hose

Choose a hose size compatible with the pump outlet and required flow.

Keep the Float Switch Free

Make sure the float can move without contacting walls, pipes or other obstacles.

Do Not Place the Pump in Heavy Sediment

If possible, position the pump on a stable surface above thick mud or accumulated grit.

Never Lift the Pump by the Power Cable

Use the pump's handle or appropriate lifting method.

Rinse the Pump After Dirty-Water Use

After draining a pond or contaminated area, rinsing the pump with clean water can help remove organic residue before storage.

Frequently Asked Questions About the Stream SGW

What is the Stream SGW?

The SGW is an all-stainless steel dirty-water submersible pump designed primarily for household, garden and light drainage applications.

What type of impeller does it use?

The SGW uses a vortex impeller designed to improve solids passage and reduce clogging in dirty-water applications.

What is the maximum particle size?

The specified maximum particle size is approximately 35 mm.

What is the maximum submersion depth?

The specified maximum submersion depth is 8 meters.

What is the maximum liquid temperature?

The specified maximum liquid temperature is 35°C.

Does the SGW have automatic operation?

Yes. It includes an automatic float switch for water-level-controlled start and stop.

Can the SGW drain a garden pond?

Yes. Garden ponds are one of the primary intended applications.

Can it drain flooded areas?

Yes. Stream lists flooded areas among its main applications.

Can it pump water containing leaves?

The vortex impeller and 35 mm solids passage make the SGW suitable for compatible leaves and small debris within the pump's operating limits.

Can it be used for garden irrigation?

Yes. Garden irrigation and plant watering are among the applications specified for the series.

What protection class does the pump have?

The SGW is specified as IPX8 for submerged operation.

What power supply does it use?

The official product specification lists 230V / 50Hz single-phase power.

Is SGW better than SPB?

The two pumps serve similar dirty-water applications. The main advantage of SGW is its all-stainless steel construction, while SPB prioritizes lighter weight and more economical thermoplastic construction.

Stream SGW: A More Durable Dirty Water Pump for Everyday Home and Garden Use

The Stream SGW takes a familiar household dirty-water pump concept and upgrades it with an all-stainless steel body.

Its basic job remains simple: remove dirty water containing leaves, small plant material and compatible solids from ponds, flooded areas, pits and other household or garden locations.

A vortex impeller and solids passage up to 35 mm help reduce blockage risk, while the automatic float switch provides convenient water-level-controlled operation.

The stainless steel body adds greater structural rigidity, corrosion resistance and external durability compared with a basic plastic drainage pump.

With IPX8 protection, 8 m maximum submersion depth, thermal motor protection and multiple hose connection options, the SGW provides a practical solution for homeowners who want the versatility of a conventional dirty-water pump with a more robust metal construction.

For garden ponds, flooded basements, outdoor drainage, building pits and garden water transfer, the Stream SGW offers a durable stainless steel alternative to lightweight plastic dirty-water pumps.
