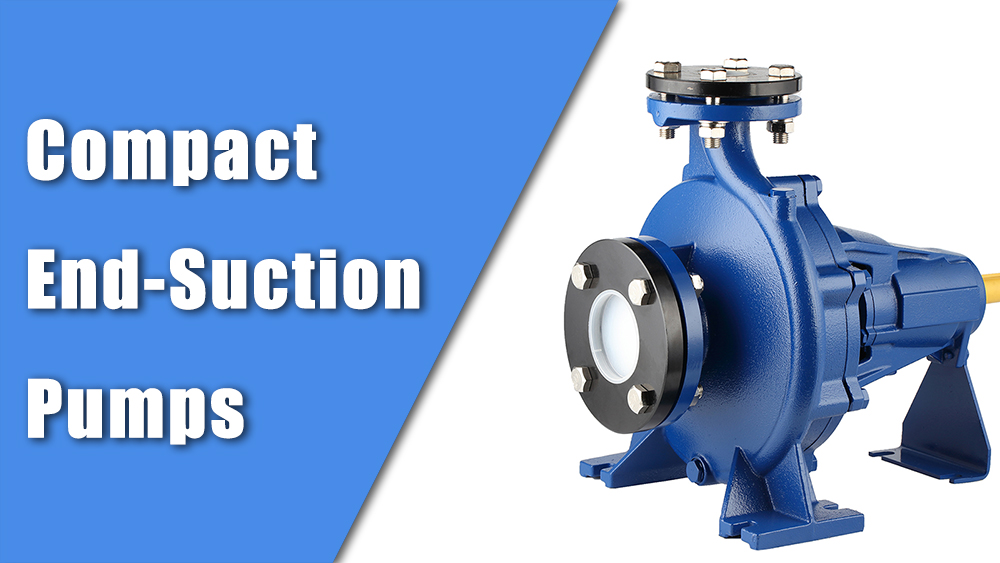

Compact End-Suction Pumps: The Smart Solution for Space-Constrained Industrial Sites

Modern industrial facilities face an increasingly common challenge: maximizing operational efficiency while working within tighter physical constraints. As property costs soar and facility designs become more compact, engineers and facility managers must find innovative ways to fit essential equipment into limited spaces. This is where compact end-suction pumps shine as game-changing solutions.

These space-saving industrial pumps deliver the same performance as their larger counterparts while occupying significantly less floor space. Whether you're managing a cramped utility room, retrofitting an existing facility, or designing a new plant with spatial limitations, compact end-suction pumps offer the efficiency and reliability your operations demand without compromising your available real estate.

What Are Compact End-Suction Pumps?

Compact end-suction pumps represent an evolution in pump design, engineered specifically to address the spatial challenges of modern industrial facilities. Unlike standard end-suction pumps, these units feature a reduced footprint achieved through innovative design modifications that maintain hydraulic performance while minimizing physical dimensions.

The key difference lies in their optimized impeller design and streamlined volute casing. Engineers have developed these pumps with shorter shaft configurations and more efficient bearing arrangements, allowing for closer-coupled motor mounting. This design approach reduces the overall length of the pump assembly by up to 30% compared to traditional models.

For installation purposes, this compact footprint translates into significant advantages. Facility managers can position these pumps in areas previously considered too small for centrifugal pump installations. The reduced space requirements also simplify piping layouts, often eliminating the need for complex routing around obstacles.

Key Applications in Space-Constrained Industrial Sites

Manufacturing Plants with Limited Utility Rooms

Manufacturing facilities often inherit existing buildings with utility spaces that weren't designed for modern equipment demands. Compact end-suction pumps excel in these environments, fitting into basement mechanical rooms, repurposed storage areas, and tight equipment corridors. Their reduced dimensions allow manufacturers to maintain essential circulation systems without extensive facility modifications.

Chemical and Processing Plants

Chemical processing facilities require precise fluid handling in environments where space is at a premium due to safety clearances and containment requirements. Efficient pump solutions in these settings must balance performance with spatial constraints. Compact end-suction pumps provide reliable chemical circulation while leaving room for necessary safety equipment and maintenance access.

HVAC and Cooling Systems

Mechanical rooms in commercial and industrial buildings are notorious for their cramped conditions. HVAC contractors and facility engineers increasingly rely on space-saving industrial pumps to maintain proper water circulation in chilled water systems, heating loops, and cooling tower circuits. The compact design allows for multiple pump installations in parallel configurations within limited mechanical spaces.

Water Treatment Facilities

Municipal and industrial water treatment plants face unique challenges when upgrading aging infrastructure. Existing pump stations often lack the space for traditional pump replacements. Compact end-suction pumps enable facility operators to upgrade performance and efficiency without the cost and complexity of expanding existing structures.

Benefits of Compact End-Suction Pumps

Space-Saving Design for Easy Integration

The most obvious advantage is the reduced footprint. These pumps typically require 25-40% less floor space than conventional models, making them ideal for retrofit applications. This space savings extends beyond just the pump itself – reduced equipment size often allows for simplified piping arrangements and easier access to adjacent equipment.

Simplified Installation and Maintenance

Compact designs often translate to lighter weight units, making installation easier and less expensive. The reduced dimensions also improve accessibility for routine maintenance tasks. Technicians can more easily reach critical components like mechanical seals, bearings, and coupling alignments in tight spaces.

High Efficiency and Reliability

Modern compact end-suction pumps don't sacrifice performance for size. Advanced impeller designs and optimized hydraulics ensure these units deliver efficiency ratings comparable to or better than larger alternatives. Many models achieve wire-to-water efficiencies exceeding 70%, contributing to reduced energy costs over the pump's operational life.

Cost-Effectiveness

Beyond the initial purchase price, compact pumps offer several cost advantages. Reduced installation complexity lowers labor costs. Smaller foundations and simpler piping systems further reduce project expenses. Over the long term, improved efficiency and reduced maintenance requirements contribute to lower total cost of ownership.

Factors to Consider When Selecting a Compact End-Suction Pump

Flow Rate and Head Requirements

Start with accurate hydraulic calculations. Compact pumps are available across a wide range of capacities, but it's crucial to select a model that operates efficiently at your specific duty point. Consider both current needs and potential future expansion when sizing the pump.

Material Compatibility

Process fluid compatibility remains critical regardless of pump size. Evaluate the chemical composition, temperature, and corrosive properties of your fluid. Compact pumps are available with various materials of construction, from standard cast iron to exotic alloys for specialized applications.

Motor Efficiency and Energy Consumption

With rising energy costs, motor efficiency becomes increasingly important. Look for compact pumps paired with high-efficiency motors meeting IE3 or IE4 standards. Variable frequency drives (VFDs) can further improve energy efficiency while providing operational flexibility.

Maintenance Accessibility and Spare Parts Availability

Even in space-constrained installations, ensure adequate clearance for maintenance activities. Consider the availability of replacement parts and local service support when selecting a manufacturer. A reliable supply chain prevents costly downtime.

Installation and Maintenance Best Practices

Positioning in Confined Spaces

When installing compact end-suction pumps in tight spaces, maintain adequate clearance for service access. Leave at least 18 inches on the motor side for coupling inspection and shaft alignment procedures. Ensure overhead clearance allows for lifting and removing pump components during major maintenance.

Proper Alignment and Vibration Control

Precise alignment becomes even more critical in compact installations where vibrations can affect adjacent equipment. Use dial indicators or laser alignment tools to ensure proper coupling alignment. Install vibration monitoring equipment where possible to detect potential issues early.

Routine Inspection Schedules

Develop maintenance schedules based on operating conditions and manufacturer recommendations. In space-constrained environments, more frequent inspections may be necessary due to restricted ventilation and potential heat buildup. Monitor bearing temperatures, vibration levels, and seal leakage regularly.

Ensuring Safe Access for Servicing

Safety considerations are paramount in confined spaces. Ensure adequate lighting and ventilation in pump areas. Establish lockout/tagout procedures that account for limited working space. Consider installing permanent lifting equipment or eye bolts to facilitate safe component removal.

Making the Right Choice for Your Facility

Selecting the optimal compact end-suction pump requires balancing multiple factors specific to your application. Consider engaging with pump specialists who understand the unique challenges of space-constrained installations. They can provide valuable insights into product selection, installation best practices, and long-term maintenance strategies.

Don't overlook the importance of working with established manufacturers who offer comprehensive support networks. Local service availability becomes crucial when dealing with space-constrained installations where equipment replacement is particularly challenging.

Conclusion

Compact end-suction pumps represent the ideal solution for industrial facilities grappling with spatial limitations. These innovative efficient pump solutions deliver full-size performance in space-saving packages, enabling facility managers to optimize their operations without compromising on reliability or efficiency.

The benefits extend far beyond mere space savings. Simplified installation, improved maintenance access, and reduced total cost of ownership make compact end-suction pumps smart investments for forward-thinking facility managers and engineers.

As industrial facilities continue to face pressure to do more with less space, the role of compact pump solutions will only grow in importance. By selecting the right specifications and partnering with trusted manufacturers, you can ensure long-term performance and significant cost savings while maximizing your valuable floor space.

Ready to explore how compact end-suction pumps can transform your space-constrained facility? Contact our pump specialists today to discuss your specific requirements and discover the perfect space-saving industrial pump solution for your application.
