Water Pump Capacitors: A Complete Guide

Your water pump is the heart of your water system, but what keeps that heart beating correctly? Often, it's a small, cylindrical component called a capacitor. When your pump motor hums but won't start, or your water pressure drops unexpectedly, a faulty capacitor is a likely culprit. Understanding this critical part can save you from costly repairs and inconvenient downtime.

This guide will walk you through everything you need to know about water pump capacitors. We'll explore why they are so important, how to identify different types, and what to do when one fails. You will learn how to select, test, and replace a capacitor, empowering you to keep your water flowing smoothly.

Why Are Capacitors Critical for Water Pump Motors?

Single-phase electric motors, like those in most residential water pumps, need an extra electrical push to get started and run efficiently. A capacitor provides this push. It stores and releases electrical energy, creating a second phase of power that helps the motor's windings generate the necessary rotating magnetic field.

Without a functioning capacitor, your pump motor may struggle to start, run with reduced power, or fail to run at all. Common issues caused by a faulty capacitor include a humming motor that won't turn, frequent tripping of circuit breakers, and a noticeable decrease in performance. Ignoring these signs can lead to more severe motor damage.

Types of Capacitors in Water Pumps

Water pumps typically use one or two types of capacitors: start capacitors and run capacitors. While they look similar, they serve very different functions.

Start Capacitors

A start capacitor delivers a powerful, short-term electrical jolt to overcome inertia and get the motor spinning from a standstill. Once the motor reaches about 75% of its full speed, a centrifugal switch disconnects the start capacitor from the circuit. They are designed for intermittent use and cannot handle being in the circuit continuously.

Run Capacitors

A run capacitor remains in the motor circuit the entire time the pump is operating. Its job is to improve the motor's running efficiency, power factor, and torque. This results in smoother, quieter operation and lower energy consumption. Run capacitors are filled with oil and are built to handle continuous duty.

The key difference lies in their application and duty cycle. Start capacitors provide a momentary boost for starting, while run capacitors provide continuous support for efficiency. Some motors use only a run capacitor, while others use both a start and a run capacitor for optimal performance.

How to Select the Right Capacitor

When replacing a water pump capacitor, you must choose the correct one. Using the wrong capacitor can damage the motor or simply fail to work.

Matching Voltage and Capacitance Rating

Every capacitor has two primary ratings: capacitance (measured in microfarads, µF or MFD) and voltage (VAC).

• Capacitance (µF): You must match the microfarad rating of the new capacitor to the original. A value that is too low may not provide enough power to start or run the motor, while a value that is too high can cause excess current and motor overheating.

• Voltage (VAC): The voltage rating on the replacement capacitor must be equal to or greater than the original. For example, you can safely replace a 370VAC capacitor with a 440VAC one, but not the other way around. A lower voltage rating will cause the capacitor to fail prematurely.

Motor Specifications and Safety

Always check the motor's nameplate or the pump's technical manual for the correct capacitor specifications. When replacing a capacitor, it's also wise to consider physical dimensions to ensure it will fit in the housing. Stick to reputable brands to ensure quality and reliability.

Signs of a Faulty Capacitor

Capacitors are a common failure point in electric motors. Recognizing the early warning signs can prevent further damage. Here are some key faulty capacitor signs to watch for:

• Pump Motor Humming or Failing to Start: This is the most common symptom. The motor receives power but lacks the "kick" from the capacitor to start turning.

• Weak Water Pressure: A failing run capacitor can cause the motor to lose power, resulting in reduced pump output and weak water pressure.

• Overheating or Tripping Breakers: An incorrect or failing capacitor can cause the motor to draw excessive current, leading to overheating and frequently tripped circuit breakers.

Testing Pump Capacitors

If you suspect a problem, you can test the capacitor. Before you begin, always perform a visual inspection. Look for a bulging or swollen casing, any signs of leaking oil, or burnt marks on the terminals. These are clear indicators of failure, and the capacitor should be replaced immediately.

Using a Multimeter or Capacitance Tester

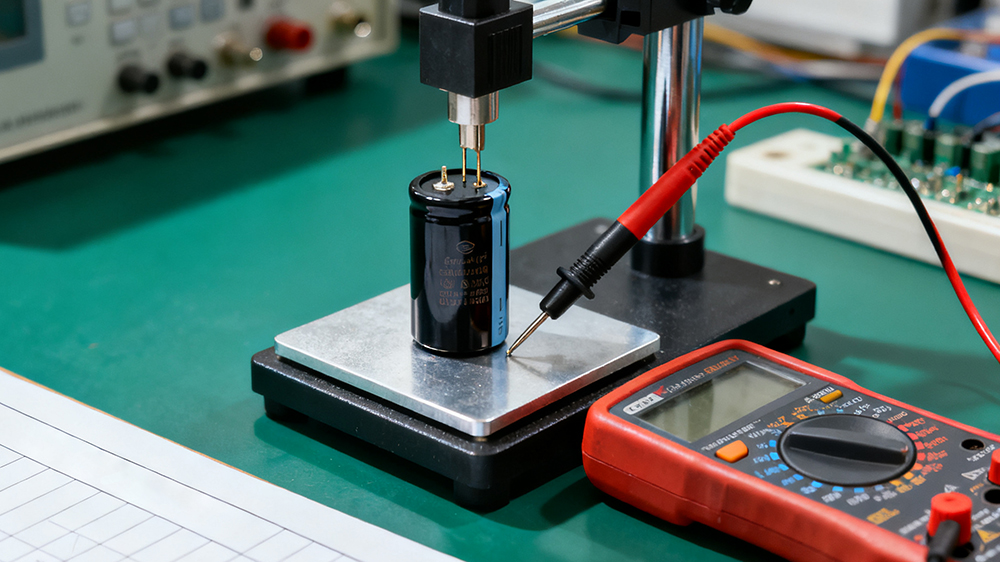

For a more definitive test, you'll need a multimeter with a capacitance setting (µF or MFD).

Step-by-Step Capacitor Testing Procedure:

1. DISCONNECT POWER: Turn off the power to the pump at the circuit breaker. Verify the power is off with your multimeter.

2. DISCHARGE THE CAPACITOR: This is a critical safety step. Capacitors store a high-voltage charge even when the power is off. Carefully place the blade of an insulated screwdriver across both metal terminals to create a short circuit and discharge the stored energy. You may see a small spark.

3. Disconnect the Wires: Note where the wires are connected, then carefully remove them from the capacitor's terminals.

4. Set Your Multimeter: Switch your multimeter to the capacitance (µF) setting.

5. Test the Capacitor: Touch the multimeter probes to the two terminals of the capacitor. The reading should be within the tolerance range printed on the capacitor (usually +/- 5% or 10%). For example, a 20µF capacitor with a +/- 5% tolerance should read between 19µF and 21µF.

If the reading is far outside this range or shows zero, the capacitor has failed and needs to be replaced.

Capacitor Replacement and Maintenance

Replacing a capacitor is a straightforward task if you follow proper safety procedures.

Step-by-Step Replacement Process:

1. Turn Off Power: Ensure the circuit breaker for the pump is off.

2. Discharge the Old Capacitor: As described in the testing section, safely discharge the capacitor using an insulated screwdriver.

3. Remove the Old Capacitor: Disconnect the wires and unfasten the strap holding the capacitor in place.

4. Install the New Capacitor: Secure the new capacitor with the mounting strap. Reconnect the wires to the terminals exactly as they were on the old one.

5. Restore Power: Close the capacitor cover, turn the power back on at the breaker, and test the pump.

For preventive capacitor maintenance, periodically inspect the capacitor for any signs of swelling or leaking. Keeping the pump motor clean and well-ventilated helps prevent overheating, which is a leading cause of premature capacitor failure.

Conclusion: Extend Your Pump's Life with Proper Care

The capacitor is a small but mighty component in your water pump system. Proper capacitor care is essential for your pump's health and longevity. By understanding its function, recognizing failure signs, and performing timely capacitor testing and replacement, you can prevent unexpected breakdowns and ensure a reliable water supply. Regular checks and proactive maintenance are simple steps that pay off by extending the life of your water pump and providing you with peace of mind.
