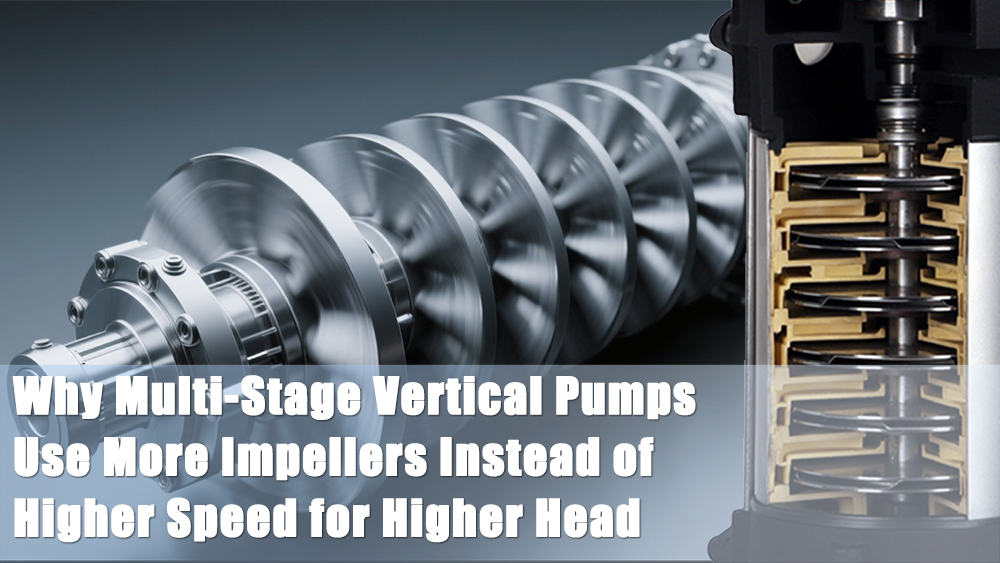

Why Multi-Stage Vertical Pumps Use More Impellers Instead of Higher Speed for Higher Head

When designing or selecting a pump for high-head applications like high-rise buildings, industrial water supply, or deep well pumping, vertical multi-stage pumps are often the go-to solution. But have you ever wondered why these pumps increase their head (the height at which they can lift water) by adding more impellers rather than simply spinning faster?

This question often arises for engineers, facility managers, and procurement specialists trying to balance cost, efficiency, and reliability in their systems. This blog will explore the key reasons behind this design choice, from the physical limitations of high speeds to the advantages multi-stage impellers provide. By the end, you'll have a clearer understanding of why multi-stage pumps reign supreme for high-head applications.

The Limitations of Increasing Pump Speed

At first glance, increasing the rotational speed of a pump seems like a straightforward way to achieve a higher head. After all, higher speeds should translate to greater energy transfer to the fluid. While this principle holds true, the practical limitations and risks make it far from ideal. Here are the key challenges:

Cavitation Risk

Higher pump speeds significantly reduce inlet pressure, increasing the risk of cavitation. Cavitation occurs when the pressure drops below the vapor pressure of the liquid, causing vapor bubbles to form. These bubbles collapse violently as they are carried into higher-pressure zones, leading to:

· Impeller damage: Pitting and erosion reduce efficiency and lifespan.

· Performance loss: Reduced flow and head due to disrupted hydraulic performance.

Slower, multi-stage designs mitigate this by operating at safer pressure levels, minimizing cavitation risks.

Material and Mechanical Stress

The centrifugal force on an impeller increases exponentially with rotational speed. For example, doubling the speed can quadruple the stress on materials. This leads to:

· Higher costs: Materials must be stronger and more expensive to withstand the stress.

· Failure risks: Mechanical failure rates rise with higher speeds, requiring more robust (and costly) designs.

By contrast, multi-stage pumps distribute the load across several impellers, reducing the mechanical demands on each.

Vibration and Noise

High-speed pumps inherently experience more vibration and produce greater noise. These can lead to:

· Operational instability: Excessive vibration compromises system reliability.

· Higher maintenance costs: Balancing and damping mechanisms are required to keep the pump performing smoothly.

Energy Efficiency Decline

Increasing speed leads to greater friction and turbulence in the fluid, causing:

· Energy loss: Significant losses due to heat and drag as fluid velocity increases.

· Lower overall efficiency: Reduced energy efficiency increases operating costs over time.

With these limitations in mind, it becomes clear why simply increasing speed is not the optimal solution for most high-head pumping needs.

Why Multi-Stage Impellers Are the Preferred Solution

Multi-stage vertical pumps offer a smarter, more engineered approach to achieving higher heads. Here’s why they’re the industry standard for these applications:

Controlled Head Increase

Each impeller in a multi-stage pump adds a fixed amount of head. By stacking multiple impellers in series, pump designers can deliver precise performance tailored to specific requirements. This scalability makes multi-stage pumps ideal for high-pressure applications.

Better Efficiency at Moderate Speeds

Instead of pushing a single impeller to its limits, multi-stage pumps operate in a sweet spot for hydraulic performance. This provides:

· Optimal efficiency: Less energy wasted on turbulence or friction.

· Less wear and tear: Operating within moderate speed ranges reduces component stress, extending lifespan.

Lower Risk of Cavitation

Multi-stage pumps operate at lower speeds, preserving the inlet pressure and significantly reducing cavitation risk. This makes them more reliable for demanding applications like deep well pumping or boiler feed systems.

Scalability and Flexibility

Need to adjust the head? Multi-stage pumps make it easy:

· Add an impeller stage to increase the head.

· Remove a stage for a lower head requirement.

Such flexibility allows operators to adapt pumps to varying system demands without costly re-engineering.

Cost and Reliability Advantages of Multi-Stage Pumps

Beyond performance benefits, multi-stage pumps also offer the following cost and reliability advantages:

Lower Manufacturing Complexity

Multi-stage pumps use standard materials and bearings as they operate at moderate speeds. This eliminates the need for exotic (and expensive) materials required by ultra-high-RPM pumps to endure higher stresses.

Reduced Maintenance Requirements

High-speed pumps are prone to wear issues, requiring frequent repairs or replacements. Multi-stage designs avoid these pitfalls with their balanced, moderate-speed operation:

· Fewer failures: Reduced wear means fewer unplanned shutdowns.

· Lower costs: Substantial savings on long-term maintenance.

Wider Applicability

Multi-stage vertical pumps are versatile, making them suitable for a wide range of applications requiring high head with moderate-to-low flow. Common uses include:

· Industrial water supply.

· HVAC systems in tall buildings.

· Boiler feed pumps in power plants.

This adaptability solidifies their reputation as a dependable all-rounder for challenging pumping tasks.

When High-Speed Pumps Are the Right Choice

While multi-stage pumps excel in most high-head scenarios, there are cases where high-speed pumps make sense:

· Small systems: Compact, low-flow applications may prioritize size and simplicity over efficiency or longevity.

· Specialty uses: Certain industrial applications requiring very low flow and extremely high head may benefit from high-speed designs.

Even in these cases, the trade-offs (e.g., higher material costs, and greater maintenance demands) must be carefully weighed to ensure alignment with operational requirements.

Finding the Right Pump for Your Needs

Multi-stage vertical pumps are a testament to the power of smart engineering. By focusing on gradual, distributed head increases rather than relying on brute speed, they offer a balanced approach to high-head applications. From enhanced efficiency to reduced maintenance needs, these pumps provide compelling advantages for industrial engineers, facility managers, and procurement specialists alike.

Before selecting a pump, evaluate your specific system needs. Is efficiency more critical than size? Do reliability and low maintenance outweigh slight cost savings? Answering these questions will guide your decision toward selecting the best pump for your application.

For those navigating the complexities of high-head pumping solutions, multi-stage vertical pumps offer a tried-and-true option that delivers performance and peace of mind.
