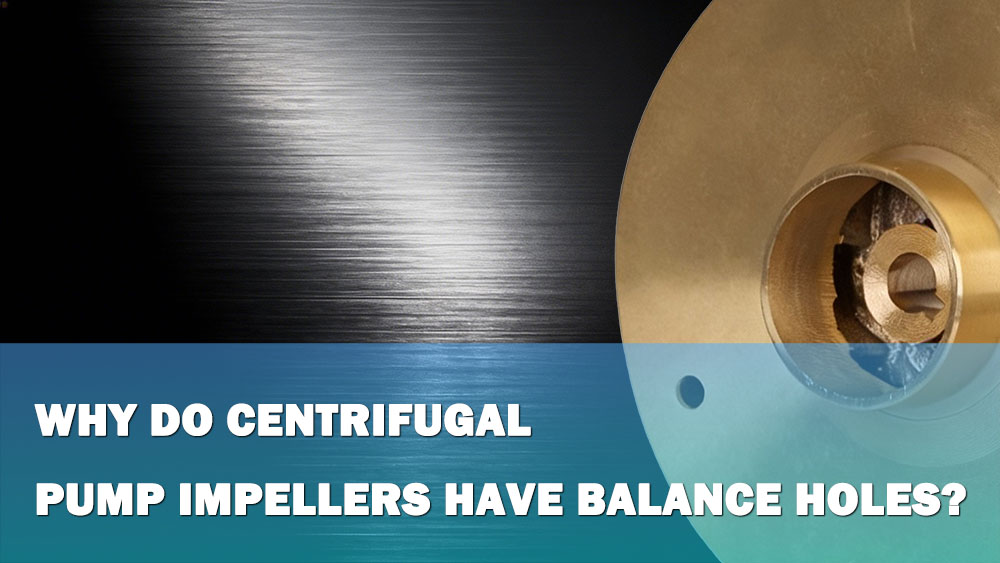

Why Do Centrifugal Pump Impellers Have Balance Holes?

Principle, Function, and Design Trade-Offs ExplainedWhen selecting centrifugal pumps, buyers often focus on flow rate, head, and efficiency. However, one small design feature—balance holes in the impeller—can make a significant difference in pump reliability and lifespan. These tiny holes play a critical role in reducing axial thrust, protecting seals and bearings, and ensuring long-term performance.This article explains the purpose of balance holes, how they work, and why they’re a key consideration for procurement professionals looking to invest in reliable, cost-effective pumps.

The Problem: Axial Thrust in Centrifugal Pumps

Axial thrust is a force that pushes the impeller along the pump shaft, caused by pressure imbalances between the front (suction side) and back (discharge side) of the impeller.

Why Axial Thrust Matters:

Excessive axial thrust can lead to:· Mechanical seal wear: Shortens seal life and increases maintenance costs.

· Impeller rubbing: Damages the casing and impeller, leading to expensive repairs.

· Bearing overload: Causes overheating and premature bearing failure.

· Shaft deflection: Reduces overall pump stability and reliability.For buyers, pumps with poor axial thrust control can result in higher operating costs, frequent downtime, and reduced service life.

Why Pressure Behind the Impeller Is Higher

In centrifugal pumps, high-pressure fluid often leaks into the back chamber of the impeller through:

· Wear rings

· Seal clearancesWithout proper control, this pressure builds up behind the impeller, increasing axial thrust. The problem becomes more severe in high-head applications, where pressure differences are greater.

What Are Balance Holes in Pump Impellers?

Balance holes are small, strategically placed holes drilled through the impeller shroud. They connect the high-pressure back chamber to the low-pressure suction side of the pump.

Typical Features of Balance Holes:

· Location: Near the impeller eye (center).

· Common Use: Found in single-stage, single-suction centrifugal pumps.These holes are a simple yet effective solution to manage axial thrust, making them a popular choice in pump designs.

How Balance Holes Reduce Axial Thrust

Balance holes allow high-pressure fluid from the back chamber to flow back to the suction side. This reduces the pressure difference between the front and back of the impeller, significantly lowering axial thrust.

Key Benefits:

· Reduced load on seals and bearings: Extends their lifespan and reduces maintenance costs.

· Improved reliability: Ensures stable operation, especially in continuous-duty or high-head applications.

Important Note: Balance holes don’t eliminate axial thrust entirely—they control it to manageable levels.

Why Balance Holes Improve Pump Reliability

For procurement professionals, reliability is a top priority. Balance holes contribute to pump reliability by:

· Extending mechanical seal life: Reduces wear caused by excessive axial force.

· Minimizing casing and impeller wear: Prevents damage from impeller rubbing.

· Lowering bearing temperature: Reduces the risk of overheating and failure.These benefits are especially critical for:

· Pumps operating continuously in industrial settings.

· Medium to high-head centrifugal pumps.

· Systems with frequent load fluctuations.

The Efficiency Trade-Off

While balance holes improve reliability, they come with a trade-off: efficiency loss.

Why Efficiency Drops:

· Balance holes create internal recirculation, leading to volumetric losses.

· Hydraulic disturbances caused by the flow through the holes reduce overall efficiency.

Typical Efficiency Loss:

· Around 2–5%, depending on the pump design.

Key Insight: This efficiency loss is an intentional design compromise to prioritize reliability over peak performance. For most applications, the extended service life and reduced maintenance costs outweigh the slight drop in efficiency.

Why Engineers Still Choose Balance Holes

Despite the efficiency trade-off, balance holes remain a popular choice due to their:

· Simple structure: Low manufacturing cost and easy implementation.

· No moving parts: Reduces the risk of mechanical failure.

· Stable performance: Less sensitive to wear compared to tight-clearance solutions.For buyers, this means lower upfront costs and long-term reliability, making balance holes a cost-effective solution for many applications.

Alternative Axial Thrust Control Methods

While balance holes are common, other methods exist to manage axial thrust:

1.  Back vanes: Reduce pressure behind the impeller, but may increase manufacturing complexity.

2. Double-suction impellers: Naturally balance axial forces, but are more expensive and larger.

3. Balance discs or drums: Used in multi-stage pumps but require higher maintenance.

Comparison for Buyers:

· Balance holes: Simple, cost-effective, and reliable.

· Back vanes: Moderate cost, suitable for specific designs.

· Double-suction impellers: High cost, ideal for large-capacity pumps.

· Balance discs/drums: High cost, best for multi-stage pumps.

When Balance Holes Are Especially Necessary

Balance holes are particularly important in:· Single-suction pumps: Where axial thrust is more pronounced.

· Medium to high-head applications: Where pressure differences are significant.

· Continuous-duty systems: Where reliability is critical.

· Systems with load fluctuations: To maintain stable operation.For procurement professionals, understanding these scenarios can help in selecting the right pump for the job.

Key Design Takeaways for Pump Selection

When evaluating centrifugal pumps, consider the following:

1.  Axial thrust matters: Don't overlook it when comparing pump options.

2.  Balance holes prioritize reliability: A slight efficiency loss can significantly extend service life.

3.  Match design to application: Ensure the pump’s features align with your system's requirements.A well-designed pump balances efficiency, mechanical stability, and operating lifespan.

Conclusion

Balance holes may seem like a minor design feature, but their impact on pump reliability is critical. By reducing axial thrust, they protect seals, bearings, and impellers from premature failure.For procurement professionals, understanding the role of balance holes can help:· Choose pumps that offer long-term reliability.· Diagnose wear problems in existing systems.· Avoid costly downtime and repairs.When selecting centrifugal pumps, look beyond flow and head—consider axial thrust control features like balance holes to ensure a smarter, more reliable investment.
