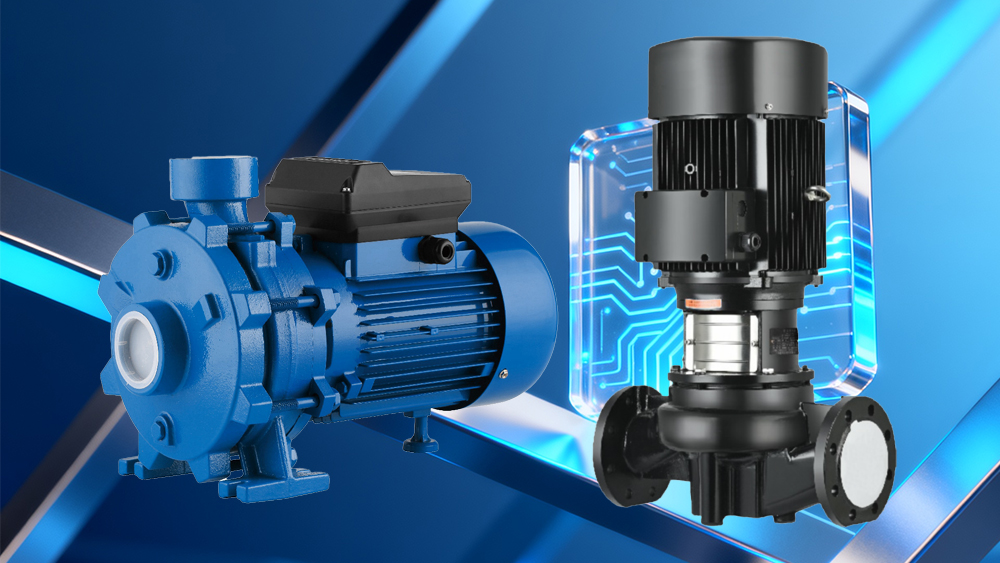

Horizontal vs Vertical Pump Installation: Which is Better?

Choosing the right pump is only half the battle; how you install it is just as crucial. The orientation of your pump—whether horizontal or vertical—has a significant impact on its performance, maintenance needs, and overall lifespan. Many common pump types, including centrifugal, multistage, and submersible models, can be installed either way, leaving many to wonder which configuration is superior.

The decision between a horizontal and vertical pump installation isn't a simple one. Each orientation comes with its own set of advantages and disadvantages related to efficiency, space requirements, cost, and suitability for specific applications. This guide will provide a detailed pump orientation comparison to help you make an informed choice for your system.

Understanding the Two Installation Orientations

Before diving into the pros and cons, it's important to understand the fundamental differences between the two setups.

Horizontal Pump Installation

In a horizontal pump installation, the pump and motor are positioned on the same horizontal plane. The shaft runs parallel to the ground, and the entire assembly is typically mounted on a shared baseplate or foundation. This is one of the most common configurations, especially for end-suction and split-case centrifugal pumps used in industrial and commercial settings.

Vertical Pump Installation

A vertical pump installation features a vertical shaft arrangement, with the motor usually mounted directly above the pump end. This design can be configured in several ways, such as a vertical in-line pump where the suction and discharge are on the same line, or a submersible pump designed to be fully immersed in the fluid it is moving. These are frequently used in sumps, wells, and applications where floor space is limited.

Advantages of Horizontal Installation

The widespread use of horizontal pumps is due to several key benefits that make them a practical choice for many applications.

Ease of Maintenance

One of the biggest advantages of a horizontal setup is accessibility. The pump, motor, bearings, and seals are all easy to reach, simplifying routine inspections, repairs, and overall pump maintenance. This straightforward access can significantly reduce downtime and labor costs.

Ideal for High Flow Rates

Horizontal pumps, particularly end-suction designs, are excellent for transferring large volumes of fluid at low to medium pressures. Their design is well-suited for applications like water supply, HVAC systems, and general industrial liquid transfer where high flow is more critical than high pressure.

Stability and Simplicity

With a lower center of gravity, horizontal pumps are inherently more stable. They require less complex structural support compared to their vertical counterparts. The baseplate mounting provides a solid, stable foundation that helps minimize vibration and simplifies the initial alignment process.

Disadvantages of Horizontal Installation

Despite their popularity, horizontal pumps have limitations that make them unsuitable for certain scenarios.

Larger Footprint

The most significant drawback is the amount of floor space they require. The side-by-side arrangement of the motor and pump can occupy a substantial area, making them impractical for confined spaces.

Suction Lift Limitations

Horizontal pumps must be primed before operation, meaning the pump casing and suction line need to be filled with liquid. If the fluid source is below the pump, it has a limited suction lift capability. For this reason, they perform best with a flooded suction, where the liquid level is higher than the pump's inlet.

Potential for Misalignment

Although initial alignment is relatively simple, the baseplate and foundation can settle or shift over time. This can lead to alignment drift between the motor and pump, causing increased vibration, premature bearing wear, and seal failure if not corrected.

Advantages of Vertical Installation

Vertical pumps offer unique solutions for challenges that horizontal pumps cannot overcome, especially concerning space and suction conditions.

Space-Saving Design

The most obvious benefit of a vertical pump installation is its compact footprint. By stacking the motor on top of the pump, this design frees up valuable floor space. This makes it the perfect choice for tight mechanical rooms, underground sumps, and offshore platforms.

Excellent for Deep Applications

Vertical pumps excel in applications requiring a deep lift, such as deep well water extraction, borehole pumping, and sump drainage. Submersible and vertical turbine pumps are specifically designed to push fluid up from significant depths efficiently.

Superior Priming

Many vertical pump designs, especially submersible and sump pumps, are self-priming because the impeller is already submerged in the fluid. This eliminates the need for manual priming and prevents issues related to air locks or loss of prime.

Disadvantages of Vertical Installation

The specialized nature of vertical pumps also brings a few challenges that must be considered.

Difficult Maintenance

Accessing a vertical pump for maintenance can be challenging. For submersible or deep-set turbine pumps, the entire unit may need to be lifted out of the well or sump for service, which requires heavy lifting equipment and significant labor. Even on surface-mounted vertical pumps, accessing the lower bearings and seals can be more complex than on a horizontal unit.

Higher Installation Costs

The installation can be more expensive and complex. Vertical pumps may require special mounting structures, reinforced supports, and precision alignment tools to manage the long shafts. The need for cranes or other lifting devices for installation and removal also adds to the cost.

Vibration Challenges

Long shafts, like those found in vertical turbine pumps, can be more susceptible to vibration and harmonics. Proper alignment and shaft support are critical to prevent operational issues and ensure long-term reliability.

Choosing the Right Orientation for Your Application

The best choice ultimately depends on your specific operational needs. Here is a quick pump orientation comparison for common scenarios:

• For General Water Supply: Horizontal end-suction or multistage pumps are often preferred for their simplicity and ease of maintenance.

• For Deep Wells or Boreholes: Vertical turbine or submersible pumps are the industry standard.

• For Limited Space (Basements/Pits): Vertical sump pumps or in-line pumps save critical floor space.

• For Industrial Process Systems: Horizontal pumps are common due to their robust design and straightforward servicing, but vertical designs are used where space is a premium.

Key Pump Maintenance Tips

Regardless of the orientation you choose, following proper installation and maintenance practices is key to a long service life.

• Ensure a solid, level foundation to prevent vibration and misalignment.

• Use precision tools like laser alignment systems to align the motor and pump shafts.

• Check and secure all motor-pump coupling connections as per the manufacturer's torque specifications.

• Design the installation with enough clearance to provide easy access for inspection and servicing.

• Always consult the manufacturer's installation manual for specific requirements.

Conclusion: Balancing Your Needs

There is no universal 【better】 option in the horizontal vs. vertical pump installation debate. The ideal choice depends on a careful balance of your application's requirements for efficiency, space, and maintenance. Horizontal pumps offer unmatched simplicity and serviceability for high-flow systems where space is not a concern. In contrast, vertical pumps provide an elegant and efficient solution for deep-set applications and space-constrained environments.

Before making a final decision, evaluate your system's demands and physical constraints. For expert guidance tailored to your specific needs, consult with your pump supplier or a qualified engineer to ensure you select and install the perfect pump configuration.
