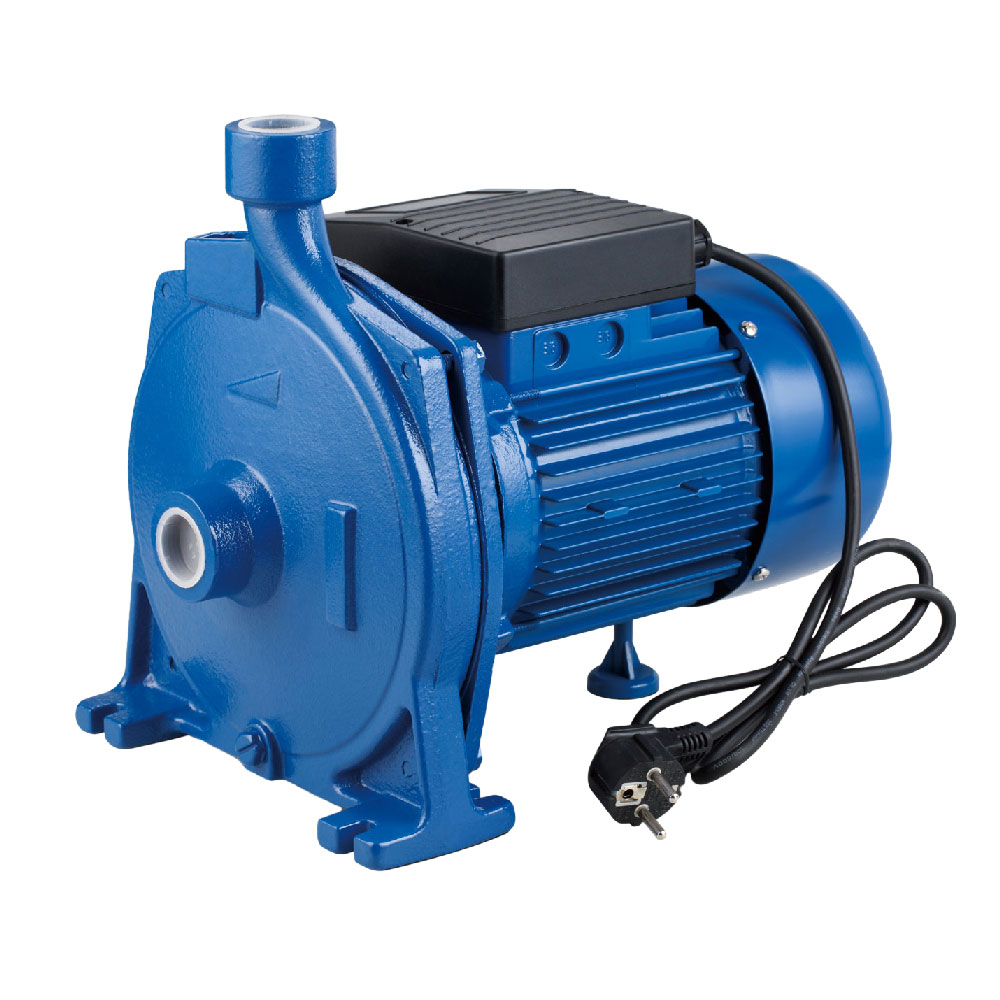

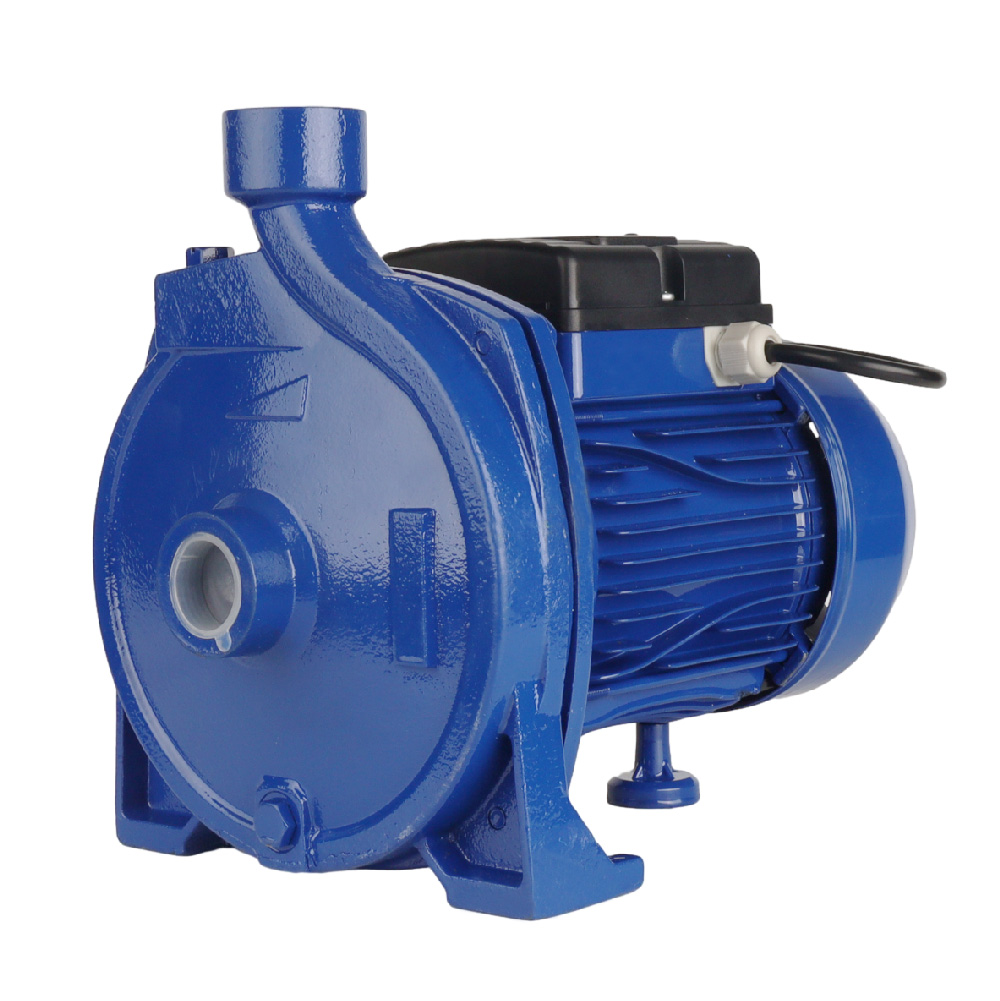

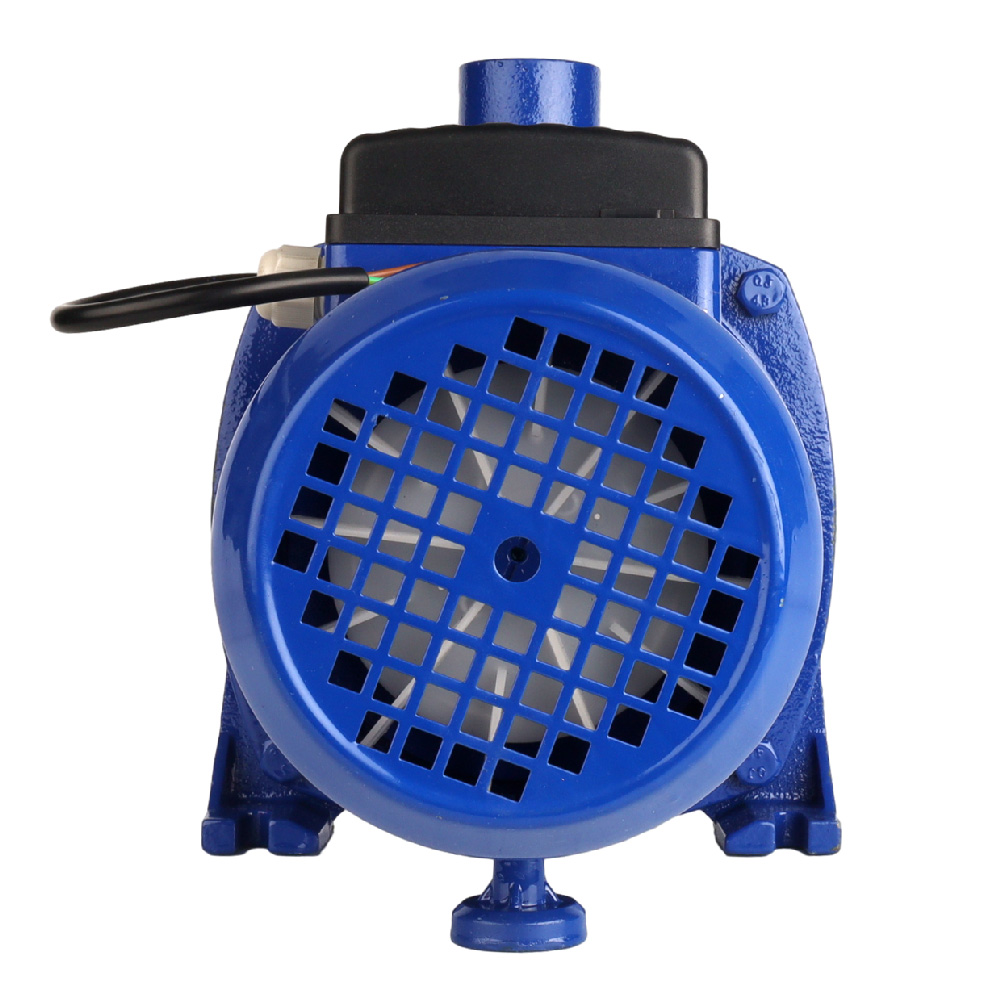

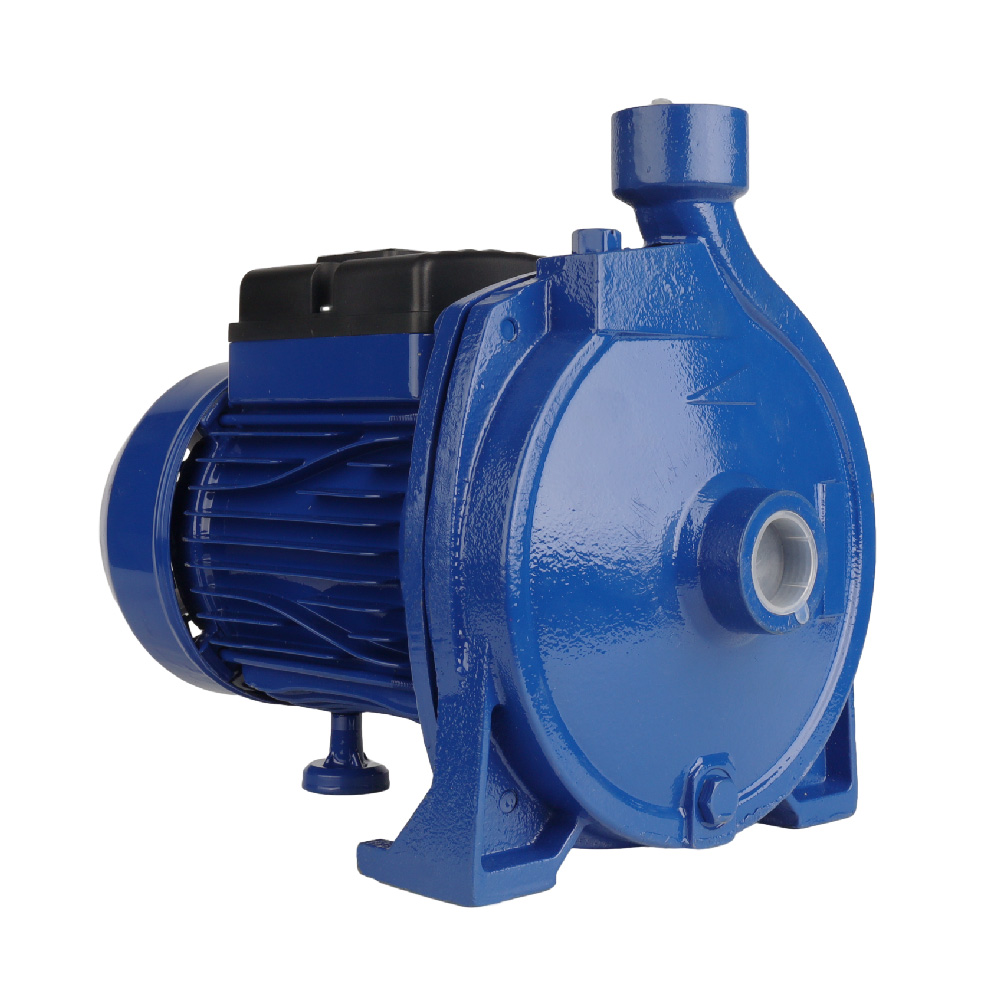

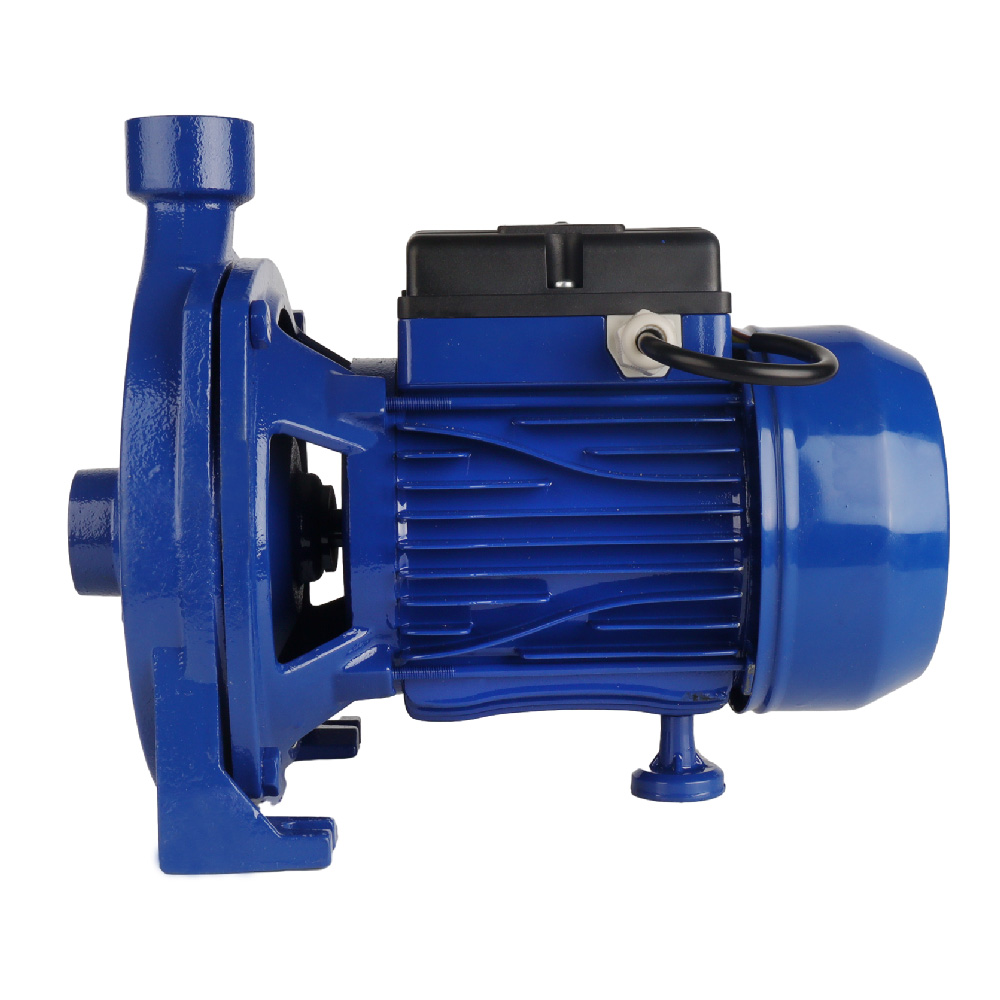

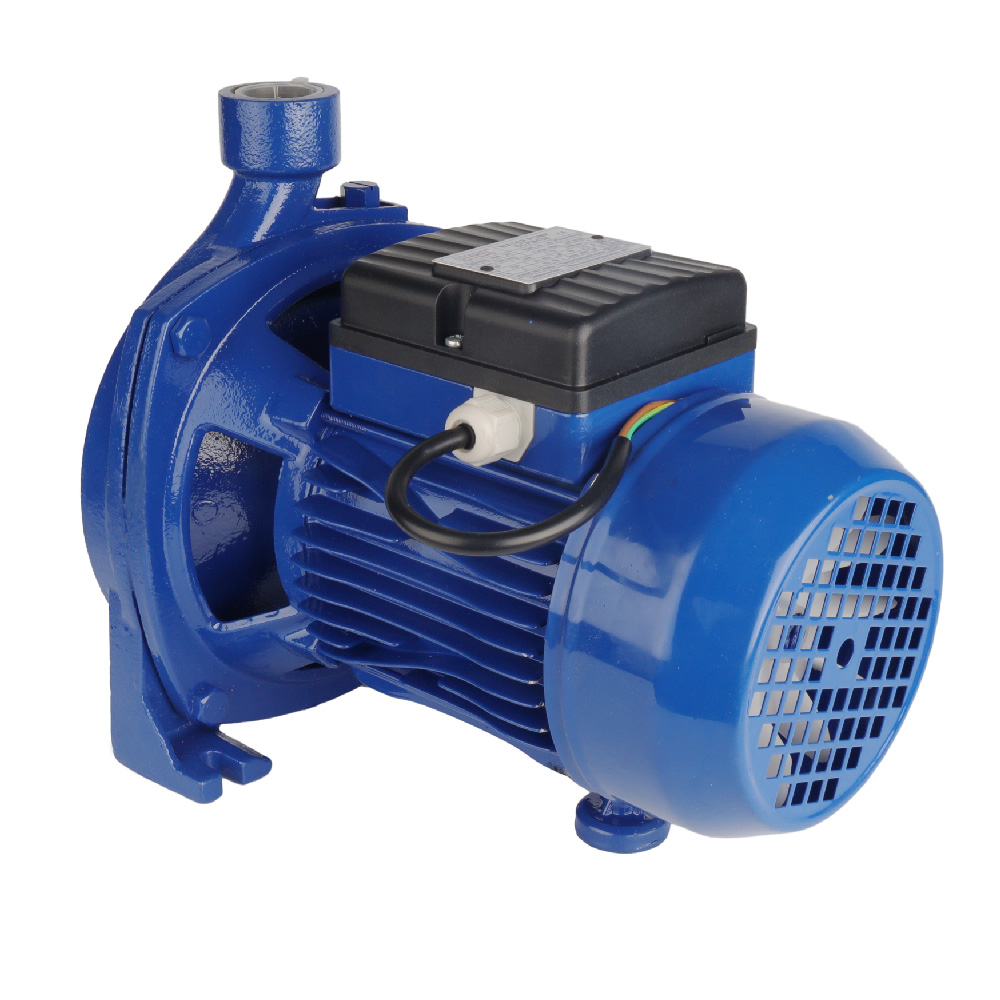

Centrifugal Pump

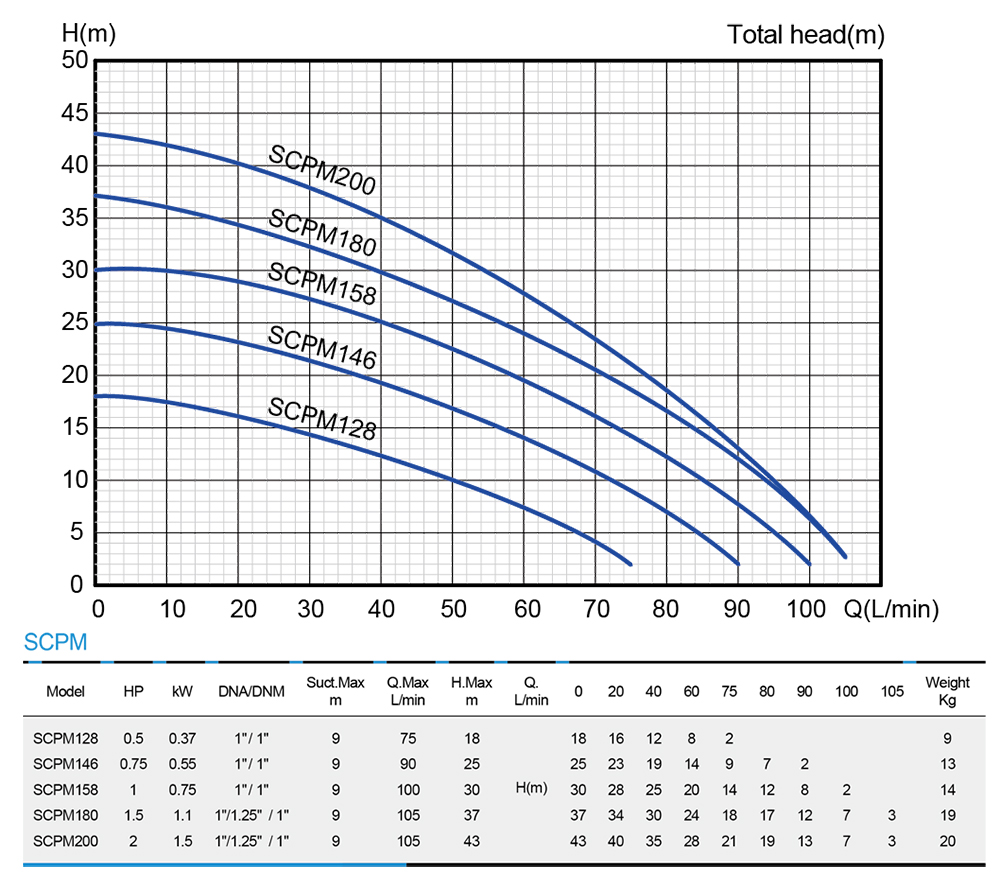

SCPM128:370W,Q max.is 70L/min, H max.is 18m
SCPM146:550W,Q max.is 90L/min, H max.is 25m
SCPM158:750W,Q max.is 100L/min, H max.is 30m
SCPM180:1.1kW,Q max.is 110L/min, H max.is 38m
SCPM200:1.5kW,Q max.is 115L/min, H max.is 43m
SCPM300:2.2kW,Q max.is 120L/min, H max.is 48m
Description
The SCPM pump is designed for clean water and non-corrosive liquids, known for its high efficiency, power-saving features, and compact structure, making it convenient to operate and maintain. It finds extensive applications in both domestic and civil sectors, including water distribution in small to medium pressure systems, liquid transfer, as well as garden and allotment irrigation. To maximize performance, save energy, and ensure long-term durability, it is recommended to install the pump in an enclosed or weather-sheltered environment for smoother water flow and ease of operation and maintenance.
Features
Reliability
Easy to operate and maintain
Installing it in an enclosed or weather-sheltered environment ensures optimal performance and durability
Application
Domestic Use
Pressure Systems
Garden Irrigation
Working conditions
Maximum ambient temperature up to +40℃
Maximum fluid temperature up to 80℃
Maximum pressure up to 10 bar
Meterials
Pump body:cast iron
Motor housing:aluminum
Motor:closed, externally ventilated
Impeller:brass/S.S optional
Insulation:B/F
Duty:continuous rated
Mechanical Seal:steatite ceramic/metalized carbon
