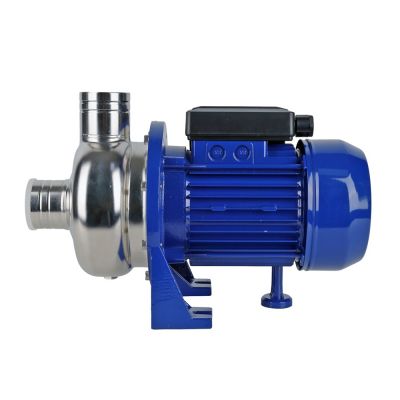

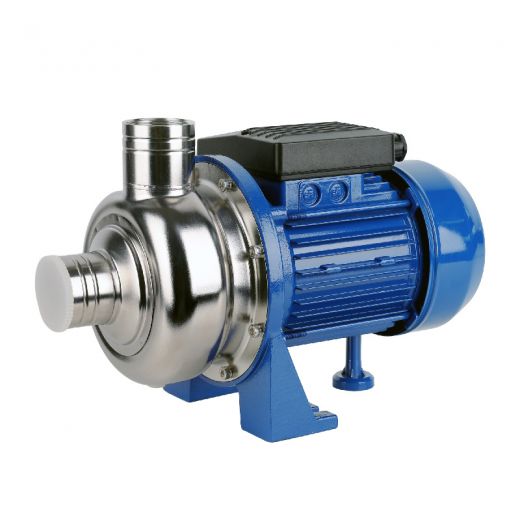

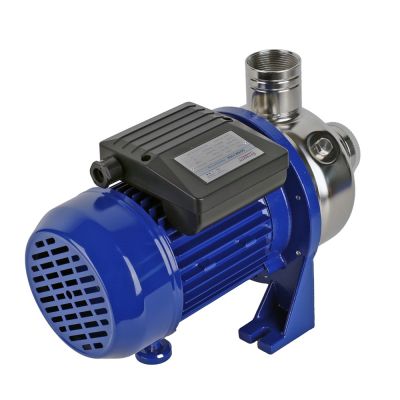

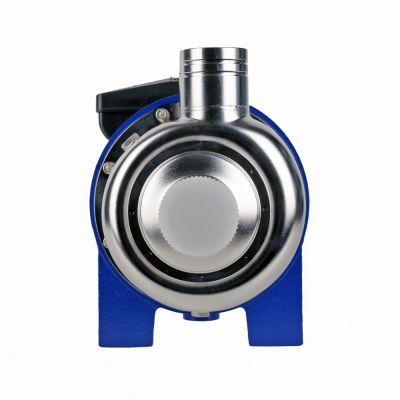

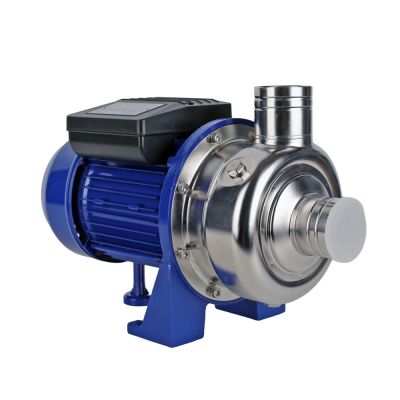

Stainless Steel High Flow Centrifugal Pump-SDWK series

SDWK is a high-flow, all-stainless-steel booster pump featuring a streamlined design suitable for various applications, including food washing, industrial washing, communal dishwashing, and liquid handling and transfer. With its compact structure, the pump is not only energy-efficient but also environmentally friendly.

Features

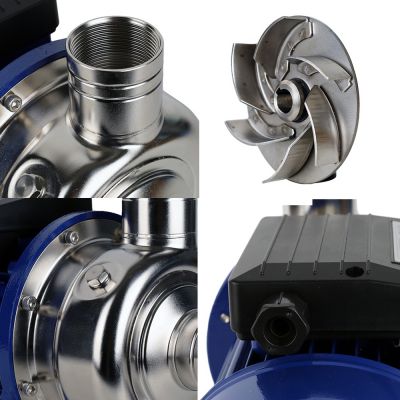

.Stainless steel pump body and impeller

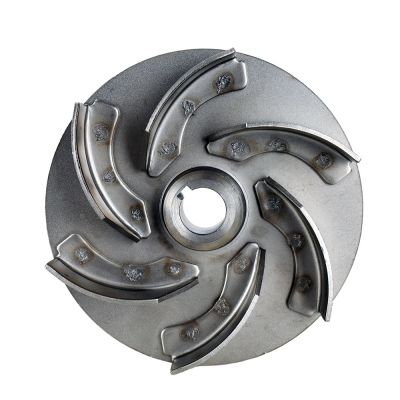

.Open impeller，convey solid with diameter 18mm

Application

.Food washing

.Industrial washing

.Communal dishwashing

.Liquid handling and transfer

Working conditions

.Maximum ambient temperature up to +40℃

.Maximum fluid temperature up to 80℃

.Maximum pressure up to 10 bar

Construction Materials

.Pump body：stainless steel

.Motor housing：aluminum

.Motor：closed, externally ventilated

.Impeller：stainless steel

.Insulation：B/F

.Duty：continuous rated

.Mechanical Seal：steatite ceramic/metalized carbon

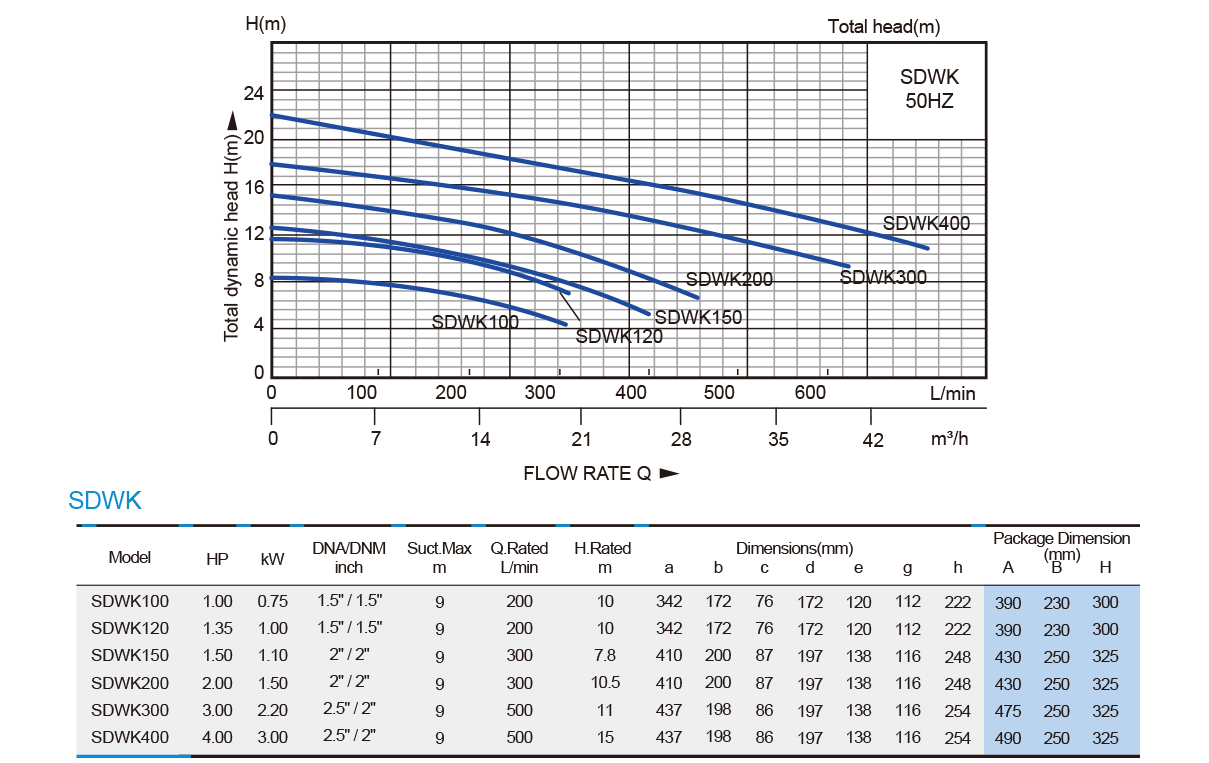

Performance Curve&Technical Data
