Centrifugal Pump

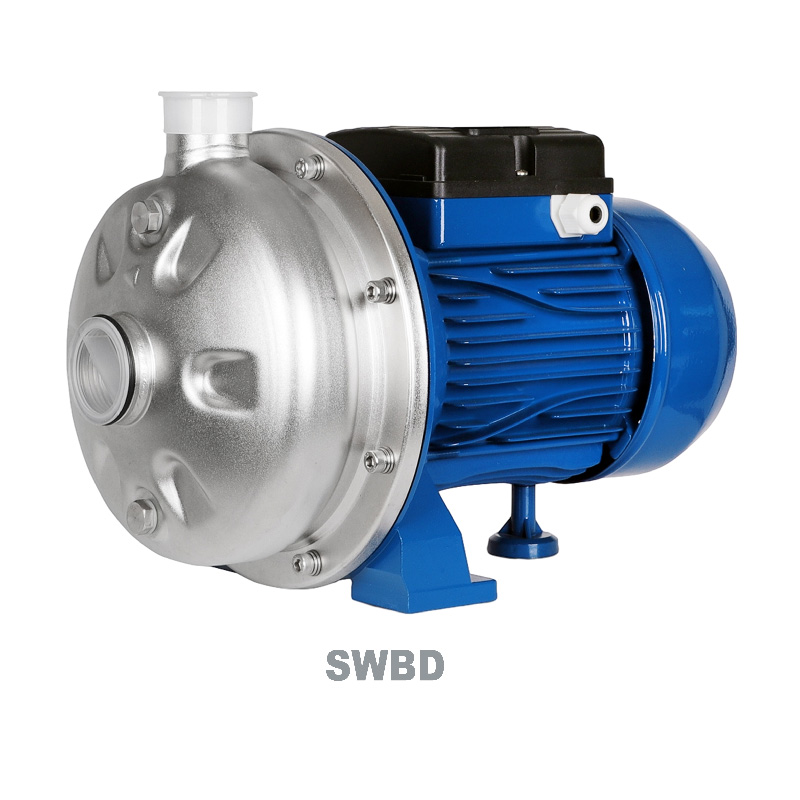

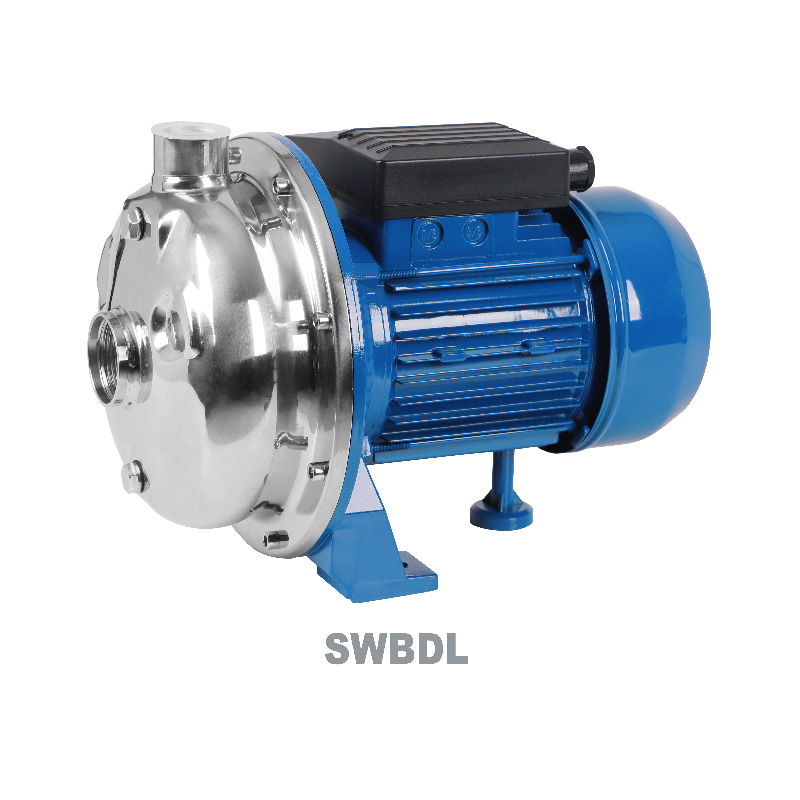

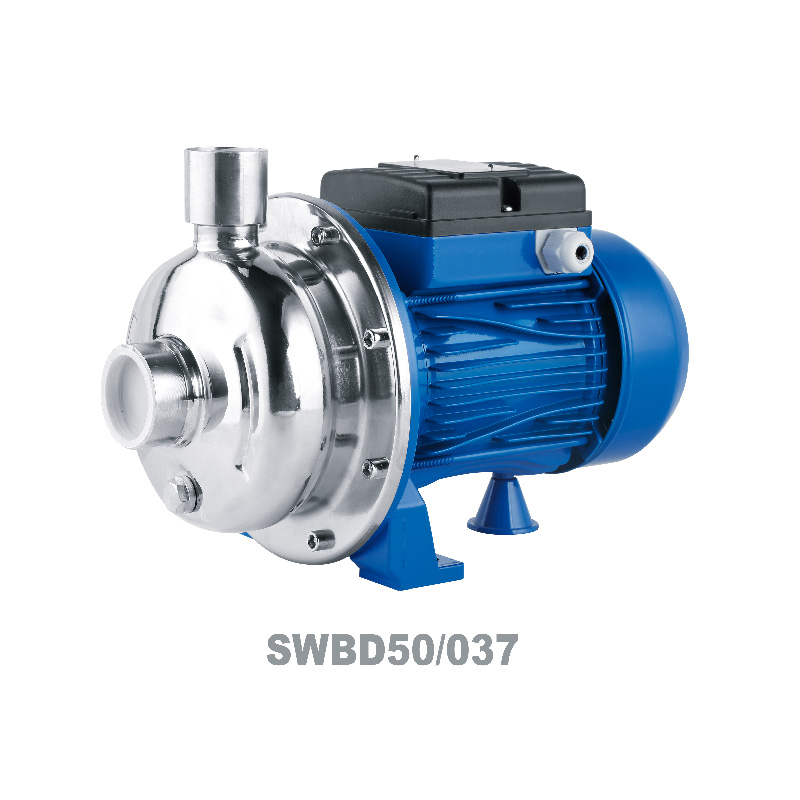

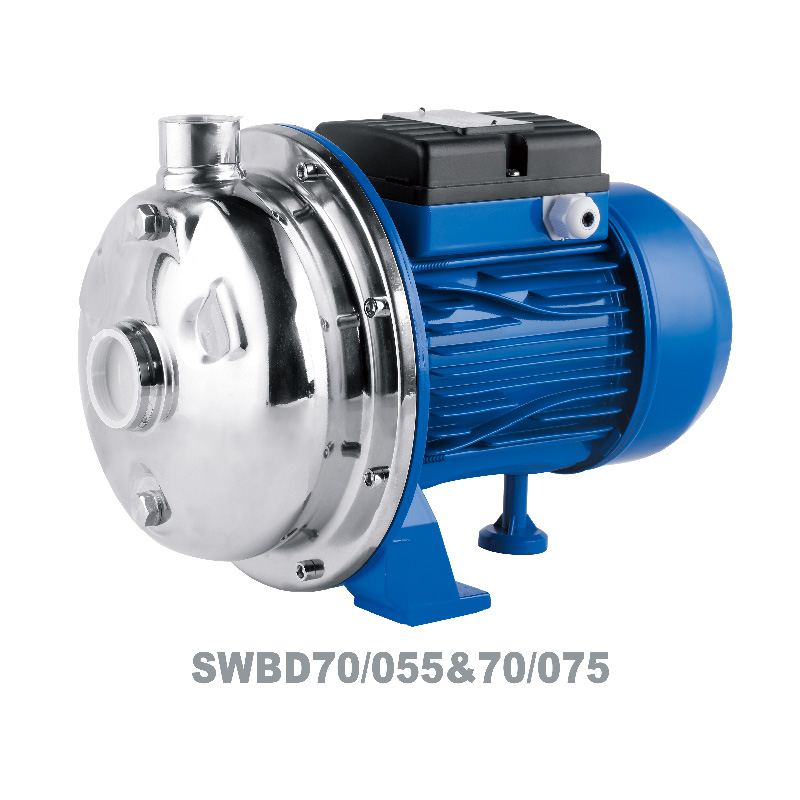

The Stream SWBD Series Is The Stainless Steel Single Stage Centrifugal Pumps.
Description
All parts used to pump liquid are made of stainless steel, with high corrosion resistance and long life. They are wildly used to air condition or cooling system, drinking water transfer and bottling, industrial washing and pressure boosting.
Application
Air-condition or cooling system
Drinking water transfer and bottling
Industrial washing and pressure boosting
Features
-Liquid contacting parts are all stainless steel, high corrosive resistant and longer service life.
-Integrated stainless steel welding, reliable construction and stable performance.

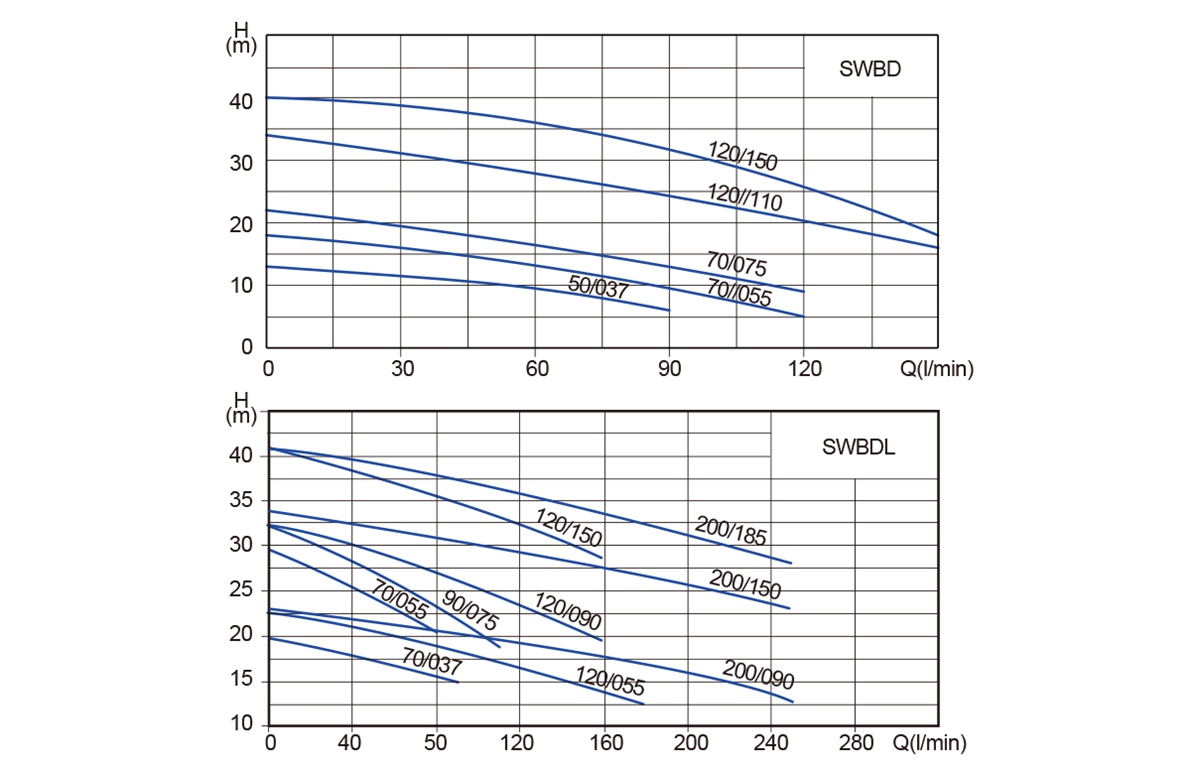

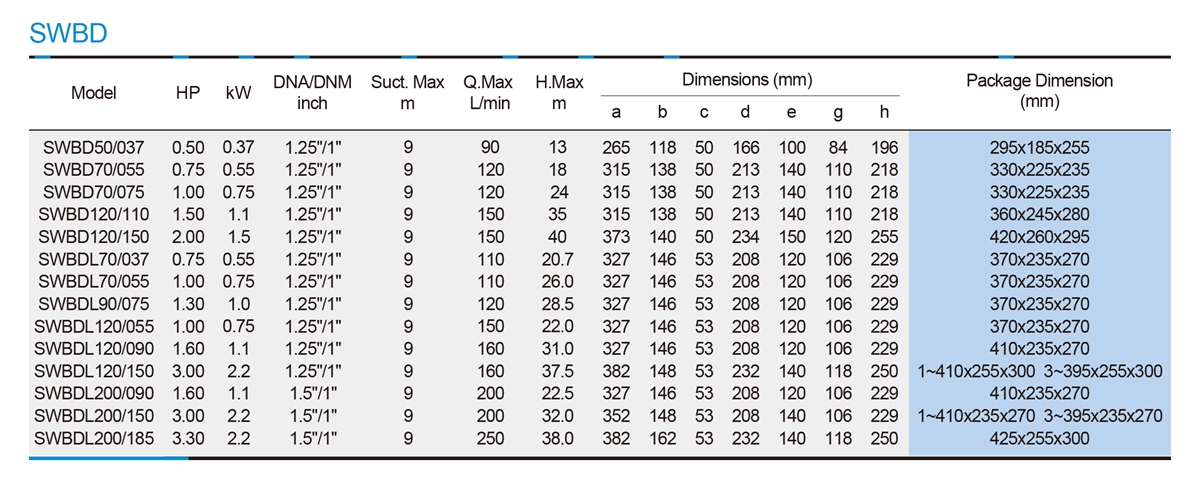

Performance Range
Power: 0.37-1.5 kw
Max flow: 90-150 l/min
Max head: 13-40 m
Voltage: 220-250v/50-60Hz
Motor
Single-Phase 220-250V/50-60Hz
Mechanical seal: Ceramic steatite /metalized carbon
Motor: closed, externally ventilated, continuously rated
Protection: IP44/IP54
Insulation: Class B/F
