Centrifugal Pump

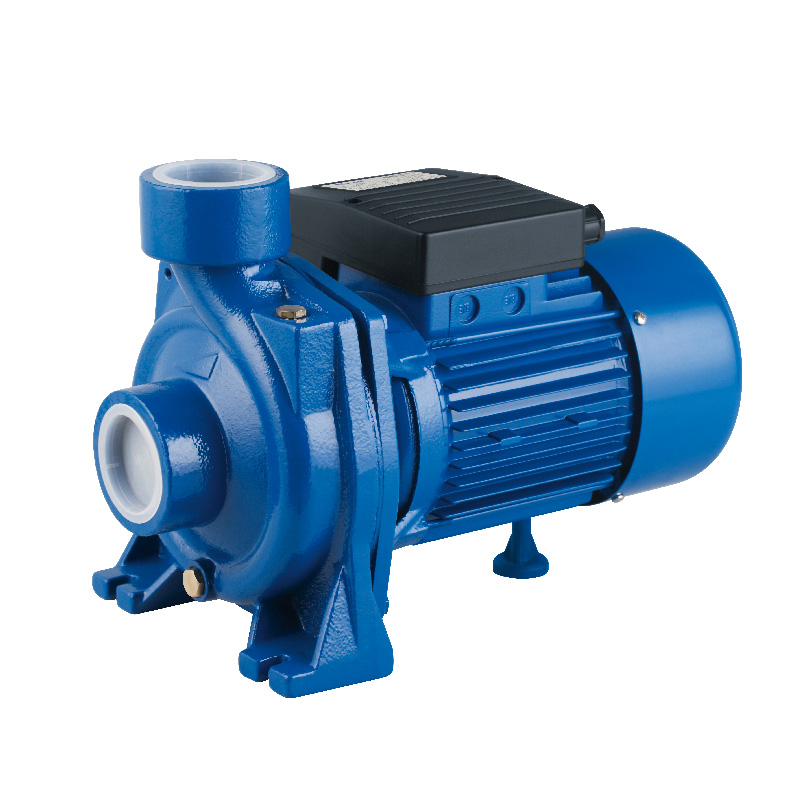

High Flow Centrifugal Pump

Share:

Description

Theses pumps can be used to transfer clean water or other similar water in physical and chemical properties It is suitable for industrial use and urban water supply, pressure boosting for high buildings and fire system, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.


Application

Water supply from wells or reservoirs.

Domestic use,for civil and industrial applications.

Garden use and irrigation.


Features

-Compact size and are extremely reliable performance

-High delivery rates under continuous or heavy duty

-Almost maintenance-free

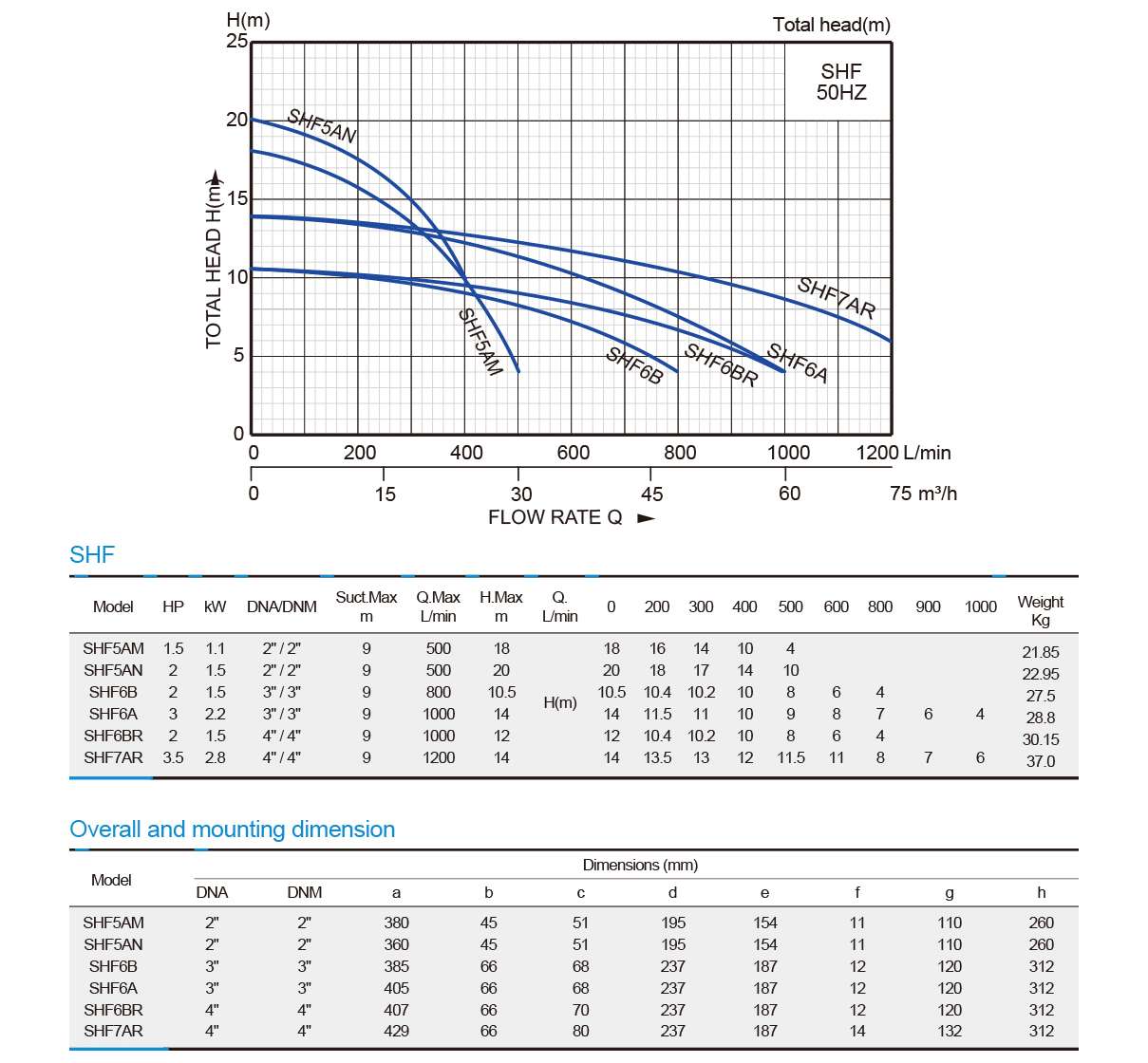

Performance Range

Power: 0.37-3 kw

Max flow: 65-1000 l/min

Max head: 12.5-28 m

Voltage: 220-250v/50-60Hz;

380V/50-60Hz



Motor

Single-Phase 220-250V/50-60Hz

Three-Phase 380V/50-60Hz

Mechanical seal: Ceramic steatite /metalized carbon

Motor: closed, externally ventilated, continuously rated

Protection: IP44/IP54

Insulation: Class B/F


High flow centrifugal pump
