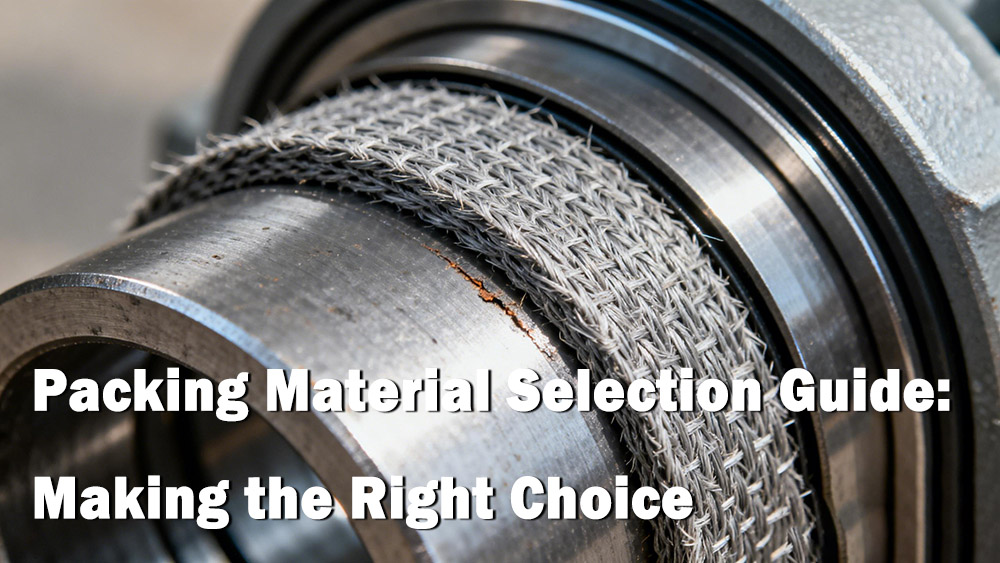

Packing Material Selection Guide: Making the Right Choice

Choosing the correct gland packing is not a matter of guesswork; it is a technical decision that directly impacts pump performance, reliability, and operational safety. Using the wrong material can lead to premature failure, shaft damage, excessive leakage, and costly downtime. A systematic approach to packing material selection ensures that the chosen product aligns perfectly with the demands of the application.

This section provides a decision-making framework based on critical operating parameters. By evaluating each factor, you can confidently narrow down your options and identify the optimal packing material for your specific pump.

Key Selection Metrics (The STAMP Method)

A proven method for evaluating application requirements is the STAMP acronym, which covers the essential variables:

• S - Size: While not a material selection metric, ensuring you have the correct cross-sectional size of the packing is the first step.

• T - Temperature: The operating temperature of the fluid is a primary limiting factor. Materials have specific temperature ranges, and exceeding them will cause the packing to degrade, harden, or lose its sealing ability. Consider both continuous operating temperatures and any potential temperature spikes.

• A - Application: What is the pump doing? Is it a continuous-duty water pump, an intermittent slurry pump, or a chemical transfer pump? The pump's function and duty cycle influence the required durability and resilience of the packing.

• M - Media: The fluid being pumped is arguably the most critical factor. You must consider its chemical properties (pH level), whether it is abrasive (containing solids like sand or crystals), or if it is a clean, non-corrosive liquid. Fluid compatibility is non-negotiable.

• P - Pressure & Speed: The internal pressure within the stuffing box and the surface speed of the shaft dictate the mechanical strength required of the packing. High pressures can extrude softer materials, while high shaft speeds generate significant frictional heat.

A Gland Packing Decision Tree

To simplify the selection process, follow this logical workflow:

1.Identify the Media (Fluid): Start here. The chemical compatibility of the packing material with the process fluid trumps all other factors.

• Acids & Caustics: PTFE-based packings offer the broadest chemical resistance. Graphite packings are also excellent for most chemicals, except for strong oxidizers.

• Abrasive Slurries: Aramid (Kevlar) or hybrid packings with Aramid corners are designed for high abrasion resistance.

• Water, Brine, General Service: Natural fibers (like flax) or synthetic general-purpose packings are often sufficient and cost-effective.

• Food, Pharma, or High-Purity: Use virgin PTFE or other FDA-compliant materials to prevent contamination.

2.Determine the Operating Temperature: Once you have a list of chemically compatible materials, filter it by temperature.

• High Temperature (>250°C / 480°F): Graphite and carbon-based packings are the primary choice. They can handle extreme heat and effectively dissipate friction.

• Moderate Temperature (-40°C to 250°C / -40°F to 480°F): Graphite-filled PTFE (GFO) and other synthetics offer a wide operating window.

• Low Temperature (<100°C / 212°F): Natural fibers and many synthetic packings perform well in this range.

3.Evaluate Pressure and Shaft Speed: The combination of pressure and speed (often expressed as a "PV factor") determines the mechanical stress on the packing.

• High Pressure/High Speed: Select packings with structural reinforcement, such as carbon fiber or aramid corners, to prevent extrusion. Dense, interlocked braids also perform better under high mechanical loads.

• Low Pressure/Low Speed: Softer, more pliable packings like cotton or flexible graphite are suitable and require less gland pressure to seal, reducing friction and shaft wear.

Material vs. Application Compatibility Chart

This table provides a quick reference for matching common packing materials to various industrial applications.

By systematically applying these selection metrics and using the compatibility chart as a guide, you can move from a broad range of options to a specific, well-suited packing material. This diligent approach is the foundation for a reliable and long-lasting seal.
