Selecting the right pump for your borehole is vital to achieving reliable, cost-effective, and long-lasting water access. Proper system design directly impacts your pump's performance, energy efficiency, and lifespan. Whether you're sourcing water for irrigation, domestic supply, or industrial applications, matching the pump to your borehole's specific requirements ensures optimal results.

This guide walks you through everything you need to know, from understanding borehole requirements and pump types to sizing essentials and installation tips. By the end, you'll have a clearer path to designing a pumping system tailored to your needs.

Understanding Borehole and Deep Well Requirements

What Is a Deep Well or Borehole?

A deep well—often categorized as any well deeper than 25 meters (about 82 feet)—is a vertical shaft drilled into the earth to access groundwater. Boreholes are integral to many applications, including:

• Irrigation for agricultural fields.

• Domestic water supply for homes and communities.

• Industrial uses, such as cooling systems or manufacturing processes.

Because these wells reach great depths, selecting a pump capable of performing under these conditions is critical.

Factors That Influence Pump Selection

Choosing the right pump goes beyond just picking one that works. Several key factors influence pump selection:

• Depth to water table

Take into account the static water level (when water is at rest) and the dynamic water level (after pumping begins). The deeper the water table, the stronger the pump you'll need.

• Flow rate requirements

How much water do you need daily? For example, a small garden might demand 5–10 gallons per minute (GPM), while a commercial farm may require much higher volumes.

• Borehole diameter

Pumps must fit comfortably within the borehole while allowing room for safe operation. Borehole diameters typically range from 4 to 10 inches.

• Water quality

Sand, minerals, or an imbalanced pH can harm your pump over time. Some models are specifically designed to handle challenging water conditions, like stainless steel or sand-proof pumps.

Types of Deep Well Pumps

Different applications demand different pump designs. Here are the primary types of deep well pumps and their uses:

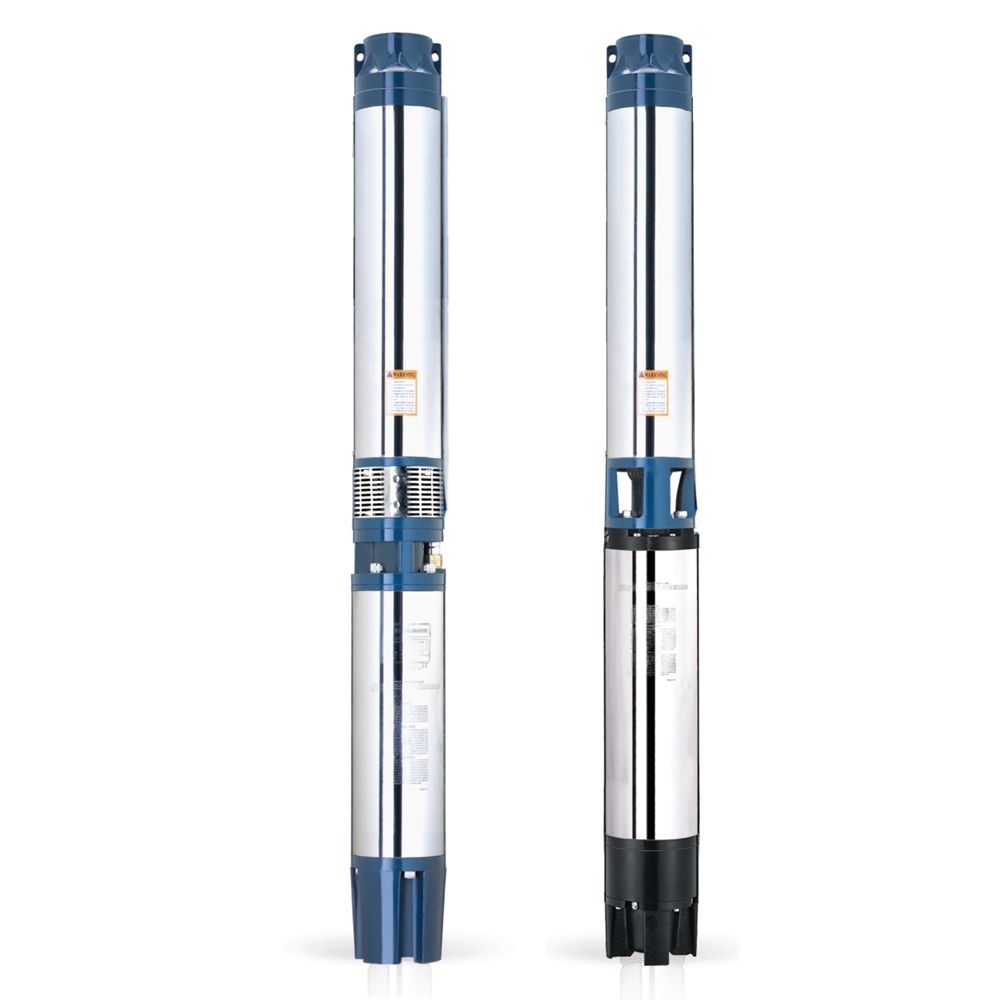

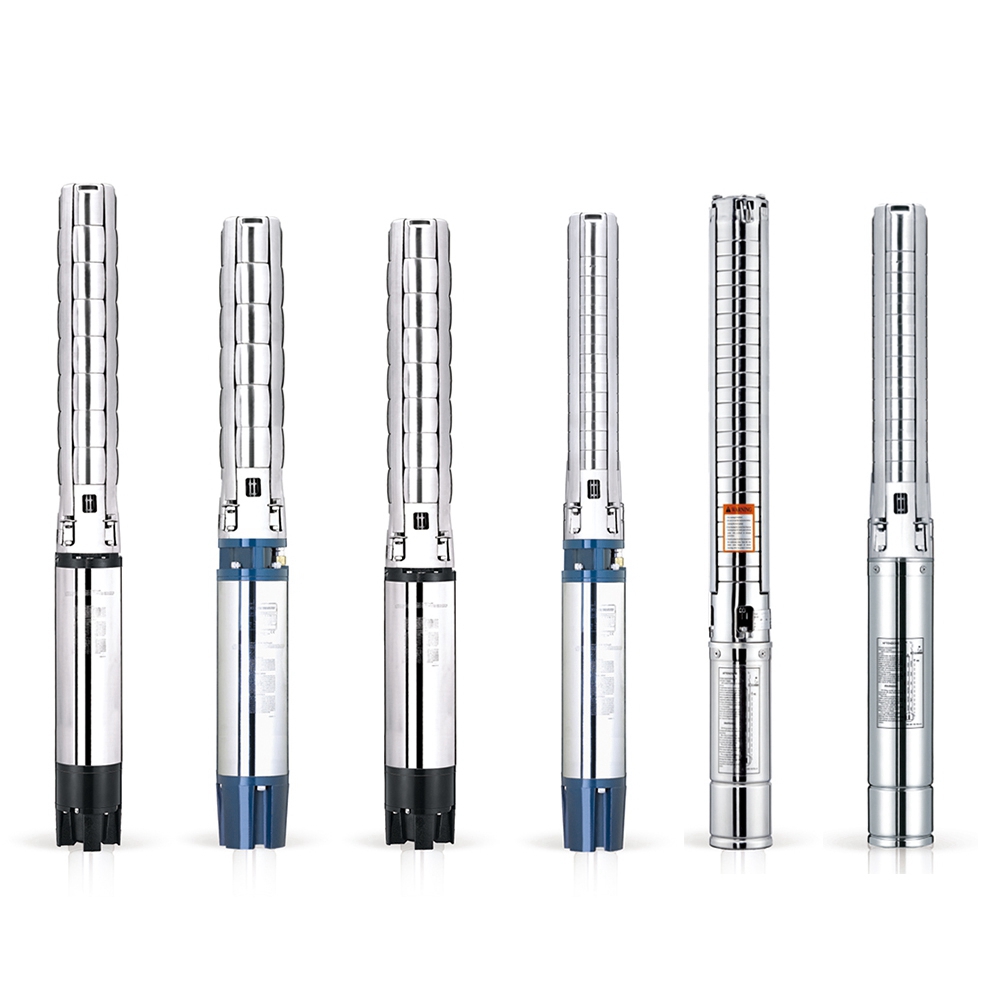

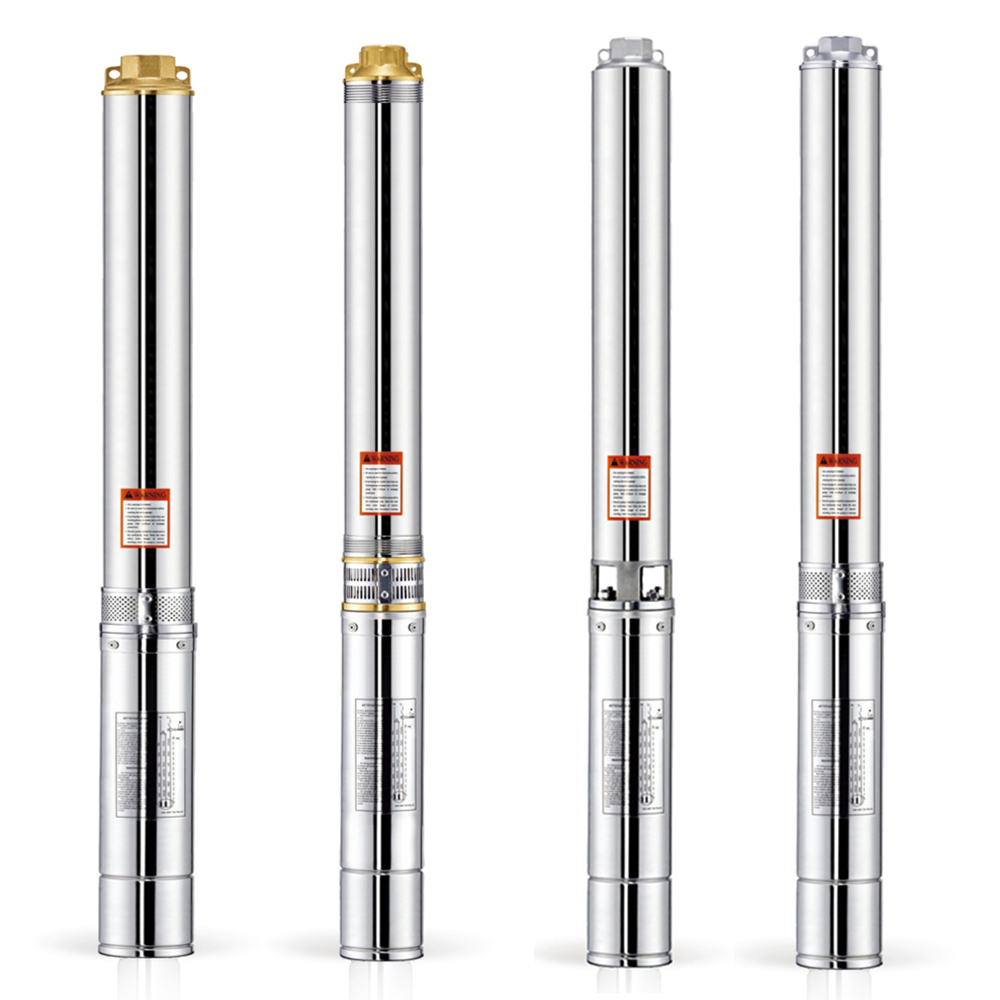

Submersible Deep Well Pumps

Submersible pumps consist of a motor and a pump housed together in a sealed unit, submerged directly into the water. These pumps are well-suited for:

• Narrow boreholes

Their slim design makes them ideal for tight spaces.

• Deep water levels

With their robust capabilities, they can efficiently draw water from several hundred feet below the surface.

Vertical Turbine Pumps

Vertical turbine pumps are generally used for larger water demands, such as:

• Agricultural wells

Designed to handle high capacities, these pumps are essential for irrigation in expansive fields.

• Large-diameter boreholes

Their size and power make them perfect for industrial and commercial water needs.

Jet Pumps (for Shallow to Medium Depths)

Jet pumps are not typically ideal for deep wells but deserve mention for specific circumstances. These pumps work best with a water table within 25 feet, making them a better option for shallow boreholes.

Pump Sizing and System Design Essentials

Beyond understanding pump types, appropriate sizing and configuration are essential for long-term performance.

How to Calculate Required Flow and Head

Two critical measurements affect pump sizing:

• Gallons per minute (GPM)

This reflects your system's flow rate. For instance, a residential household may only require 10–15 GPM, while a commercial operation will need significantly higher output.

• Total dynamic head (TDH)

TDH accounts for the vertical lift, friction loss in pipes, and system pressure requirements. By adding these values, you can determine the pump's required power to ensure consistent water flow.

Choosing the Right Motor

The motor type significantly influences energy efficiency and operational reliability. Consider:

• Single-phase motors for smaller systems where voltage availability is limited.

• Three-phase motors, which are more efficient for larger-scale applications, offering better startup torque and reduced energy costs.

Matching Pump Size to Borehole Diameter

Pump size must align with the borehole's diameter. Common diameters range from 4 to 10 inches, and ensuring proper clearance prevents overheating, mechanical strain, or improper alignment.

Supporting Components for a Complete System

The pump is just one piece of a working system. Supporting components play a crucial role in keeping everything running smoothly.

Control Boxes and Starters

From basic manual controls to advanced variable frequency drives (VFDs), control systems provide flexibility and protection for your pump. VFDs, for example, can help regulate flow and pressure, extending your pump's lifespan.

Check Valves and Piping

Check valves prevent water from flowing back into the borehole, reducing wear on your pump during rest periods. Likewise, choosing durable piping materials—like PVC, HDPE, or galvanized steel—is essential for long-term use in harsh conditions.

Protection Devices

Invest in protection devices to extend the life of your system, such as:

• Dry run protection to detect and stop the pump when no water is present.

• Overload sensors to protect motors from overheating or excessive current.

Installation and Maintenance Tips

A system can only perform as well as its installation and upkeep allow.

Professional vs. DIY Installation

While some installations may seem manageable, deep well systems often require specialized expertise. Consider hiring a professional if:

• The borehole dimensions are complex.

• Advanced equipment, like VFDs, needs programming.

• Large-scale systems are involved.

Maintenance Best Practices

Routine maintenance ensures long-term performance. Recommended practices include:

• Testing pump output periodically to monitor performance.

• Checking and cleaning filters to prevent blockages.

• Inspecting cables and motors for damage or signs of wear.

Common Mistakes to Avoid

Avoid these pitfalls to save yourself time, money, and frustration:

Oversizing or Undersizing the Pump

An oversized pump wastes energy, driving up costs, while an undersized pump won't meet your water needs. Correct sizing is crucial.

Ignoring Water Quality Factors

If water contains sand or corrosive minerals, failing to use reinforced materials like stainless steel can lead to premature wear and tear.

Improper Electrical Configuration

Ensure the motor type matches the electrical supply and select control boxes compatible with your pump's requirements.

Conclusion

Designing a deep well pump system tailored to your borehole is essential for ensuring reliable, energy-efficient water access. By carefully considering factors like borehole dimensions, water quality, and flow rate needs, you can avoid costly mistakes and achieve long-term success.

For tailored solutions, consult professional suppliers or pump system manufacturers who can guide you through the selection and design process. When done right, your investment will pay off in sustained performance, reduced downtime, and cost savings for years to come.
