Garden Pump

High Lift Pump

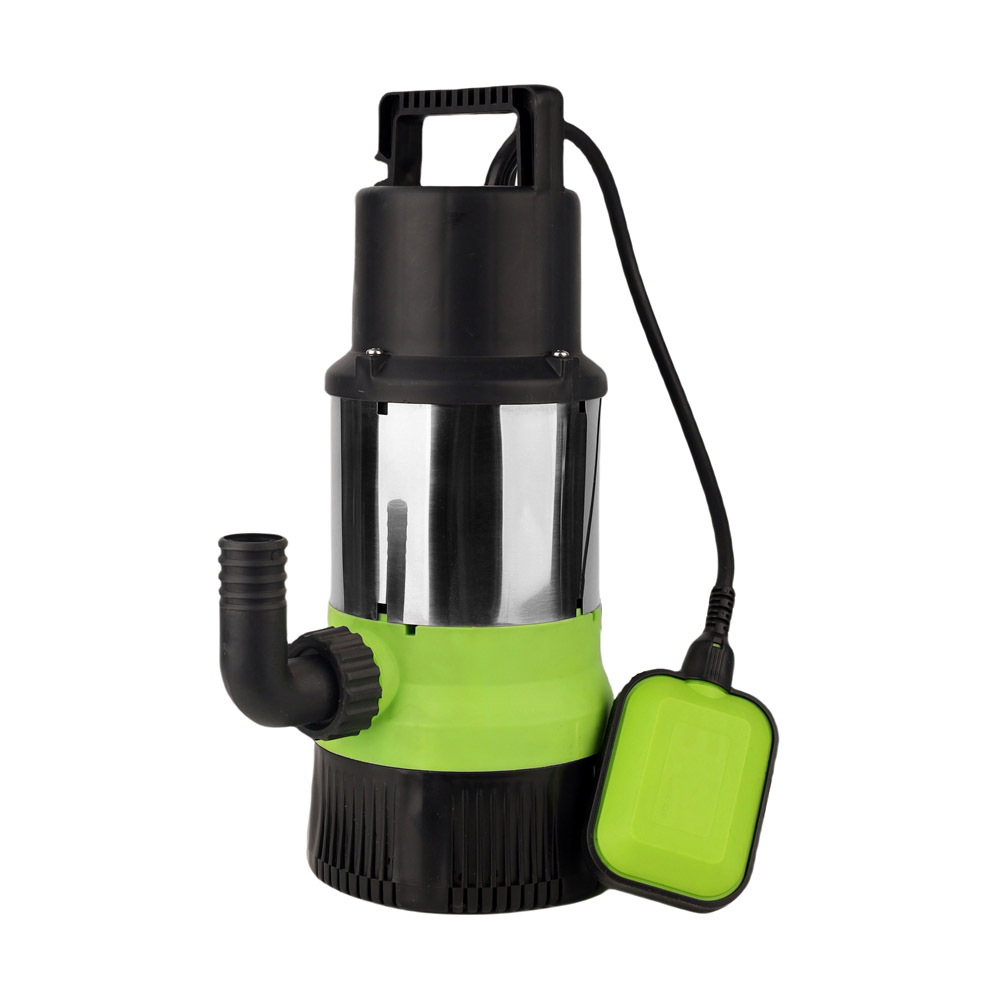

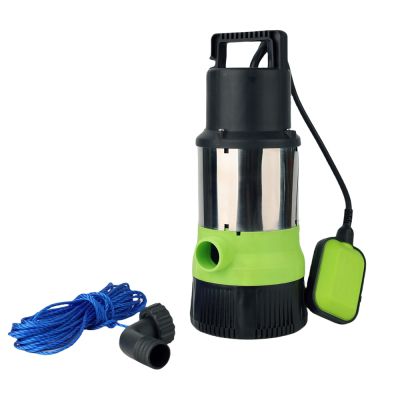

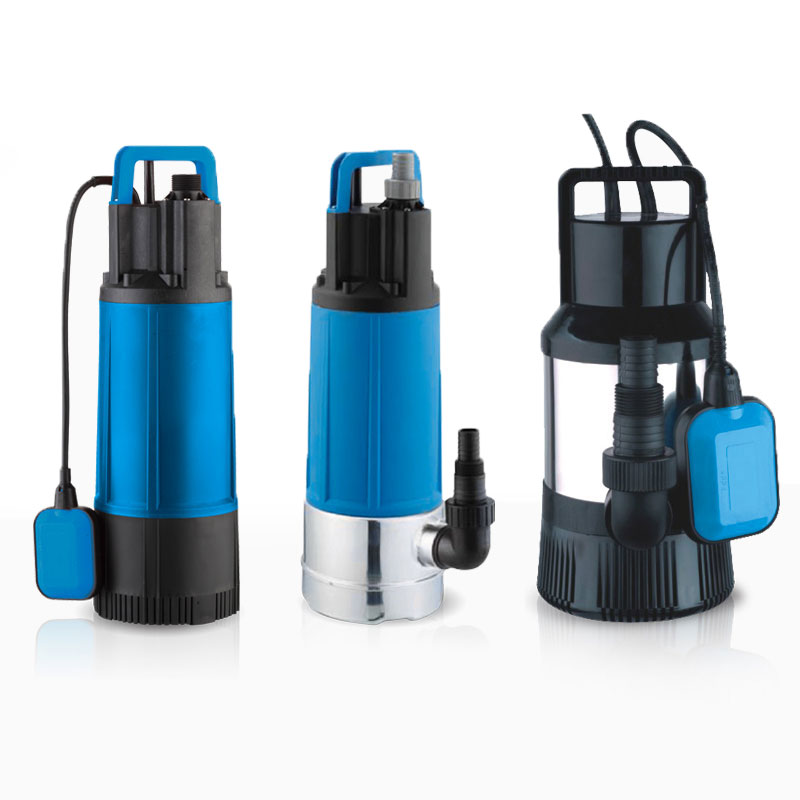

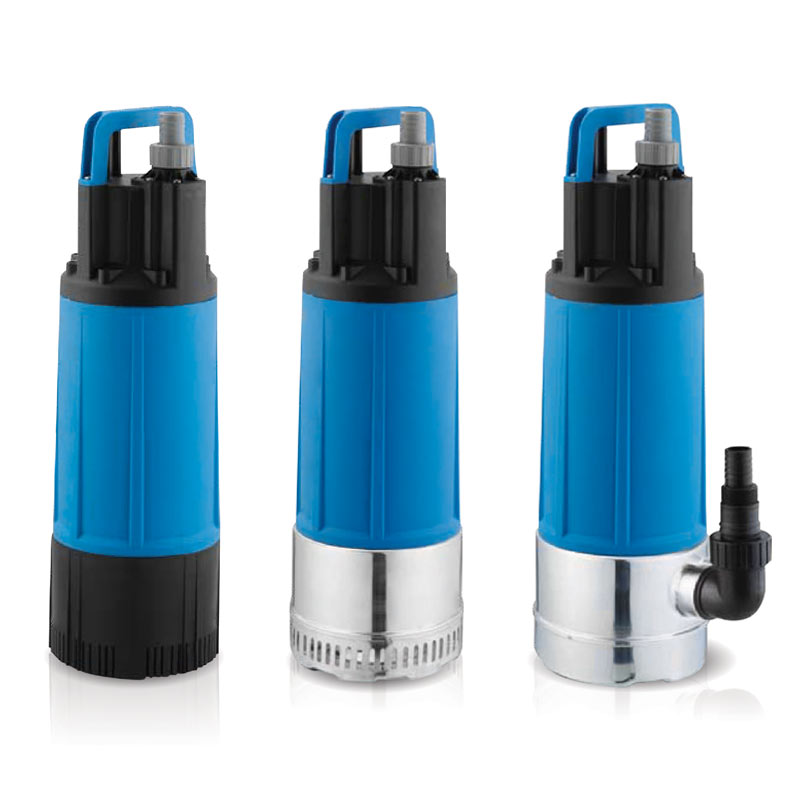

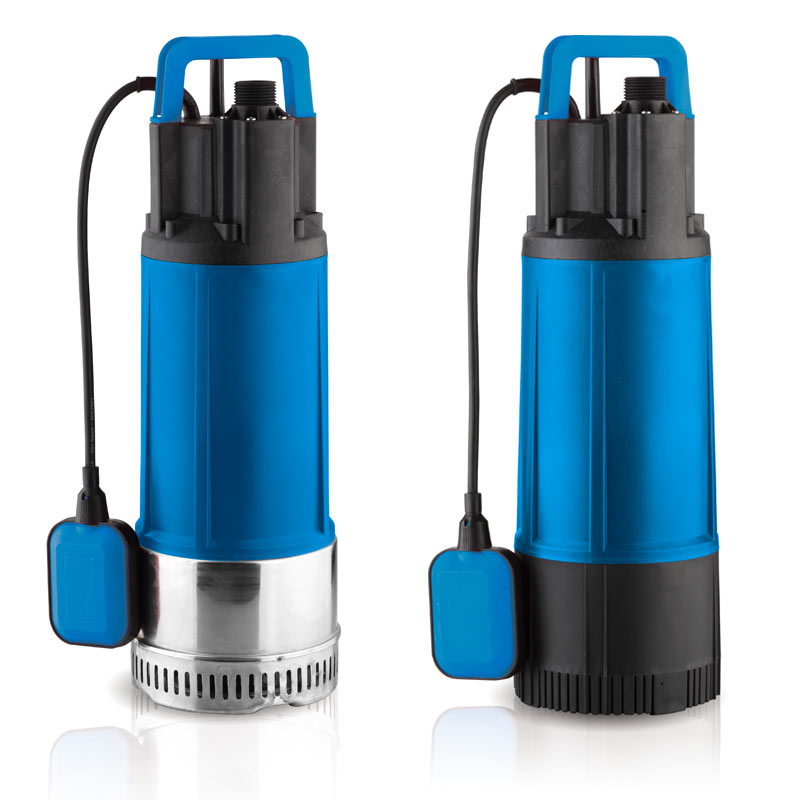

Portable Plastic/Stainless Steel Vertical Multistage High Head Submersible Pump


Share:

Description

Applications

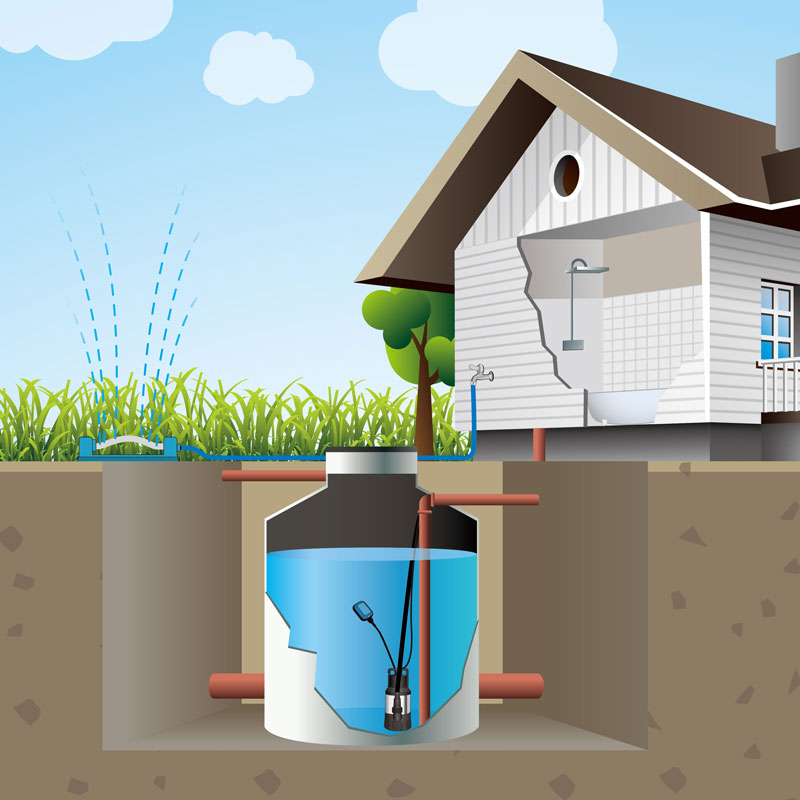

Ideal for use in rain water systems and watering networks to pump water from cisterns, ponds, and wells, and for other applications requiring high pressure.



Features

-Multi-impeller submersible pump with integrated electronics for automatic switching on and off

-Available with 3 or 4 impellers

-Built-in pressure switch, control circuit board and sensor

-Dry run protection

-Built-in non-return valve at the delivery

-Equipped with multistage impellers to ensure powerful water supplied with high pressure

-Integrated filter prevent the pump from suctioning too large impurities

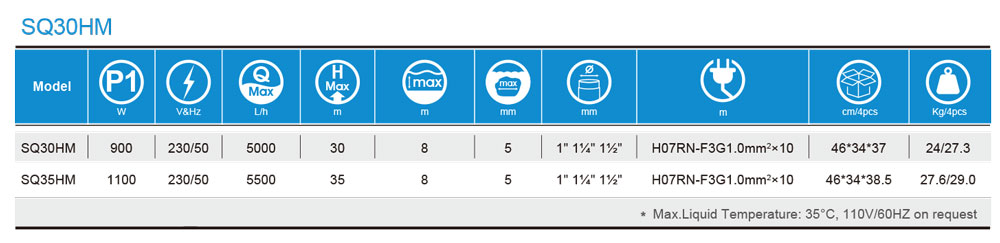

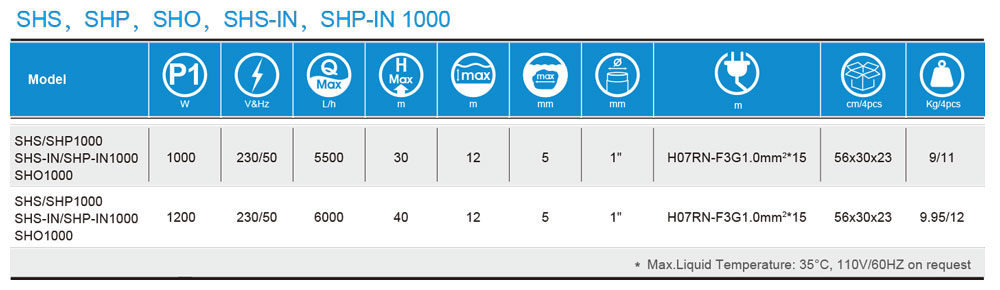

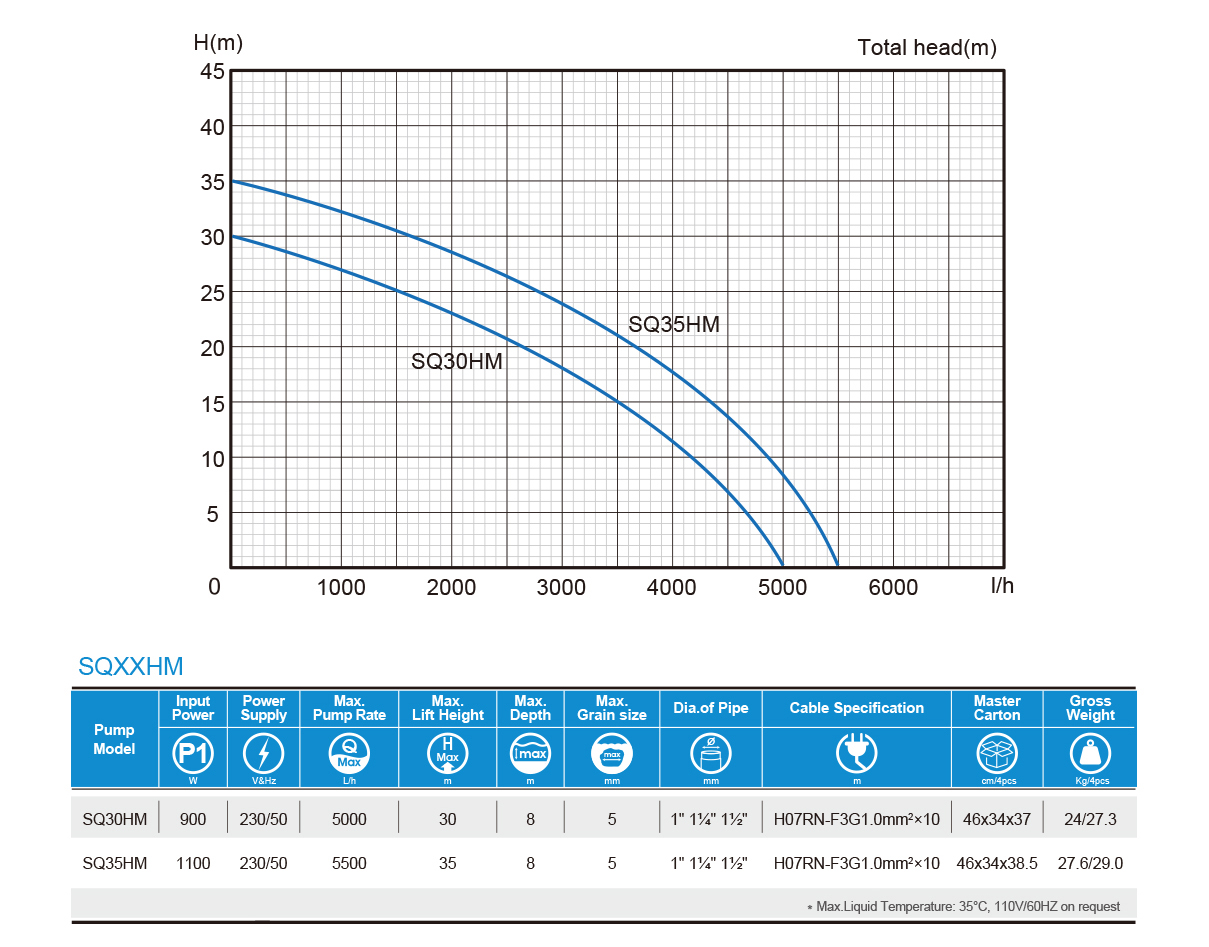

Performance Range

Flow rate up to 5500L/H-6000L/H

Head up to 30m-40m



Operating Conditions

Liquid temperature up to +35 C

Ambient temperature up to +40C

Max. Immersion depth 12m



Electric Motor

Two-Pole induction motor,50HZ  (n=2850r/min)

Single phase 220v-240v

With thermal protector incorporated into the wind

With float switch for automatic start /stop

Insulation Class F

Protection IPX8


Components Materials

Pump body: pp/stainless steel

Impeller : pp

Shaft : Stainless steel 201

Seal : Mechanical seal



Options Available On Request

Special Mechanical seal

Other Voltages or 60HZ Frequency

Pumps without the float switch

Longer or shorter cable
