Garden Pump

New-2in1 pump

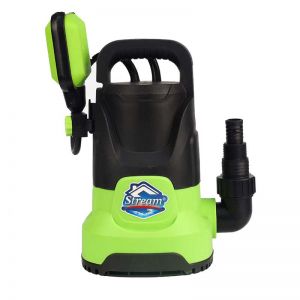

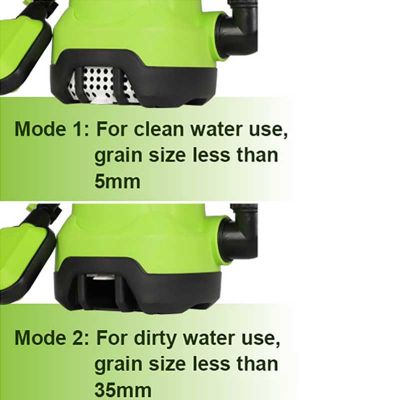

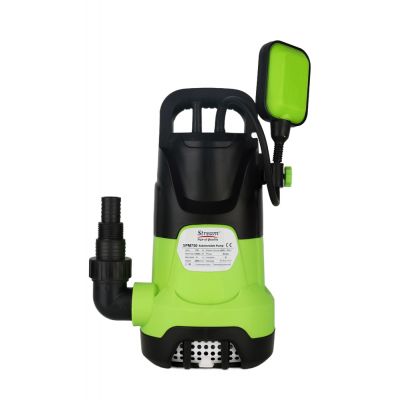

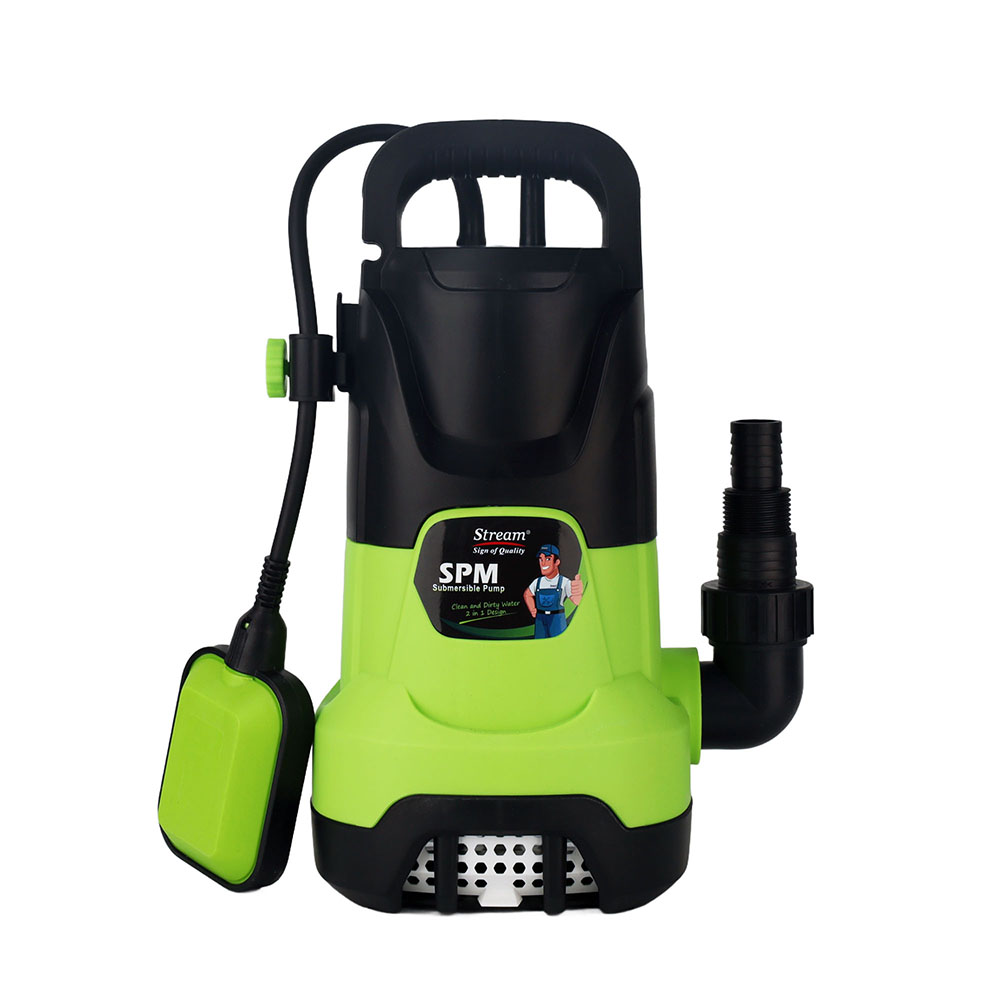

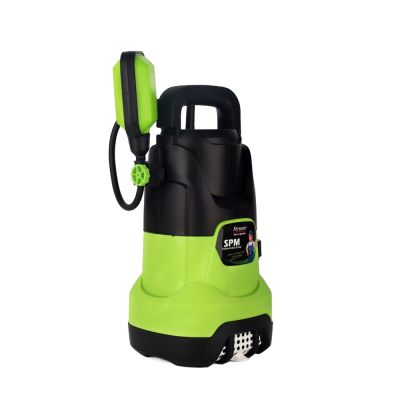

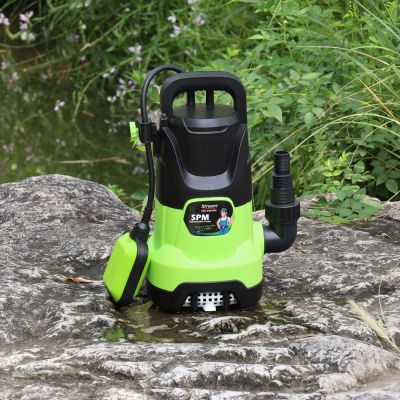

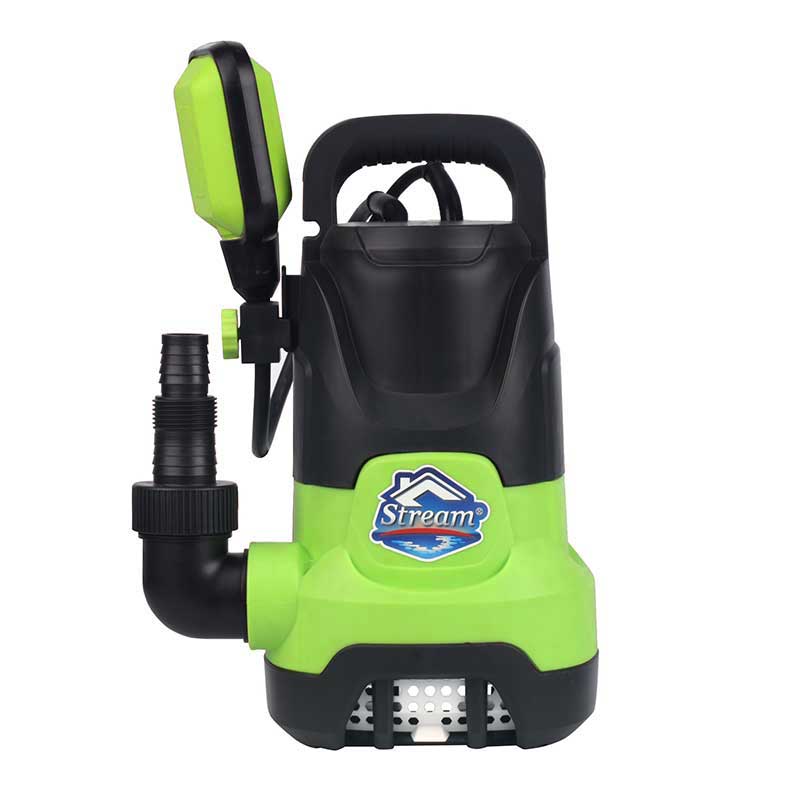

2-in-1 clean and dirty water submersible garden pump

Share:

Description

New-2in1 pump


Operating conditions

Liquid temperature up to +35 ℃

Ambient temperature up to +40℃

Max. Immersion depth 5m


Electric motor

Two-Pole induction motor,50Hz(n=2850r/min)

Single phase 220v-240v

With thermal protector incorporated into the wind

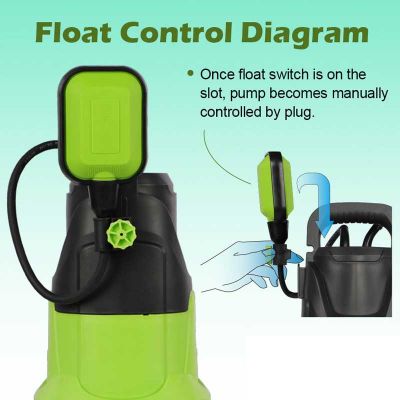

With float switch for automatic start /stop

Insulation Class F

Protection IPX8


Components materials

Pump body: pp

Impeller : pp

Shaft : 45# carbon steel anti-corrosion

Seal : Mechanical seal


Options available on request

Special Mechanical seal

Other Voltages or 60HZ Frequency

Pumps without the float switch

Longer or shorter cable
