Sewage Pump

Submersible heavy duty pump

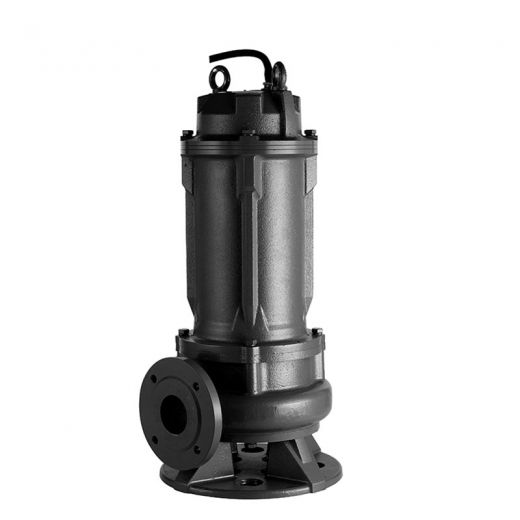

Industrial heavy duty cutting/grinder submersible sewage pump

Share:

Description

Stream SWQ is spiral vortex impeller pump with strong cutter, tougher materials and stronger performance. It is suitable for draining dirty water in domestic and civil applications and for pumping dirty water containing suspended solids except sand, pebbles or screws.


Submersible Heavy Duty Pump


Applications:

Widely used in mining, construction, municipal, environmental protection;

Suitable for draining water containing particles such as short fibers, paper scraps,soft solid,such

as muddy water, dirty water, domestic wastewater, sewage, manure;

With a good capacity of anti-clogging and anti-winding, the cutter pump are especially applicable for pumping household wastewater and mixed fluid with insoluble solids content such as fibers, bags, belts, straw, cloth, paper, sand;

Ideal equipment for agricultural irrigation and drainage,pool silt cleaning and site construction.

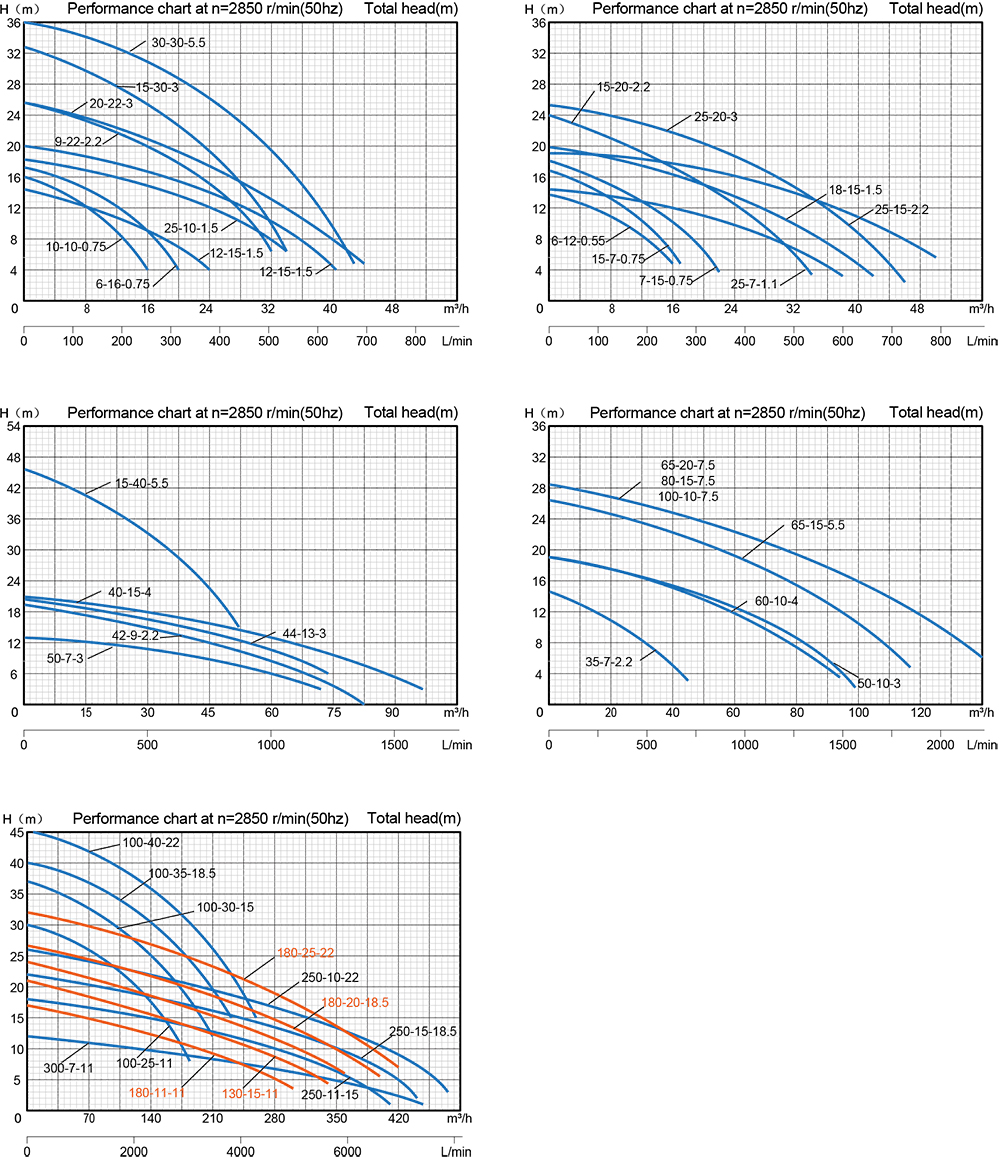

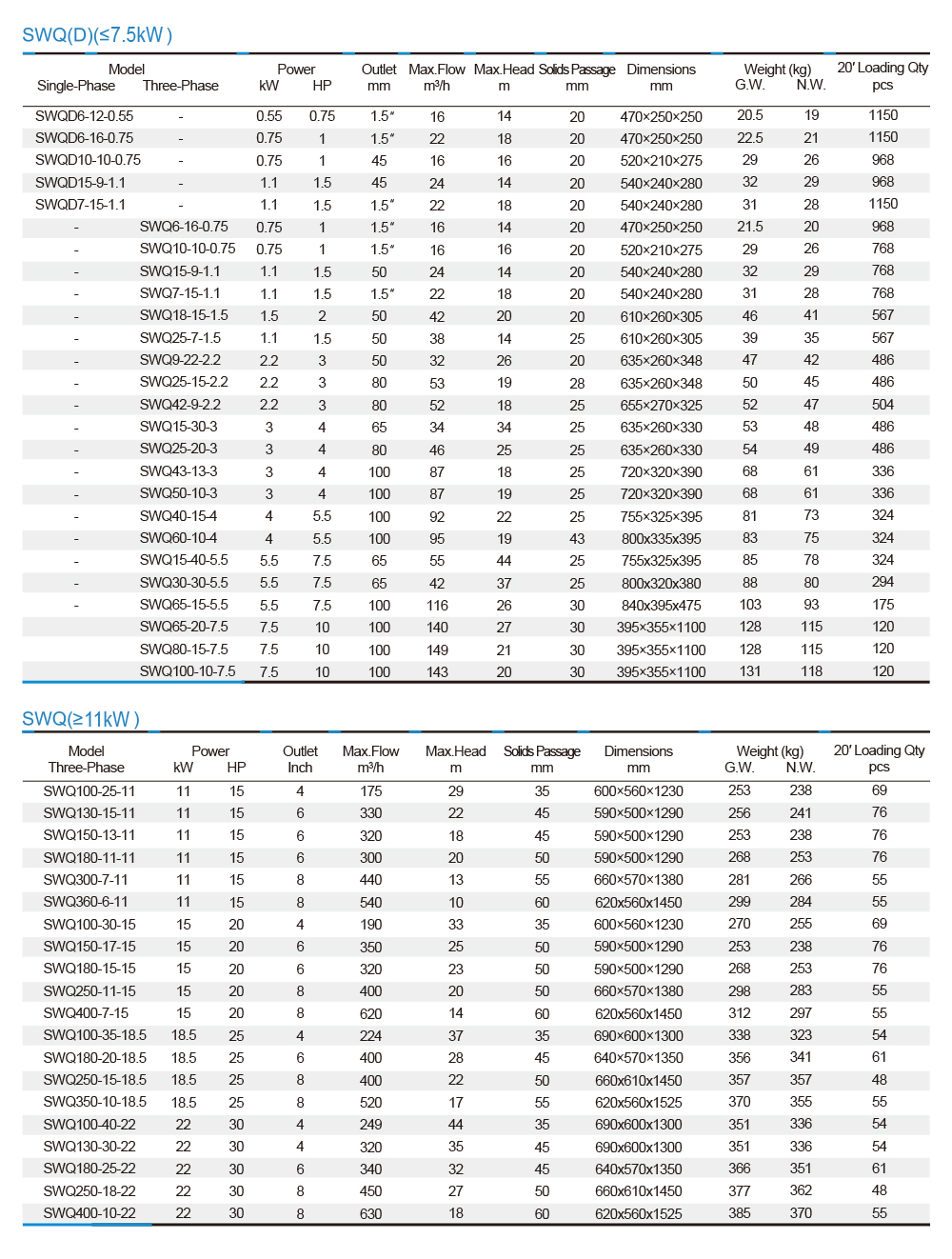

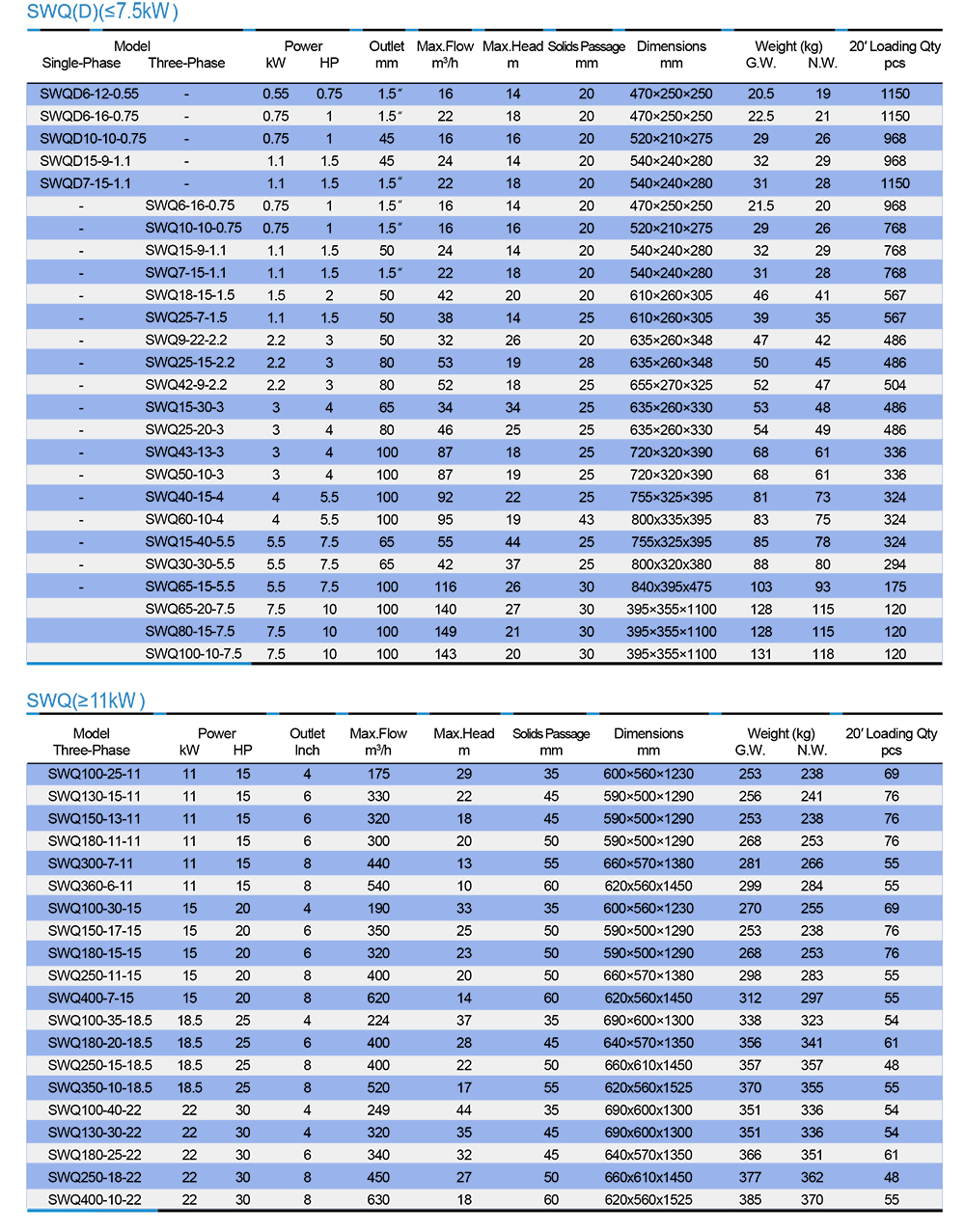

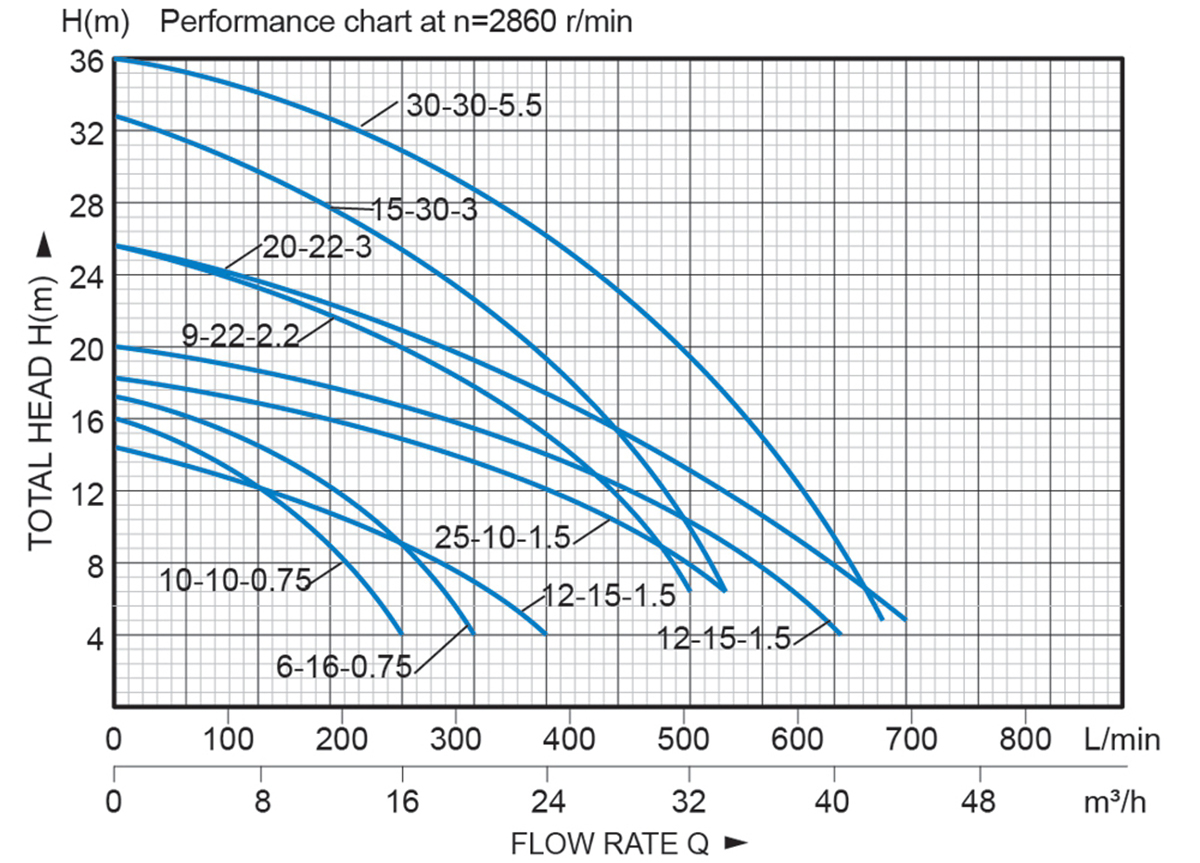

Performance Range:

Power range from 0.55kw to 22kw

Flow rate up to 630 m³/h

Head up to 60 m

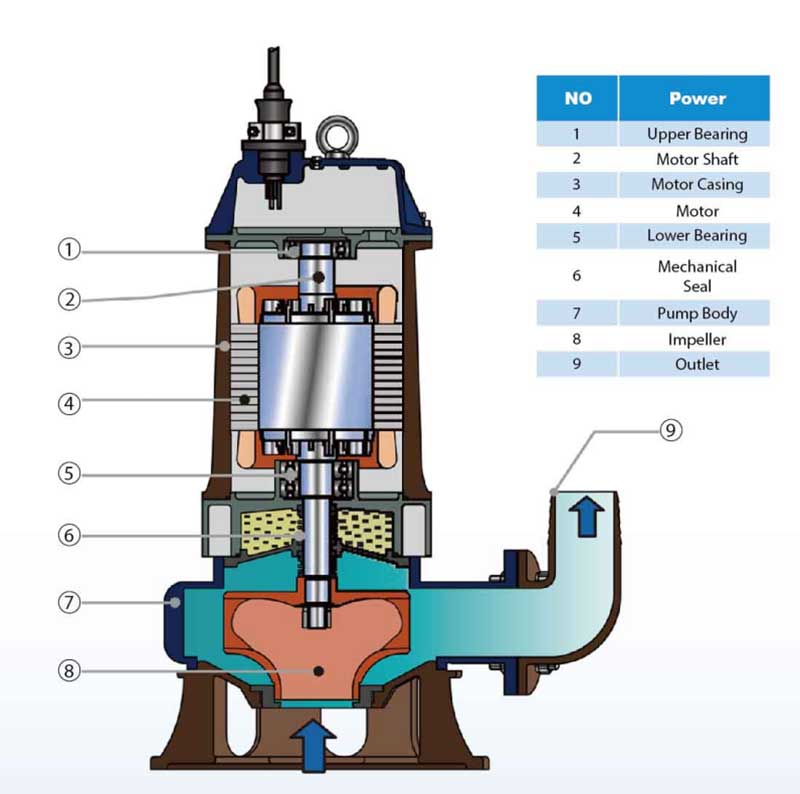

Features and advantages:

2 pole induction motor with 100% copper wire;

Wear-resistant Cutting impeller;

Durable cast iron material for pump body & motor bracket ;

Shaft:SS420;

Mechanical seal:Ceramic graphite, Silicon Carbide double-sides;

Single phase with built-in thermal protector to protect the motor;

Ring handle on option;

50/60HZ both available;

Insulation Class:B (F on option)

Protection Class:IP68



Working conditions:

Submersible depth:5m

Liquid temperature up to <40°C

Ambient temperature up to <40°C

Max working pressure: 6 bar

Maximum diameter of the solid grain less than 30% of the pump outlet.


Catalogue
