Peripheral Pump
SDB60:0.37kW, Q max. is 40L/min, H max. is 38m
SDB70:0.55kW, Q max. is 45L/min, H max. is 55m
SDB80:0.75kW, Q max. is 46L/min, H max. is 65m
Description
The SDB series peripheral pumps offer the advantage of delivering high pressure while consuming relatively low power. They exhibit remarkably stable operating characteristics. These pumps are designed for the transfer of clean water and non-corrosive liquids, provided they are free from sand or other solid particles.
Thanks to their reliability, ease of use, and cost-effectiveness, these pumps are ideal for domestic purposes, particularly in conjunction with small pressure systems and for garden and allotment irrigation.
Features
Good performance and stable operation
Stream exclusive design appearance lines
High efficiency and energy saving
Application
Pipeline pressurization
Garden irrigation
Domestic water supply
Working Conditions
Maximum ambient temperature up to +40℃
Maximum fluid temperature up to 80℃
Maximum pressure up to 10 bar
Materials
Pump body: cast iron
Motor housing: aluminum
Motor:closed, externally ventilated
Impeller:brass
Insulation:B/F
Duty:continuous rated
Mechanical Seal:steatite ceramic/metalized carbon

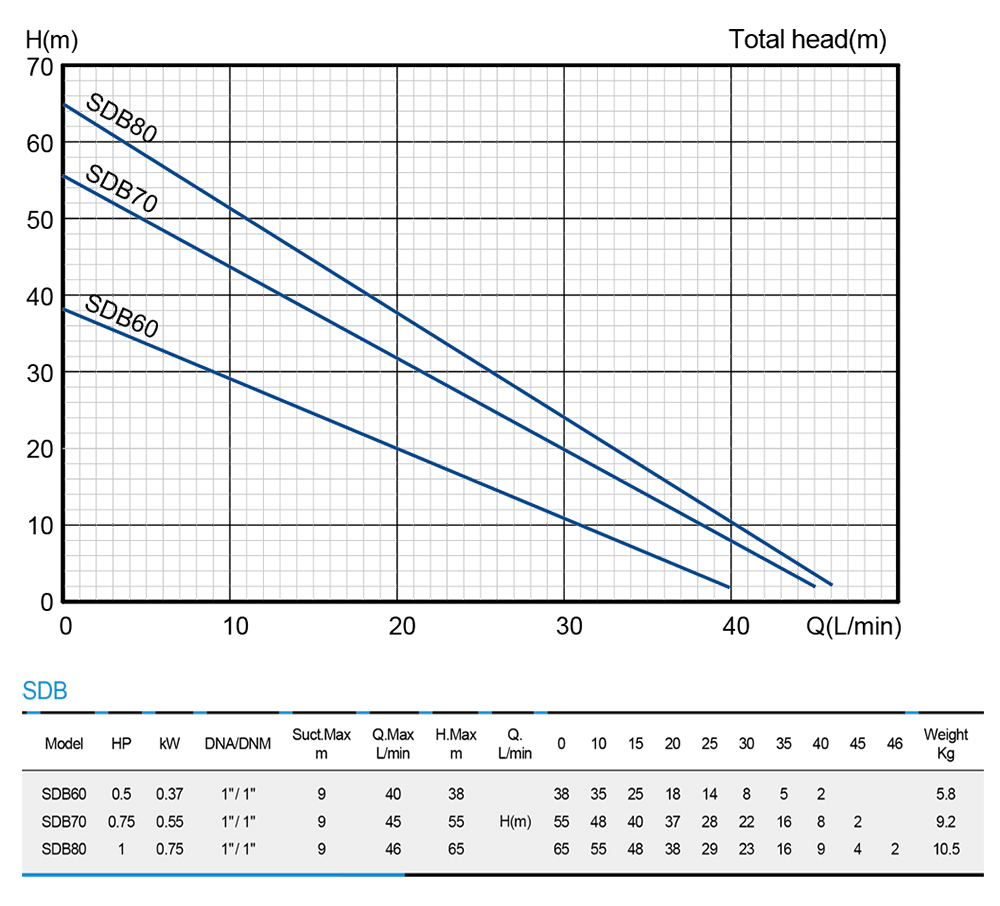

Performance Curve & Parameter
