Peripheral Pump
Description
The SQB series are peripheral pump, with peripheral impeller containing numerous radial blades i nits edge, suitable for pumping clean water and chemically non-aggressive liquid.
Application
Garden sprinkleing, washing booths
Water supply from wells and pools
Pressure boosting, villa pressurization
Features
-Simple construction and easy to stall
-High efficiency and energy savin
-Economical, reliable and safe

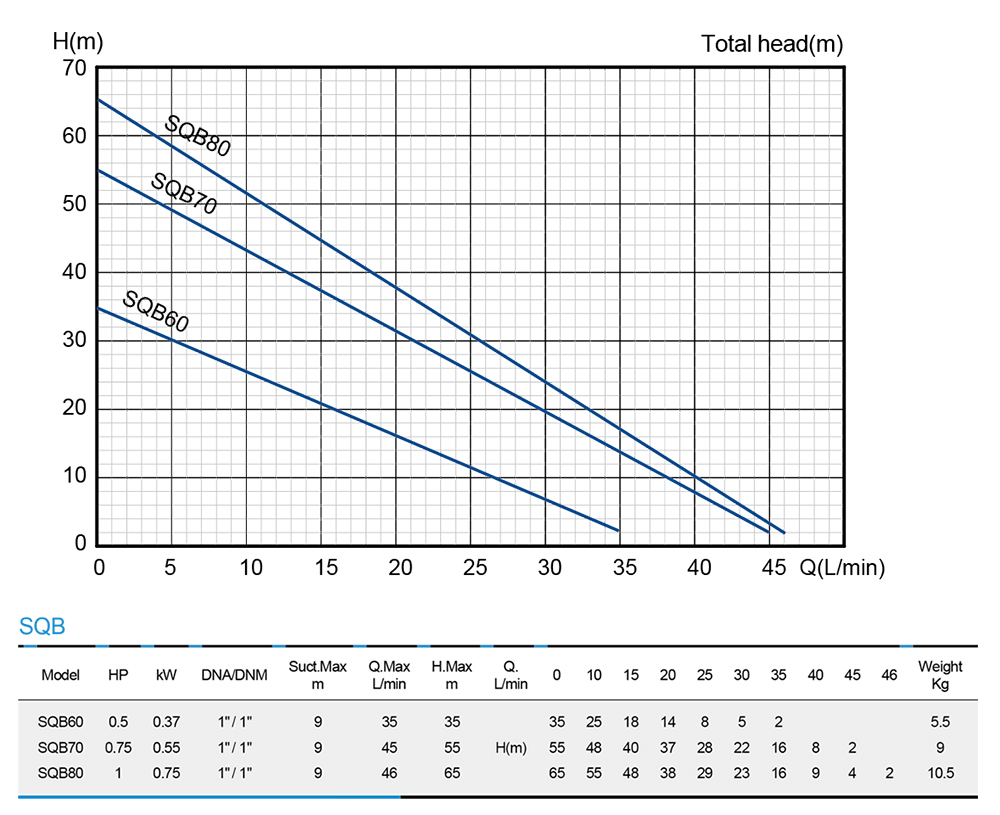

Performance Range
SQB60, 0.37kw, Q max. is 35L/min, H max. is 35m, 220V/50Hz
SQB70, 0.55kw, Q max. is 45L/min, H max. is 55m, 220V/50Hz
SQB80, 0.75kw, Q max. is 46L/min, H max. is 65m, 220V/50Hz
Operating conditions
Maximum ambient temperature up to +40℃
Maximum fluid temperature up to 80℃
Maximum pressure up to 10 bar
Motor
Pump body: cast iron
Motor housing: aluminum
Motor:closed, externally ventilated
