Multistage Pump

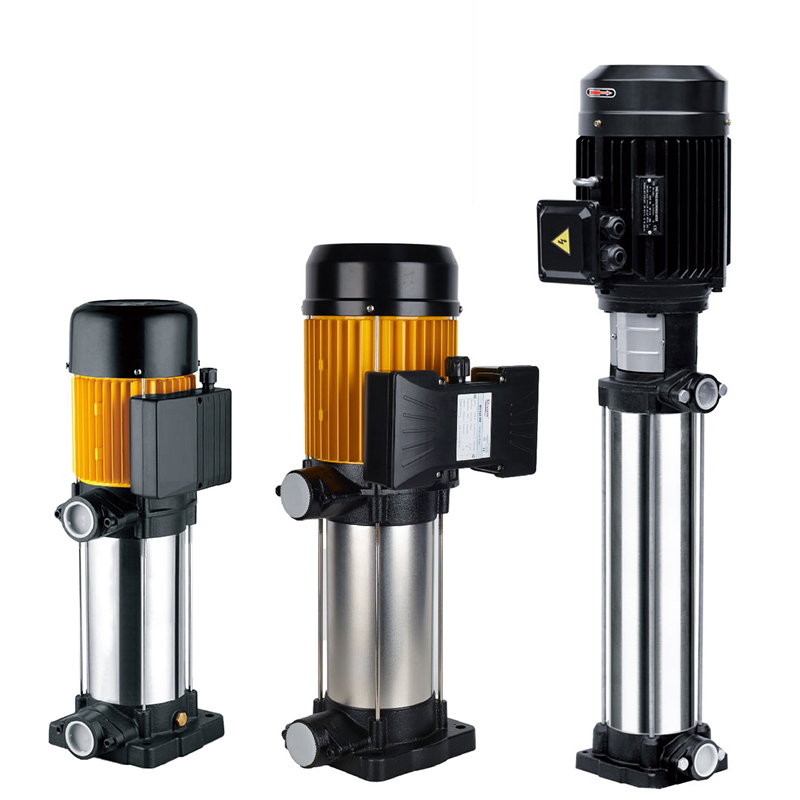

Vertical Multistage Centrifugal Pump — MV

Capacity range:0~365 L/min

Max head range:22~130 m

Max working pressure:8~10 bar

Share:

Description

The MV series vertical multistage pump is another industry frontrunner, designed for efficient pumping of clean water across various applications. With a compact design and low-noise operation, this vertical pump is an ideal solution for water transfer, drip irrigation, sprinkler systems, and domestic water boosting. The MV Series excels in delivering outstanding performance, ensuring reliable water pumping with minimal noise. Its space-saving configuration makes it a sturdy and efficient choice for different water pumping needs. Whether employed in irrigation, drip systems, or household water boosting, the MV Series stands out for its exceptional performance in a vertically efficient and quiet design.

Feature

.Self-priming up to 6 m

.Stainless steel housing and cataphoresis coating for anti-rust and durability

.Silent running and high efficiency performance

.Flow rates up to 365 L/min

.Head pressure up to 13 bar

.Muti-materials for different applications

.Dry-run protection for 1 phase

Application

.Water transfer

.Sprinkler or drip irrigation

.Domestic booster or booster sets

Working Conditions

.Maximum ambient temperature up to +40℃

.Maximum fluid temperature up to 80℃

.Maximum pressure up to 10 bar

Construction Materials

.Pump body:stainless steel

.Motor housing:aluminum

.Motor:closed, externally ventilated

.Diffuser: PPO

.Impeller:PPO/stainless steel

.Insulation:B/F

.Duty:continuous rated

.Mechanical seal:steatite ceramic/metalized carbon

Performance Curve & Technical Data


Vertical Multistage Centrifugal Pump-MV

Vertical Multistage Centrifugal Pump-MV

Vertical Multistage Centrifugal Pump-MV

Vertical Multistage Centrifugal Pump-MV
