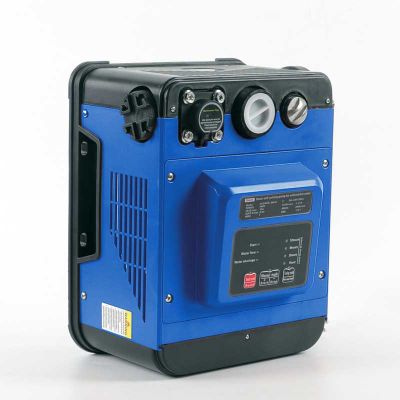

Intelligent Surface Pump

lntelligent Self- Priming Pump

Share:

Description

Linear pressure sensor is used to control the starting pressure of pump instead of traditional mechanical switch.At the same time, it has advanced flow control system.


Application

Suitable for well water pumping. family, hotel, canteen, garden irrigation and other clean water pressurization, but also solar energy, water heater, central air conditioning and other equipment supporting pressurization preferred.


Features

-Automatic identification of pipe pressure

-Automatic regulation of starting pressure

-The chip has memory function

-Plug-in and play

- lntelligent overlapping

-The operation of water pump is controlled by pressure sensor and flow switch

-Water shortage protection Water start-up

-Temperature protection

-Electrophoresis rust prevention


Performance Range


Voltage

Power (kw)

Max Flow (m³/h)

Max Head (m)

JWZBN

220V/50HZ

0.28-0.88

2-3.5

30-45

WZB-M

220V/50HZ

0.25-0.85

2-3.6

35-50

AWZBN

220V/50HZ

0.128-1.5

1.8-5.5

22-60


Operating conditions

The temperature of pumping liquid does not exceed 100 °℃ and the ambient temperature dose not exceed 40 °℃, and the maximum suction distance is 8 - 9m.

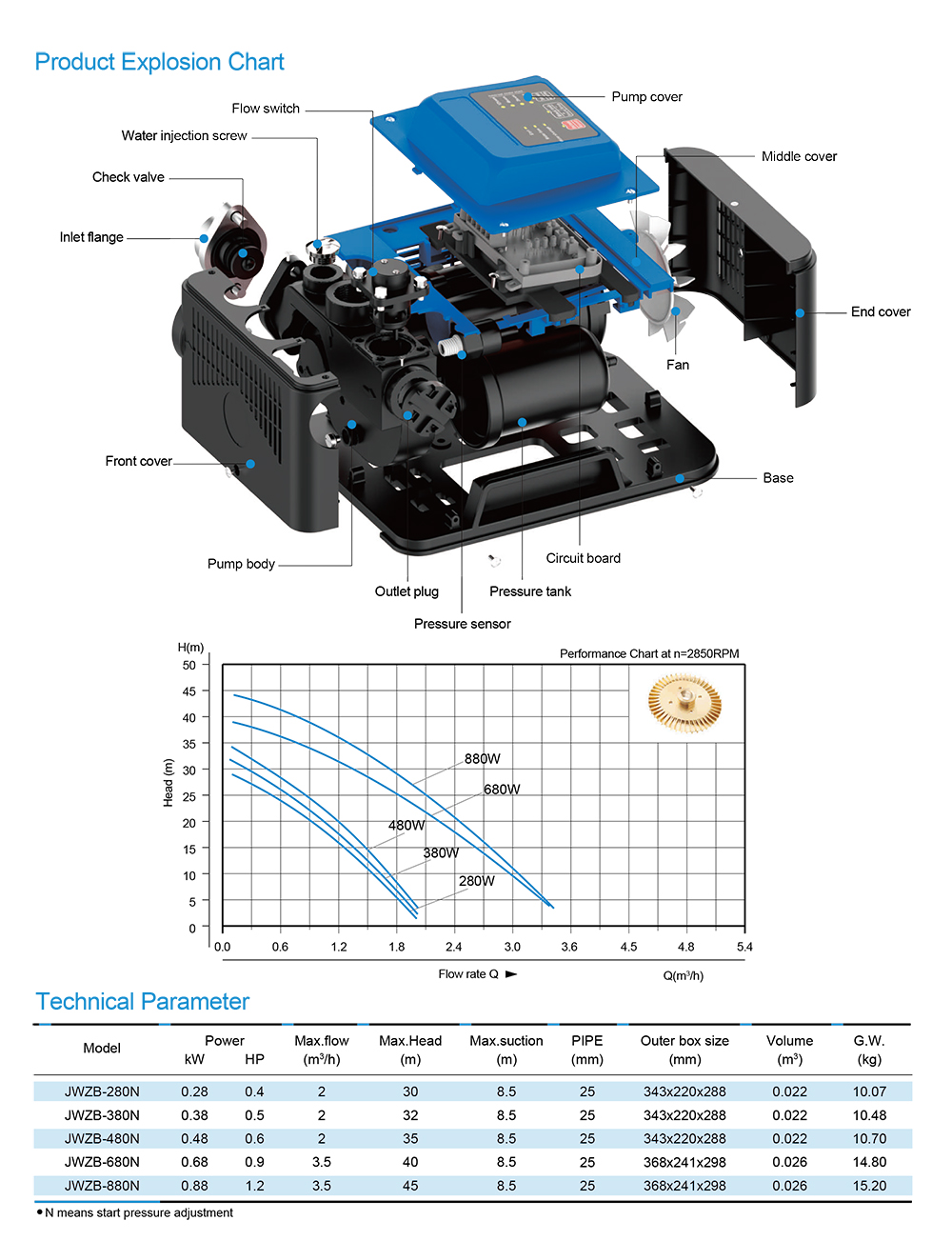

Technical Parameter

Pump body : Cast iron, 304 stainless steel inserts

Pump support : Cast iron, 304 stainless steel inserts

Motor housing : Aluminum

Impeller : Copper

Mechanical seal : Silicon carbide

Bearing : 6201(280W-480w) 6202(68OW-880W)


Motor

Electric pump speed: (n=2850r.p.m)

Insulation: Class F

Protection: IP44

Continuous service: S1

Thermal protector

Single-phase : 220V/50Hz, 60Hz if request


Catalogue
