Self-priming Pump

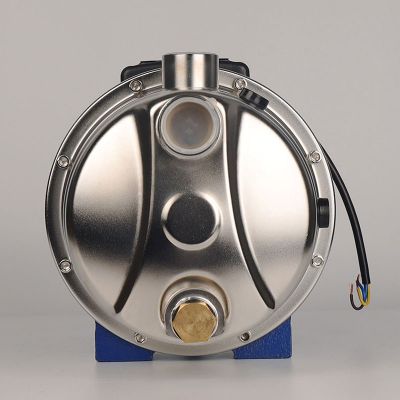

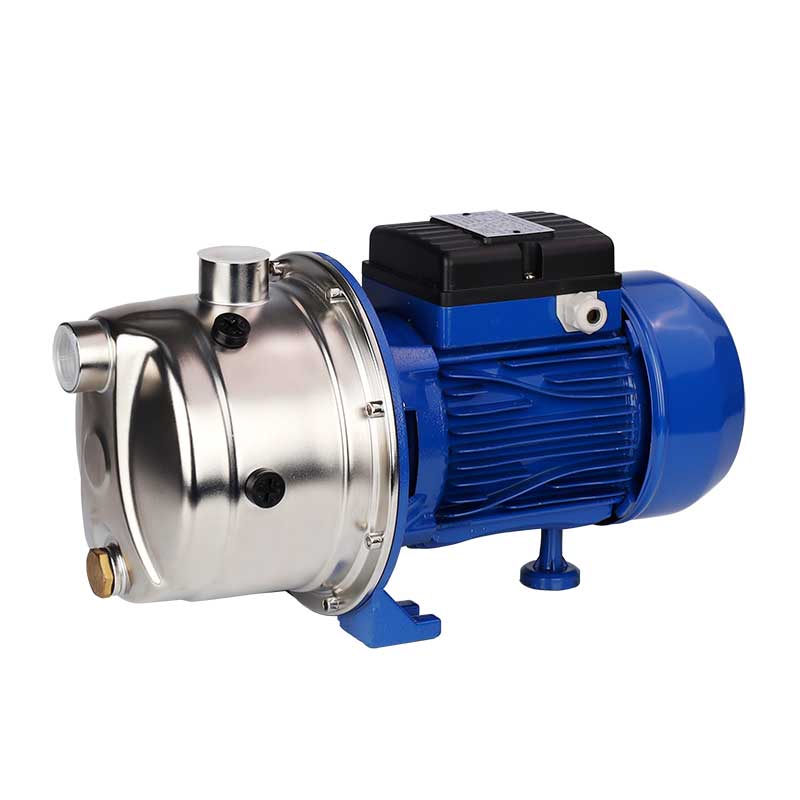

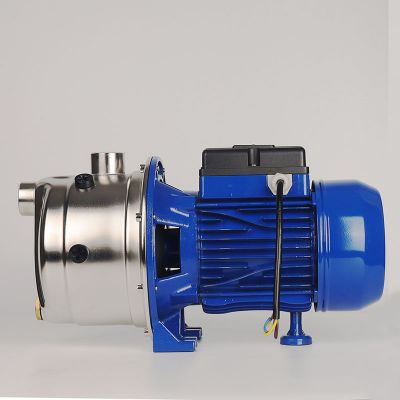

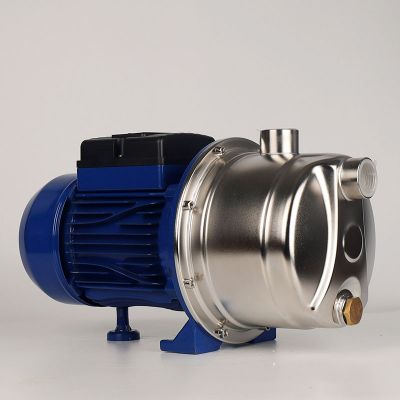

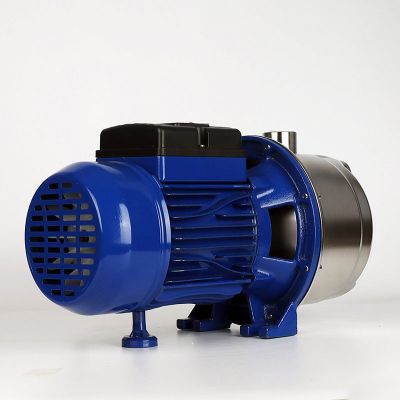

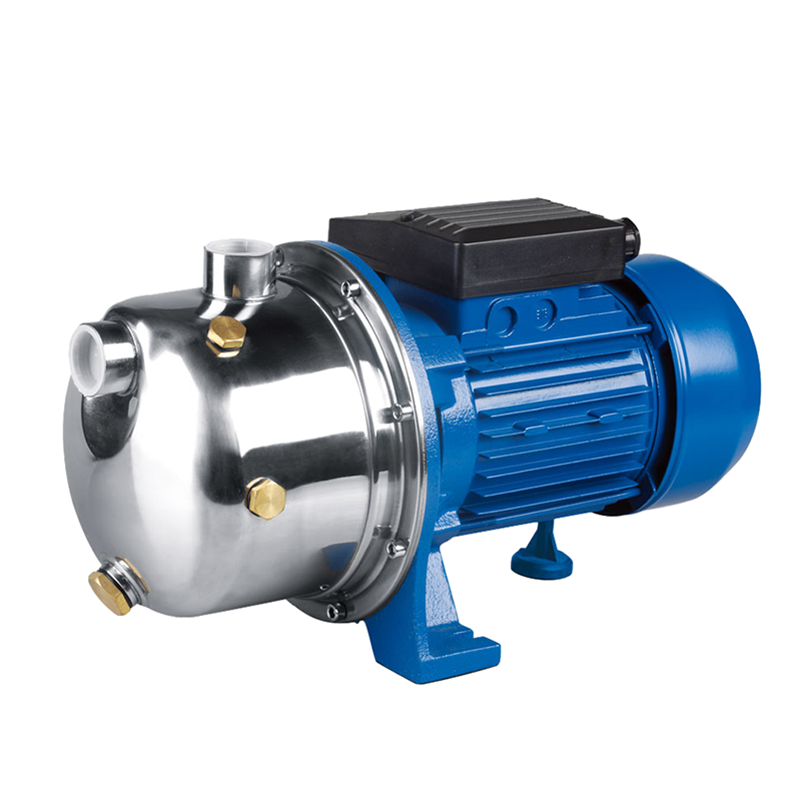

Stainless Steel JET Pump — SJETS

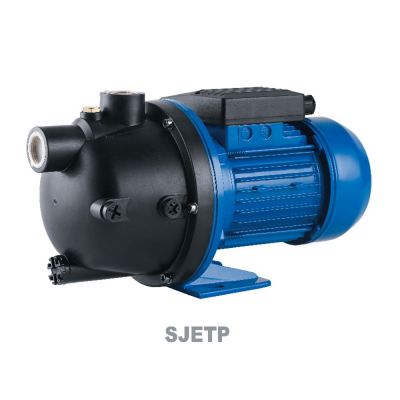

SJET(P/S)60:370 W,Q max.is 42 L/min, H max.is 38 m

SJET(P/S)80:550 W,Q max.is 46 L/min, H max.is 45 m

SJET(P/S)100:750 W,Q max.is 52 L/min, H max.is 50 m

Share:

Description

The SJET(P/S) series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, with stainless steel pump body and spare parts, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.

Pumps should be installed in a covered area, protected against the weather.

Features

.Stainless steel impeller

.Economical, reliable and safe

.Designed to pump water even in cases where air is present

Application

.Irrigation

.Washing systems

.Water supply systems

.Liquids transfer

.Pressure systems

Working Conditions

.Maximum ambient temperature up to +40℃

.Maximum fluid temperature up to 80℃

.Maximum pressure up to 10 bar

Construction Materials

.Pump body:stainless steel

.Motor housing:aluminum

.Motor:closed, externally ventilated

.Impeller:brass/stainless steel/PPO optional

.Insulation:B/F

.Duty:continuous rated

.Mechanical seal:steatite ceramic/metalized carbon

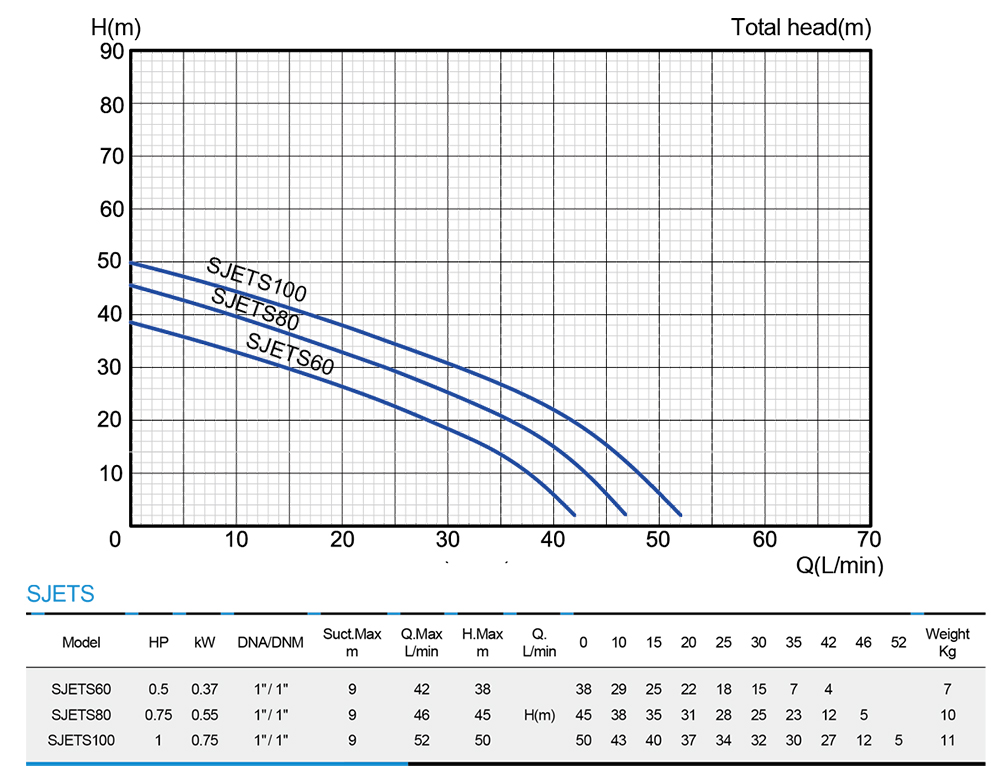

Performance Curve & Technical Data

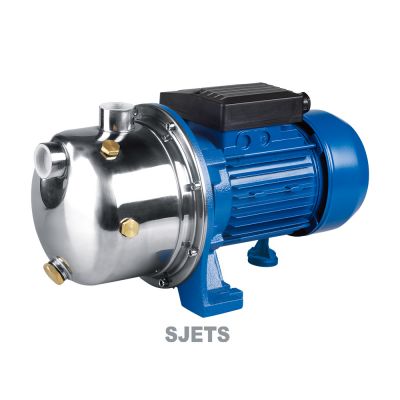

Stainless Steel JET Pump-SJETS

Stainless Steel JET Pump-SJETS
