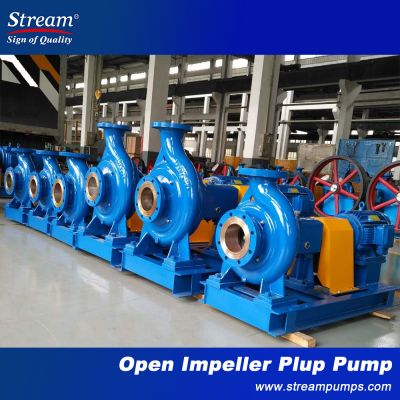

Open Impeller Pulp Pump——ESK

Share:

Description

ESK series open-impeller pulp pump is based on new technology,the pump is successfully design
Based on long-term technology accumulation and on the experience of domestic and overseas advanced technology.
The pump has a strong capacity to transport fibre,mud,the paper pulp below 5% consistency and other liquid with below 30% solid content.It can be used in those operating environments in the paper making,metallurgy,salt collecting,drainage and power plant,etc.

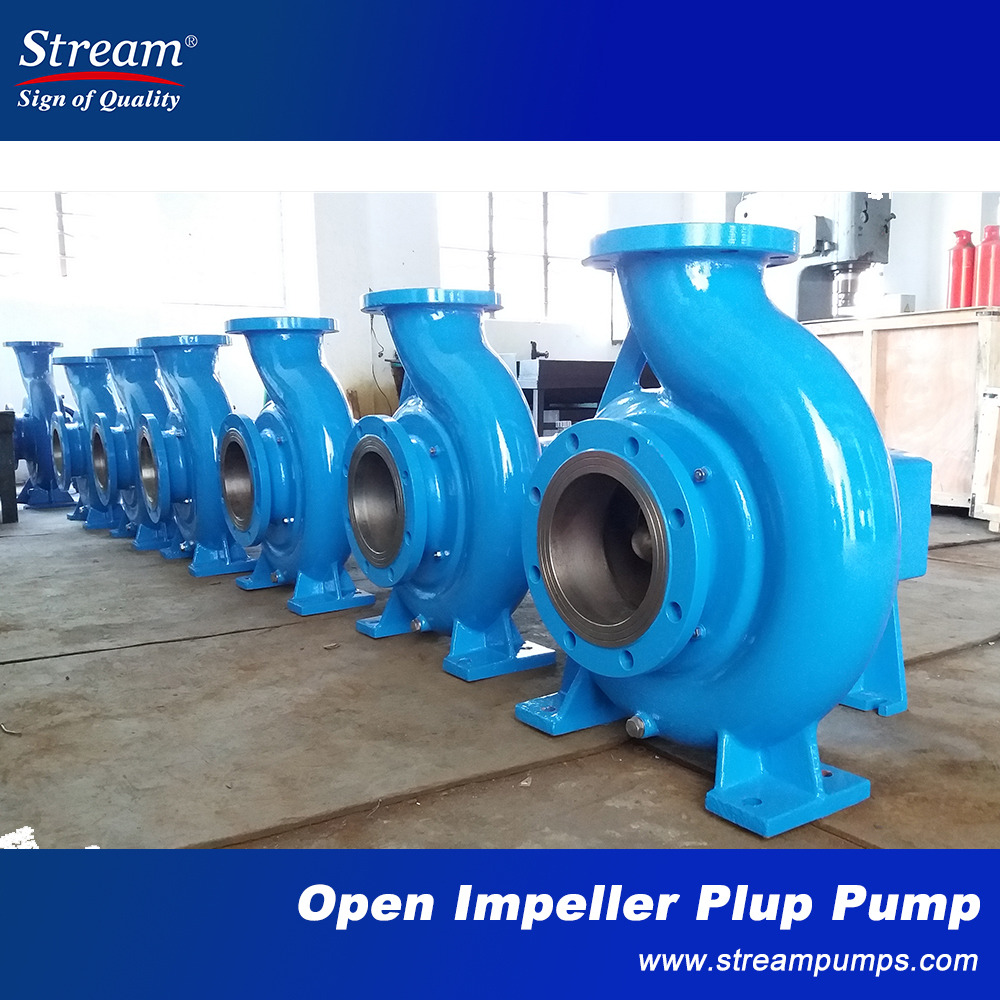

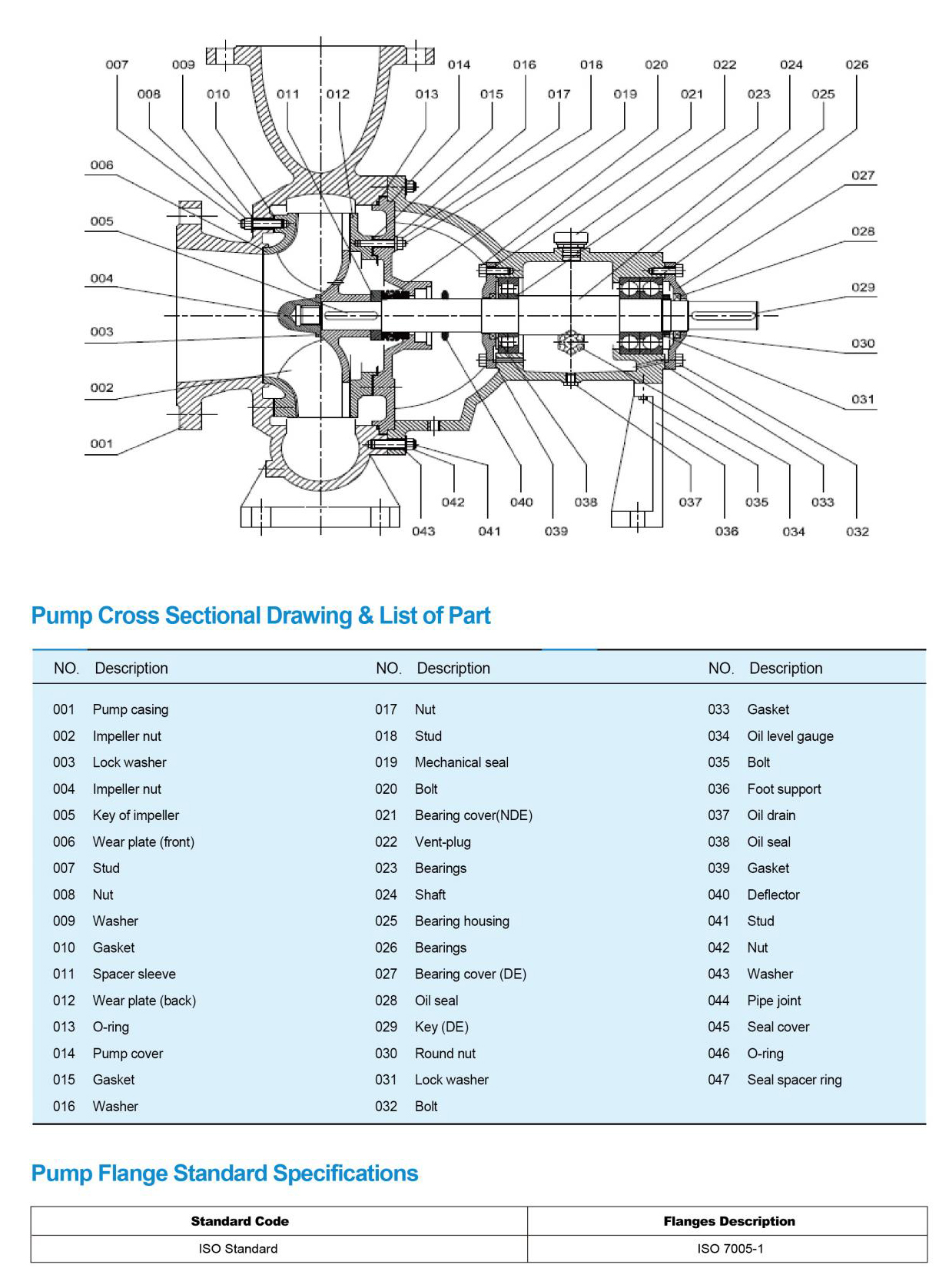

The casing is end suction and radial discharge design.Its discharge centerline and shaft are in the same vertical plane.the casing is directly fixed on the base plate.
The front wear plate and back wear plate be designed for stripped down structure.we can replace worn part when the inter spacer becomes large.

Operation Conditions

.Pulp consistency: ≤6%
.Solid content: ≤30%
.Max. viscosity: 300 cP, normal temperature 24℃
.Working temperature range: -20℃~120℃
(when working temperature exceeds 100℃, it should be clarified clearly and in advance)
.Max. allowable working pressure (MAWP): PN1.6 MPa

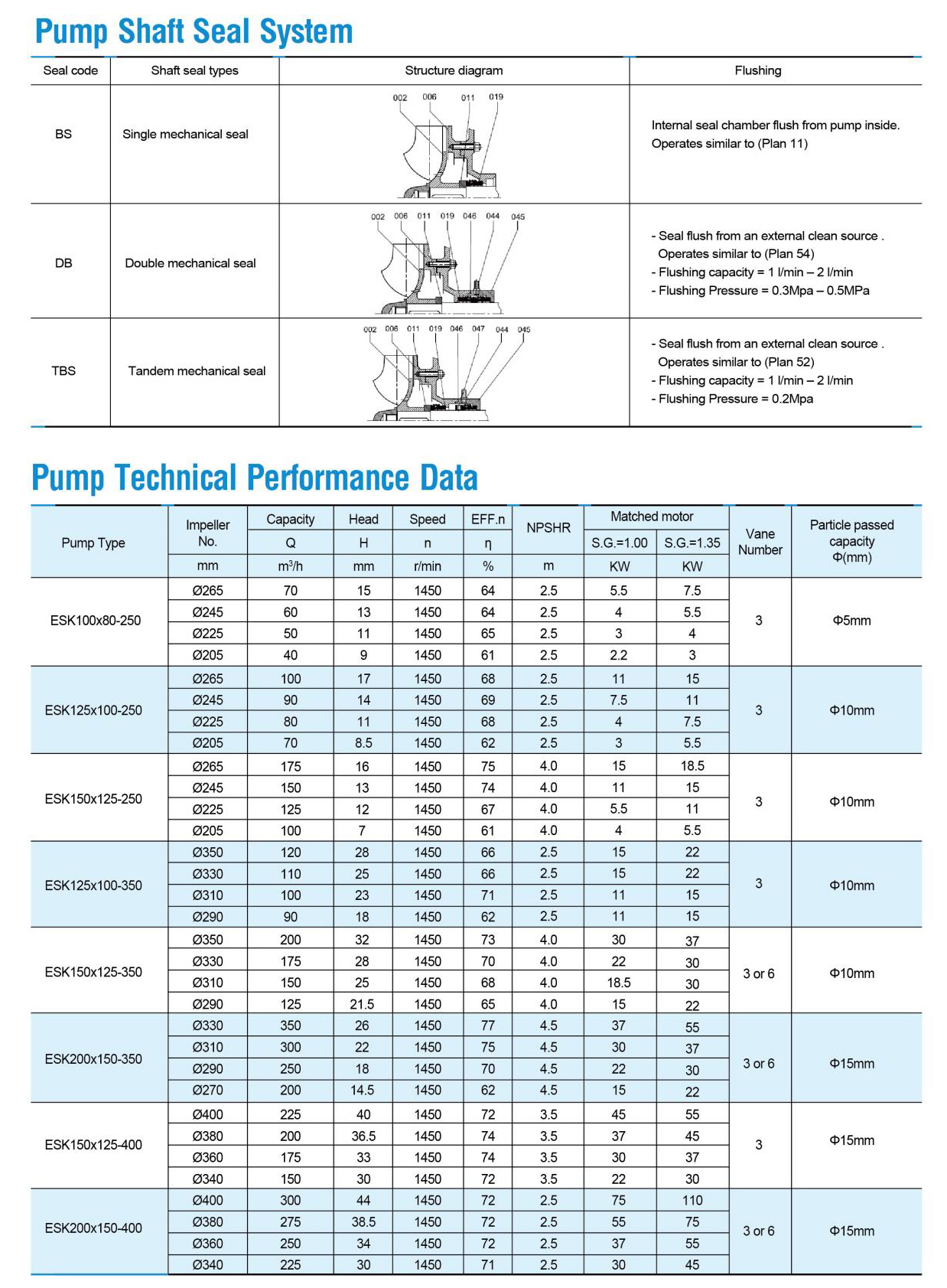

Specifications

.Pump inlet: DN100-DN500 mm
.Pump outlet: DN80-DN500 mm
.Capacity (Q) range: 20-2300 m³/h
.Head (H) range: 7-60 m
.Operating speed: 8P-750 rpm, 6P-980 rpm, 4P-1450 rpm, 2P-2900 rpm

The Direction of Rotation

.The rotation of the pump rotor is clockwise when looking from the motor to the pump

Application

.Soda and inorganic salts: ammonia salt blending, pure soda, soda manufactured by the ammonia soda process, caustic soda, chloride and hypochlorite, soda sulfide, sulfate, hydrogen peroxide, etc., manufactured by diaphragm process and ion exchange membrane process.
.Metallurgy: electrolyte of electrolytic copper and nickel, sodium aluminate liquor for aluminum production, ammonium vanadate for vanadium production, acid and thiocarbamide liquor for gold production, etc.
.Iron and steel industry: electroplating, scouring, electrophoretic painting, etc.
.Acid-making industry: hydrochloric acid, nitric acid, sulfuric acid, phosphoric acid, phosphoric acid pulp, acetic acid, etc.
.Petrochemical industry: petroleum refining, splitting, separation, butadiene, alkylbenzene, carbinol, etc.
.Paper-making industry: pulp digestion liquor, green liquor, white liquor, concentrated black liquor, bleaching liquor, etc.
.Chemical fertilizer industry: urea, ammonium nitrate, ammonium bicarbonate, ammonium chloride, ammonium phosphate, potassium chloride, potassium sulfate, etc.
.Fermentation industry: intermediates, lactic acid, citric acid, food additives, beer, various fermenting liquors, etc.
.Environmental protection: various chemical wastewaters containing acid and alkali, etc.

Open Impeller Pulp Pump——ESK

Open Impeller Pulp Pump——ESK

Open Impeller Pulp Pump——ESK

Open Impeller Pulp Pump——ESK

Open Impeller Pulp Pump——ESK
