Hydrosmart Series

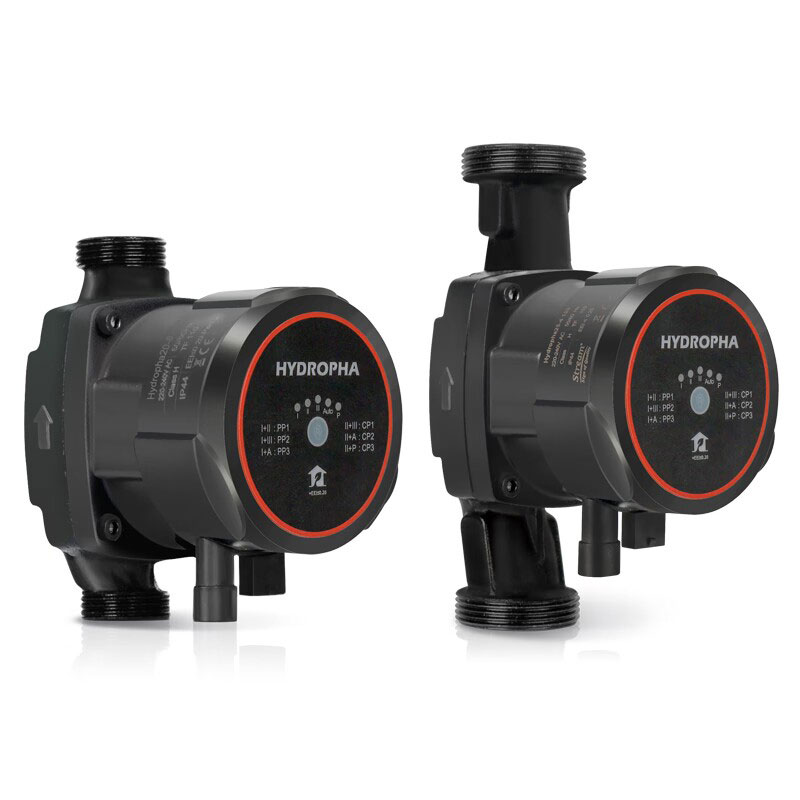

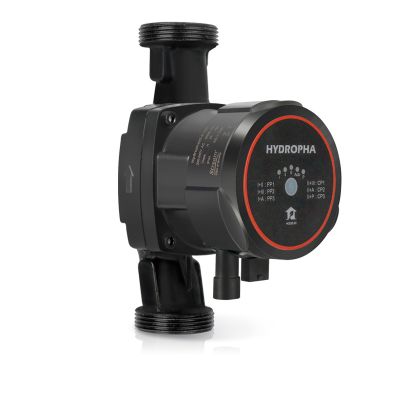

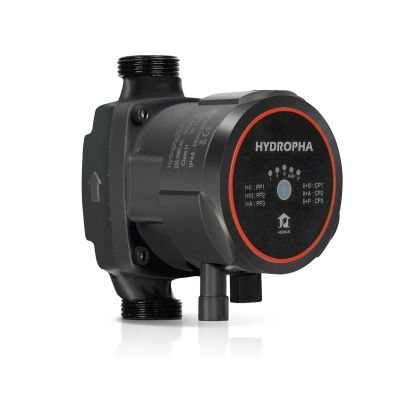

HYDROPHA-High Efficiency Circulator Pumps

High energy saving, great versatility to different system demands

Share:

Description

The HYDROPHA is a high efficiency circulator pump designed for low energy consumption and versatility to various system demands. It is built with ECM permanent magnet motor and internal sensor to detect the system changes and adjust the motor speed accordingly to satisfy the system demand.


Features&Benefits

-High Efficiency ECM Motor, at least 65% energy saving.

-Multiple Control Modes, one pump for all circulator needs.

-Interactive LED Control Panel, easy operation.

-Compact Design and Quick Plug-in, simple Installation.

-Multiple Protections, more reliability.

-Super Low Noise, high comfortability.


Working Range

-Motor Power:25~60W

-Voltage:220~240V

-Frequency:50/60Hz

-Flow Range:2.2~3.8m3/h

-Head Range:4~7.5m

-Connection Size:1",1-1/2",2"

-System Pressure:1.0Mpa

-Liquid Temp.:-30℃ ~110℃

-Ambient Temp.: 0℃ ~ 70℃

-Humidity:95%


Control Modes

Multiple Control Modes Available

AUTO ADAPTABLE MODE

PROPORTIONAL PRESSURE

CONSTANT PRESSURE

CONSTANT SPEED

HYDROPHA-High Efficiency Circulator Pumps


Application

Domestic hot water supply systems,

Domestic heating systems,

Air conditioning systems,

Solar thermal system,

Industrial hot water circulation systems, etc


If you want to know more about how the high efficiency circulator pump differs from the traditional fixed-speed pump, read the article here:What Is A High Efficiency Circulator Pump?
